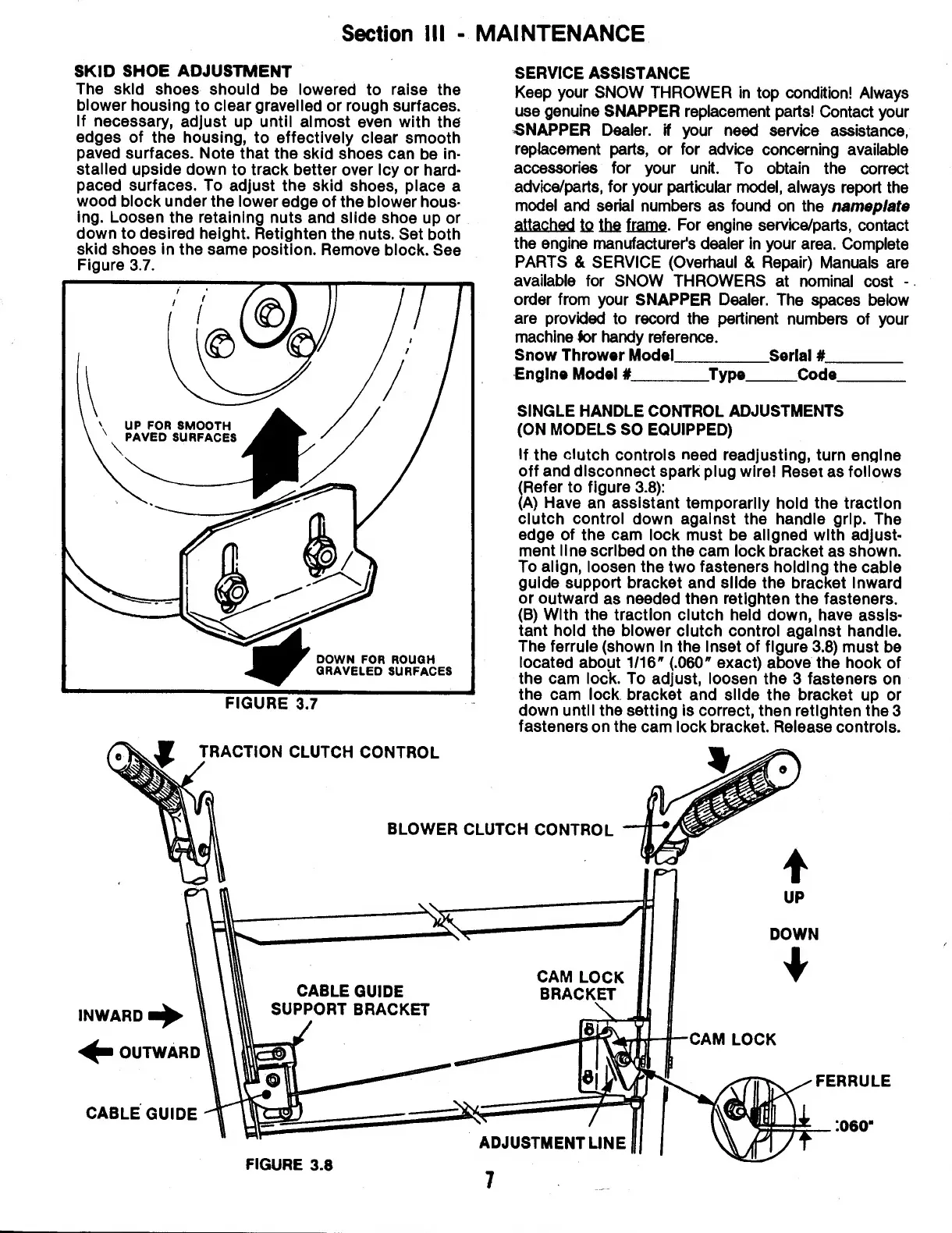

Section III - MAINTENANCE
SERVICE ASSISTANCE
Keep your SNOW THROWER in top condition! Always
use genuine SNAPPER replacement parts! Contact your
SNAPPER Dealer, if your need service assistance,
replacement parts, or for advice concerning available
accessories for your unit. To obtain the correct
advice/parts, for your particular nrKxJel, always report the
model and serial numbers as found on the nameplate
attached Jg lbs frame . For engine service/parts, contact
the engine manufacturer's dealer in your area. Complete
PARTS & SERVICE (Overhaul & Repair) Manuals are
available for SNOW THROWERS at nominal cost -
order from your SNAPPER Dealer. The spaces bebw
are provided to record the pertinent numbers of your
machine lor handy reference.
Snow Thrower Model_Serial #_
Engine Model #_^Type_Code_
SINGLE HANDLE CONTROL ADJUSTMENTS
(ON MODELS SO EQUIPPED)
If the clutch controls need readjusting, turn engine
off and disconnect spark plug wire! Reset as follows
(Refer to figure 3.8):
(A) Have an assistant temporarily hold the traction
clutch control down against the handle grip. The
edge of the cam lock must be aligned with adjust¬
ment line scribed on the cam lock bracket as shown.
To align, loosen the two fasteners holding the cable
guide support bracket and slide the bracket Inward
or outward as needed then retighten the fasteners.
(B) With the traction clutch held down, have assis¬
tant hold the blower clutch control against handle.
The ferrule (shown in the inset of figure 3.8) must be
located about 1/16" (.060" exact) above the hook of
the cam lock. To adjust, loosen the 3 fasteners on
the cam lock bracket and slide the bracket up or
down until the setting is correct, then retighten the 3
fasteners on the cam lock bracket. Release controls.
7
SKID SHOE ADJUSTMENT
The skid shoes should be lowered to raise the
blower housing to clear gravelled or rough surfaces.
If necessary, adjust up until almost even with the
edges of the housing, to effectively clear smooth
paved surfaces. Note that the skid shoes can be in¬
stalled upside down to track better over icy or hard¬
paced surfaces. To adjust the skid shoes, place a
wood block under the lower edge of the blower hous¬
ing. Loosen the retaining nuts and slide shoe up or
down to desired height. Retighten the nuts. Set both
skid shoes in the same position. Remove block. See
Figure 3.7.
FIGURE 3.7
FIGURE 3.8
