MAINTENANCE INSTRUCTIONS
TRACTION DRIVE BELT ADJUSTMENT Continued
Secure stationary idler with mounting bolt.
Place spark plug wire onto spark plug.
Set park brake.
Start Engine.
Visually inspect traction drive belt for movement.
When properly adjusted, the traction drive belt should not
have any movement or rotation with the engine running
and park brake engaged.
Should movement be present, readjust traction drive belt
to release belttension as described in previous instructions.
BLADE BELT ADJUSTMENT
Move tractor to a firm, level surface.
Turn engine "OFP.
Raise hood, remove spark plug wire from spark plug and
secure wire away from plug.
Move blade engagement lever down to "OFP. See Figure
60.
Lower deck to lowest cutting position
Check front to rear level.
CAUTION
If deck front to rear level is not correct,
this could cause blade belt problems.
30" & 33" DECKS
Measure length of blade cable extension spring. See
Figure 61.
Move blade engagement lever to "ON".
Measure blade cable extension spring. Spring should
extend 1" ±1/8" for proper belt tension. See Figure 61.

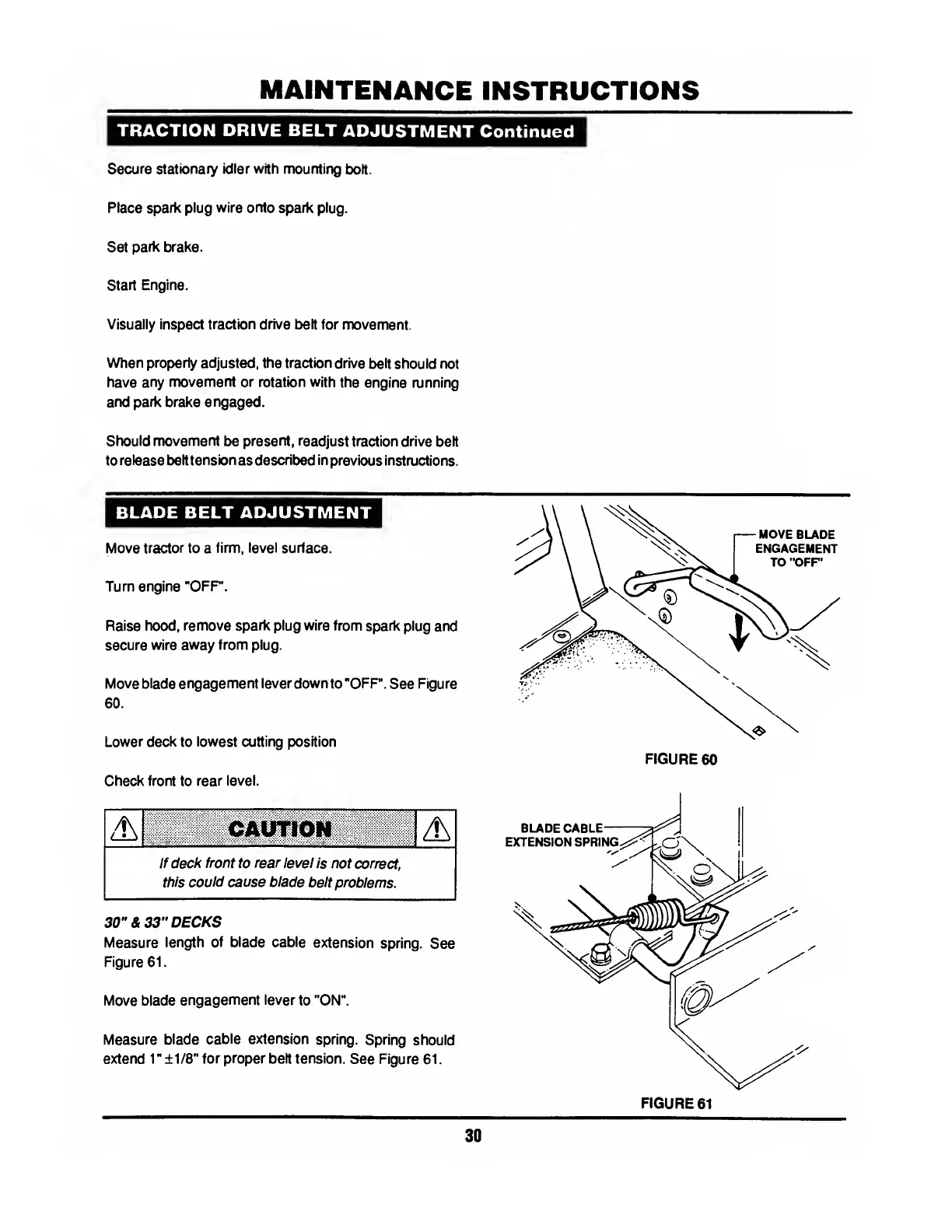

FIGURE 60
30
