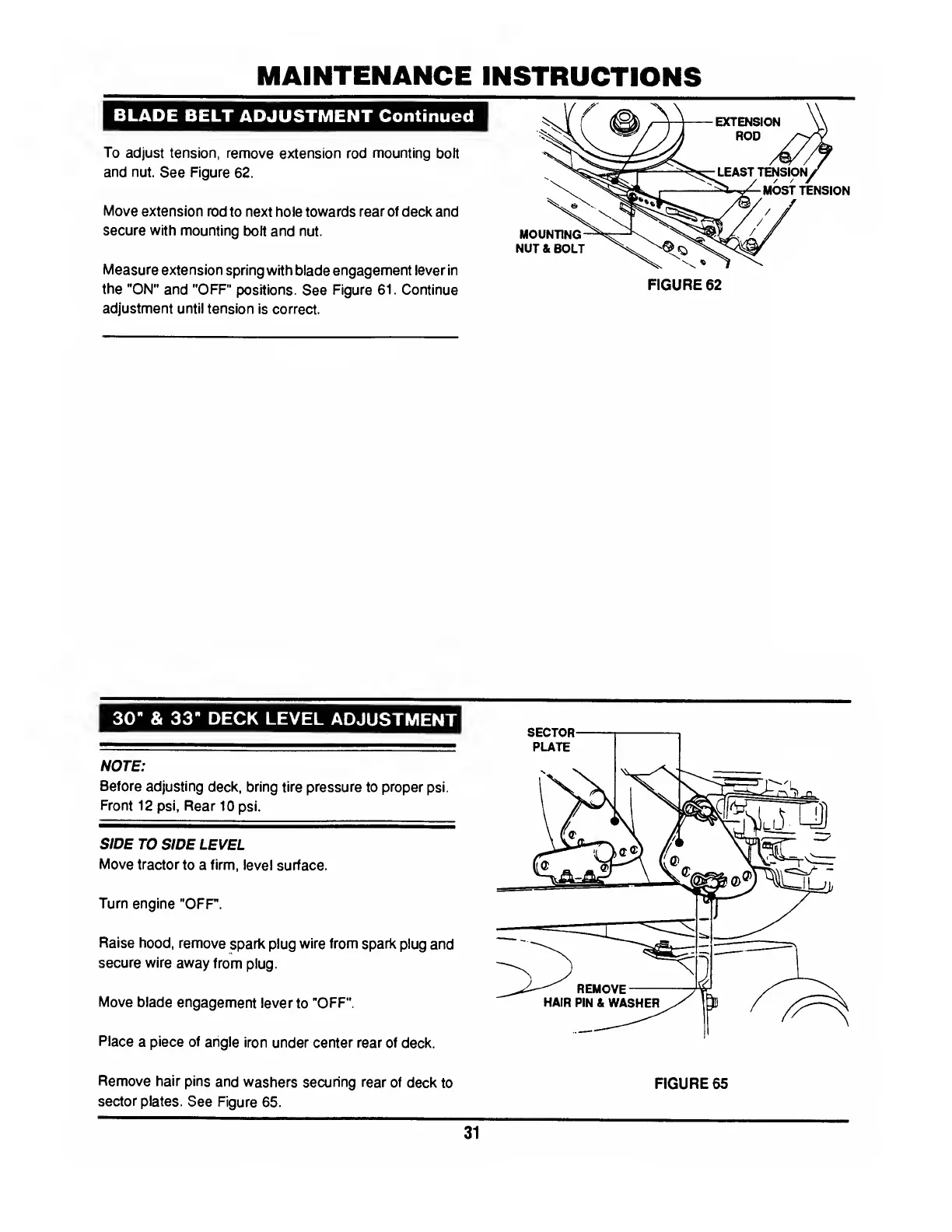

MAINTENANCE INSTRUCTIONS
BLADE BELT ADJUSTMENT Continued
To adjust tension, remove extension rod mounting bolt
and nut. See Figure 62.
Move extension rod to next hole towards rear of deck and
secure with mounting bolt and nut.
Measure extension spring with blade engagement lever in
the "ON" and "OFF” positions. See Figure 61. Continue
adjustment until tension is correct.
30" & 33" DECK LEVEL ADJUSTMENT
NOTE:
Before adjusting deck, bring tire pressure to proper psi.
Front 12 psi, Rear 10 psi.
SIDE TO SIDE LEVEL
Move tractor to a firm, level surface.
Turn engine "OFF".
Raise hood, remove spark plug wire from spark plug and
secure wire away from plug.
Move blade engagement lever to "OFF".
Place a piece of angle iron under center rear of deck.
Remove hair pins and washers securing rear of deck to
sector plates. See Figure 65.
31
