Snapper LT120G30DB User Manual

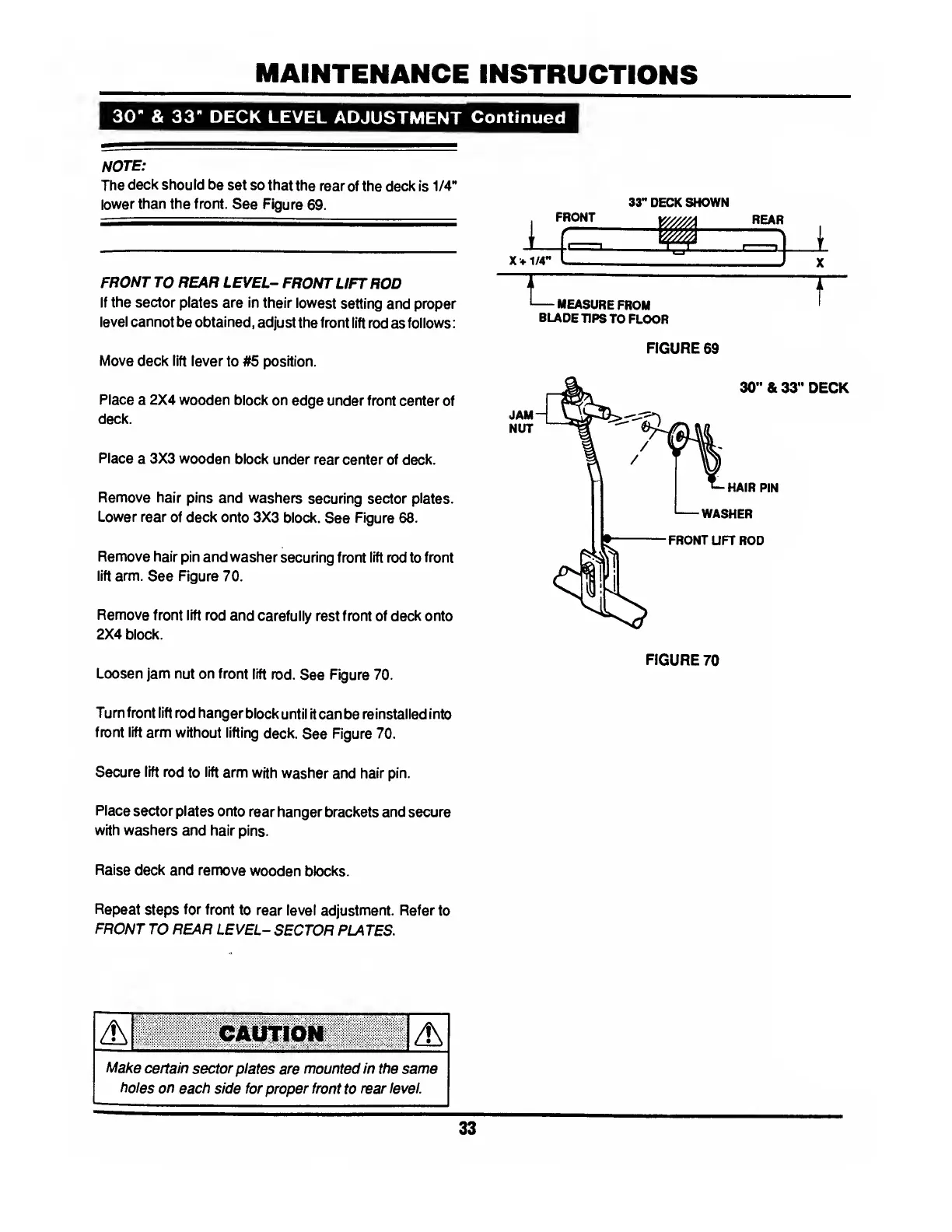

MAINTENANCE INSTRUCTIONS
30" & 33" DECK LEVEL ADJUSTMENT Continued
NOTE:
The deck should be set so that the rear of the deck is 1/4"
lower than the front. See Figure 69.
FRONT TO REAR LEVEL- FRONT LIFT ROD
If the sector plates are in their lowest setting and proper
level cannot be obtained, adjust the front lift rod as follows:
Move deck lift lever to #5 position.
Place a 2X4 wooden block on edge under front center of
deck.
Place a 3X3 wooden block under rear center of deck.
Remove hair pins and washers securing sector plates.
Lower rear of deck onto 3X3 block. See Figure 68.
Remove hair pin and washer securing front lift rod to front
lift arm. See Figure 70.
Remove front lift rod and carefully rest front of deck onto
2X4 block.
Loosen jam nut on front lift rod. See Figure 70.
Turn front lift rod hanger block until it can be reinstalled into
front lift arm without lifting deck. See Figure 70.
Secure lift rod to lift arm with washer and hair pin.
Place sector plates onto rear hanger brackets and secure
with washers and hair pins.
Raise deck and remove wooden blocks.
Repeat steps for front to rear level adjustment. Refer to
FRONT TO REAR LEVEL- SECTOR PLATES.
33" DECK SHOWN
FIGURE 69
A
CAUTION
&
Make certain sector plates are mounted in the same
holes on each side for proper front to rear level.
33
