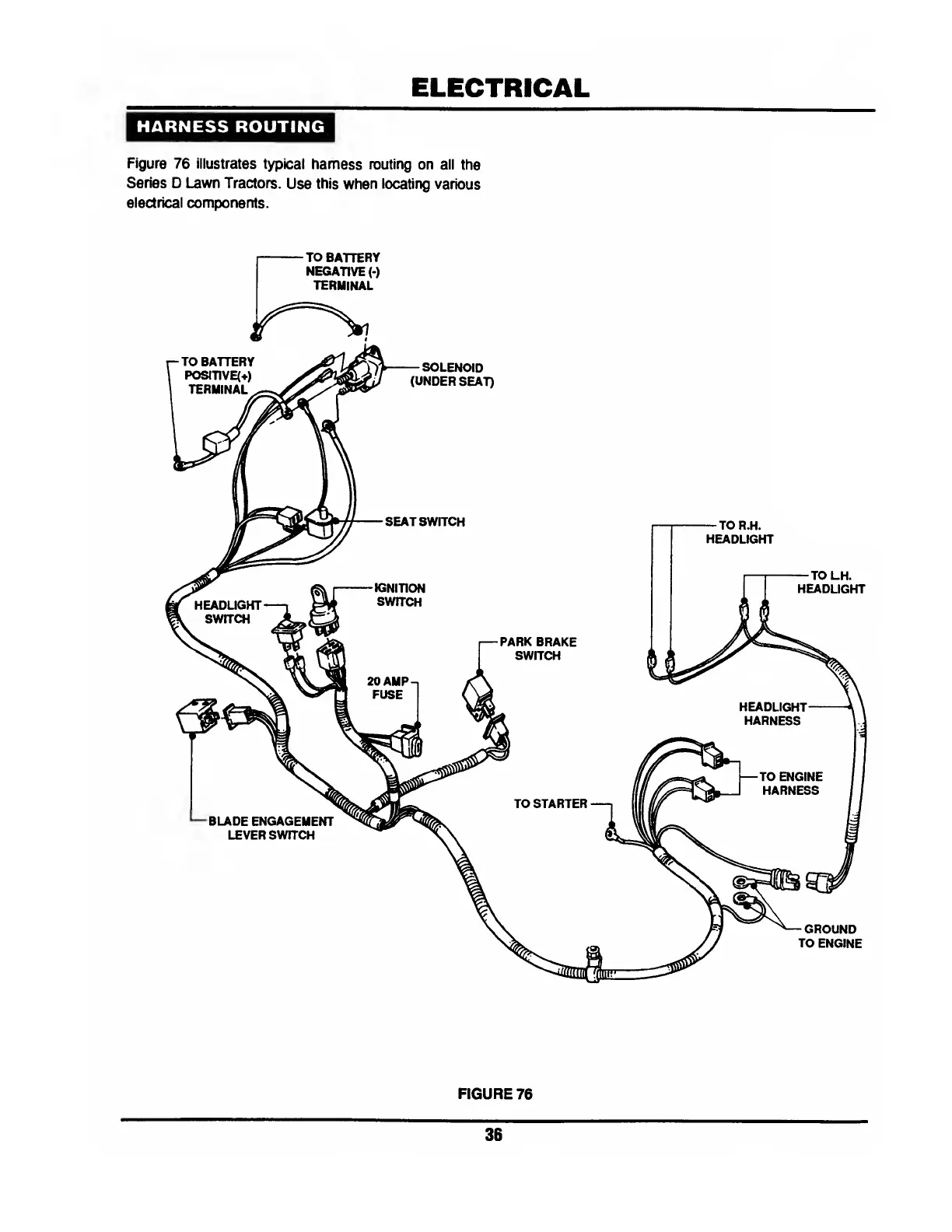

ELECTRICAL
HARNESS
ROUTING
Figure
76
illustrates
typical
harness
routing
on
all
the
Series
0
Lawn
Tractors.
Use
this
when
locating
various
electrical
components.
TO
BATTERY
NEGATIVE
(•)
TERMINAL
TO
R.H.
HEADLIGHT
TO
L.H.
HEADLIGHT
GROUND
TO
ENGINE
FIGURE
76
38
40
