Assembling the Grass Bag
Note: On some models, the side mounted discharge
deflector is temporarily attached (for shipping pur-
poses) to the rear of the mower. Before assembly of
the grass bag, remove the side mounted discharge
deflector.

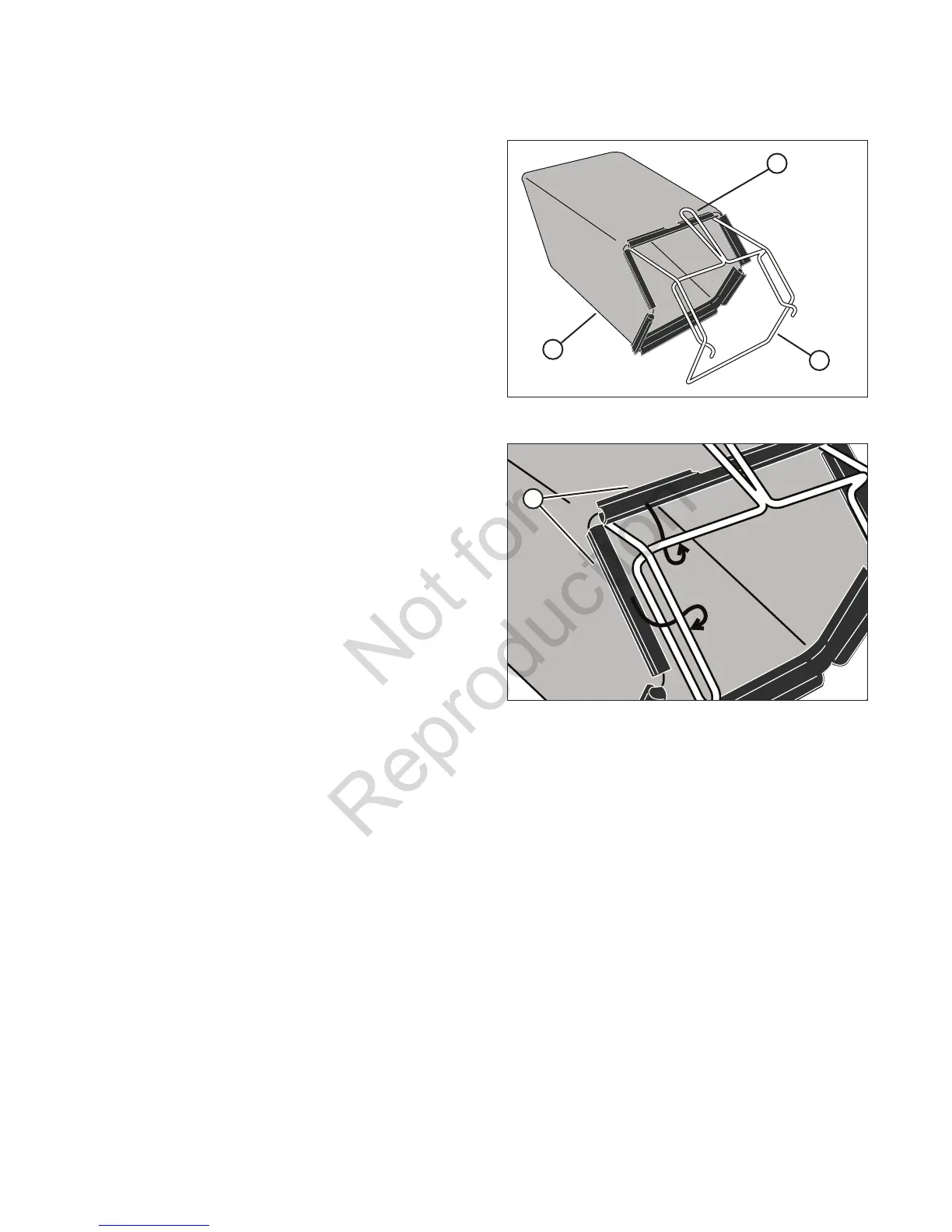

1. Slide the frame assembly (A, Figure 6) into the
grass bag (B). Make sure the handle (C) is on the
outside of the grass bag.
2. First, attach the clips (A, Figure 7) to the side of
the frame assembly. Next, attach the clips to the
top and bottom of the frame assembly.
C
Figure 6: Installing the frame assembly
A
B
Figure 7: Installing the bag clips
A
