28
Regular Maintenance
(2014523388 & Above)
To Reduce the Speed of the Faster Wheel:
There are three (3) nuts (A, Figure 25) on the linkage rod
(B). The first two are to be used together to turn the rod and
the third is used to lock the rod in place.
1. Loosen the jam nut that locks against the clevis.
2. Turn the linkage rod COUNTER-CLOCKWISE to reduce
the speed.
3. Retighten the jam nut when adjustment is complete.

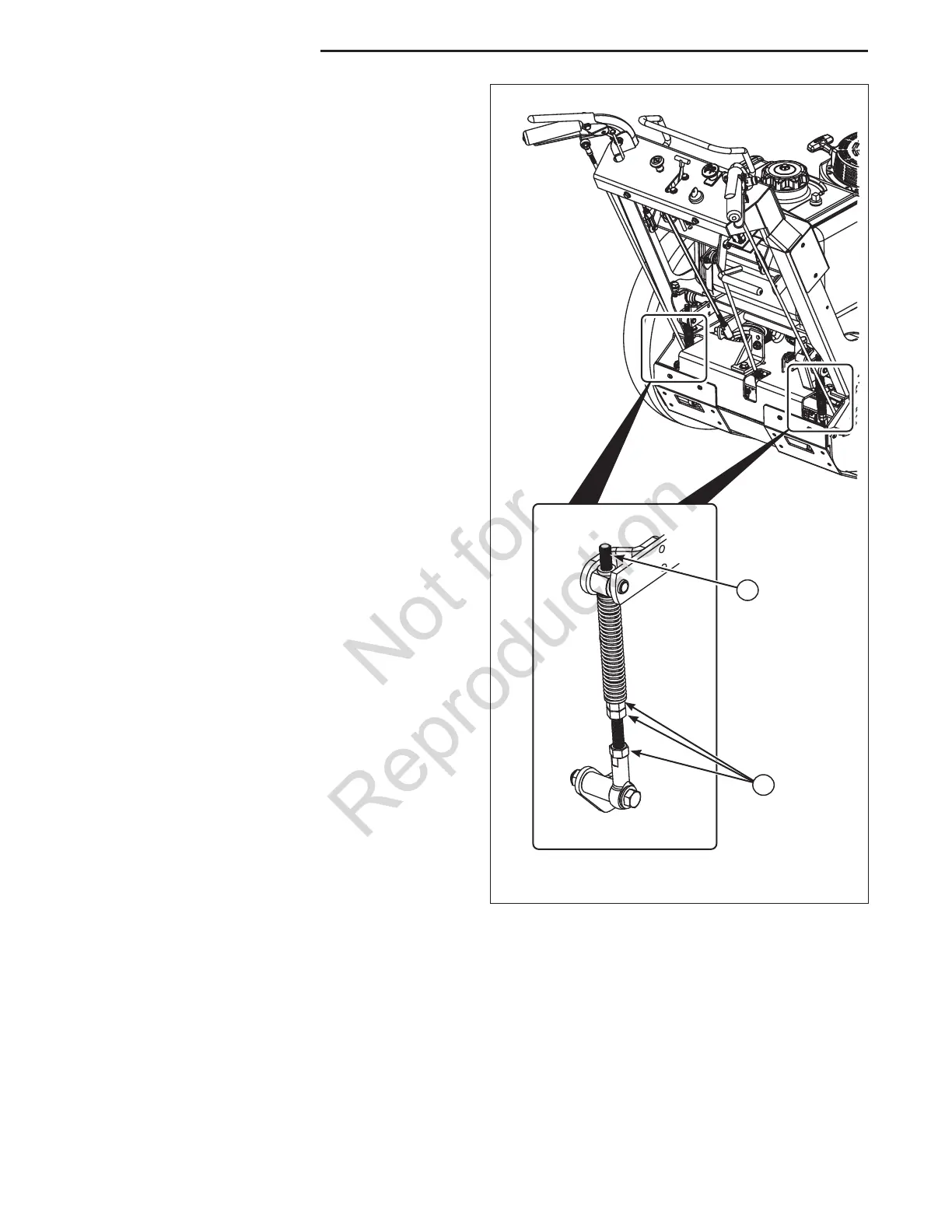

Figure 25. Adjusting the Speed of the Faster
Wheel
A. Nuts
B. Adjustment Linkage Rod
B
A
To Next Page
