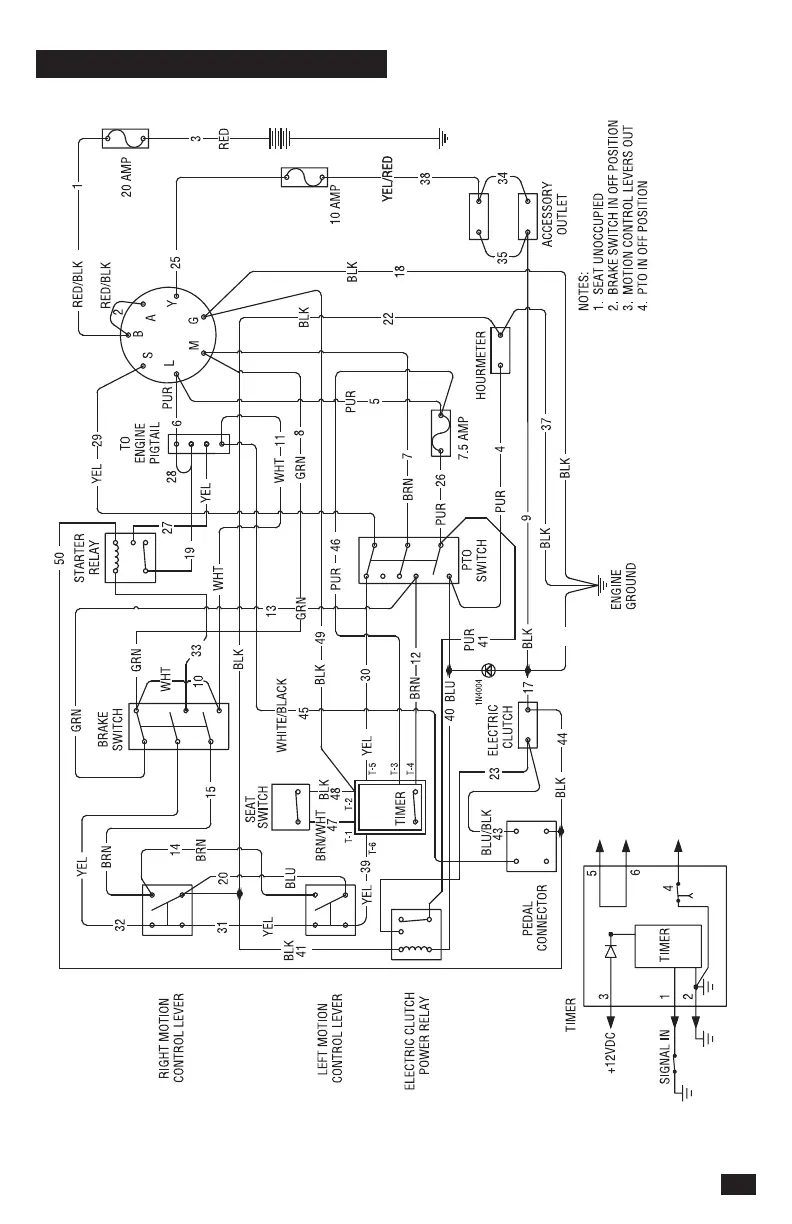

CONNECTOR WIRE/COLOR LOCATION:
1. SEAT INPUT - BROWN/WHITE
2. GROUND - BLACK
3. INGITION POWER - VIOLET
4. MAGNETO - BROWN
5. START INPUT - YELLOW
6. START OUTPUT - YELLOW
31
SCHEMATIC
