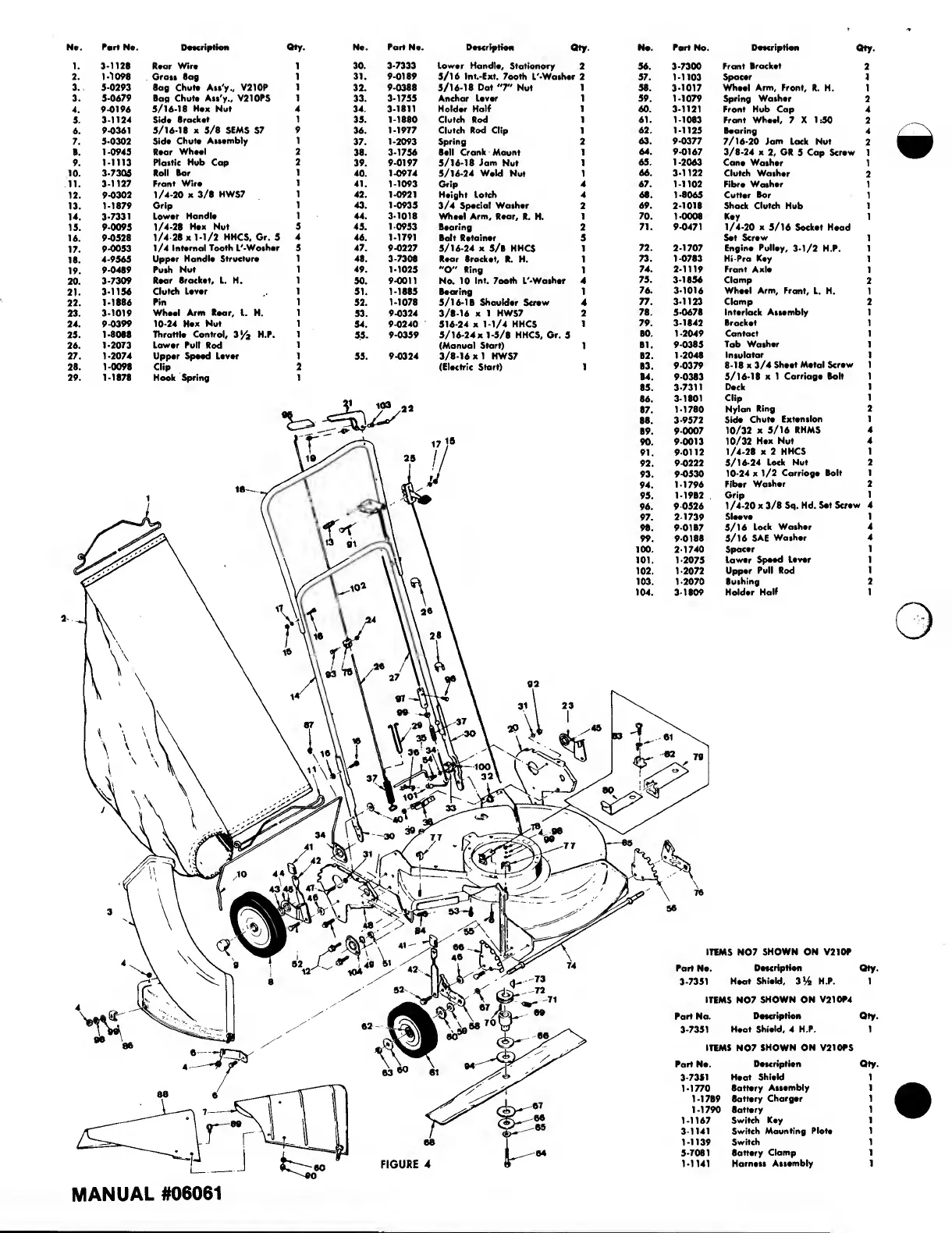

Snapper VI80 - Page 9

No.
Part No. Description
Qty.
Ne.
Part No.
Description
CHy. No. Part No.
Description
Qty.
1.
3-1128
Rear Wire
1
30. 3-7333 Lower Handle, Stationary
2
56. 3-7300
Front Bracket
2
2.
1-1098 Grass Bag 1
31. 9-0189
5/16 Int.-Ext. Tooth L'-Wather 2
57.
1-1103
Spacer
1
3. 5-0293 Bag Chut* Ass'y., V210P 1
32. 9-0388
5/16-18 Dot "T" Nut
1
58. 3-1017
Wheel Arm, Front, R. H.
1
3.
5-0679
Bag Chut* Ass'y., V210PS 1 33. 3-1755 Anchor Lever
1
59.
1-1079
Spring Washer
2
4. 9-0196
5/16-18 Hex Nut
4 34.
3-1811
Holder Half
1
60. 3-1121
Front Hub Cap
4
5.
3-1124 Sid* Bracket 1 35. 1-1880 Clutch Rod
1 61.
1-1083
Front Wheel, 7 X 1:50
2
6.
9-0361
5/16-18 x 5/8 SEMS ST
9
36.
1-1977 Clutch Rod Clip
V
62. 1-1125
Bearing 4
7. 5-0302
Sid* Chute Assembly 1
37. 1-2093
Spring
2
63. 9-0377
7/16-30 Jam Lock Nut
2
8 .
1-0945
Rear Wheel
2
38.
3-1756 Bell Crank Mount
1
64.
9-0167
3/8-24 x 2, GR 5 Cop Scrow
1
9.
1-1113
Plastic Hub Cap
2
39. 9-0197
5/16-18 Jam Nut 1
65.
1-2063
Cone Washer
1
10.
3-7305
Roll Bar
1
40. 1-0974 5/16-24 Weld Nut
1
66. 3*1122
Clutch Washer
2
it.
3-1127 Front Wire
1
41. 1-1093 Grip
4 67.
1-1102
Fibre Washer
1
12.
9-0302
1/4-20 x 3/8 HWST 1 42. 1-0921
Height Latch 4
68. 1-8065 Cutter Bar
1
13. 1-1879
Grip 1
43.
1-0935
3/4 Special Washer 2 69.
2-1018
Shock Clutch Hub
1
14.
3-7331
Lower Handle 1
44.
3*1018
Wheel Arm, Rear, R. H. 1 70. 1*0008 Key
1
15.
9-0095
1/4-28 Hex Nut
5
45. 1 0953 Bearing
2
71. 9-0471
1/4-20 x 3/16 Sockot Hoad
16.
9-0523
1/4 28 x M/2 HHCS, Gr. 5
4
46.
1-1791
Bolt Retainer
5
Set Screw
1
17.
9-0053
1/4 Internal Tooth L'-Washer 5
47.
9-0227
5/16-24 x 5/8 HHCS 1
72.
2-1707 Engine Pulley, 3-1/2 H.P.
1
18.
4-9565
Upper Handle Structure 1 48. 3-7308 Rear Brocket, R. H.
l
73. 1-0783 Hi-Pro Key
1
19.
9-0489 Push Nut t
49.
1*1025 "O" Ring
1
74.
2-1119
Front Axle
1
20.
3-7309
Rear Bracket, L. H.
1
50. 9-0011 No. 10 Int. Tooth L'-Washer 4
75.
3-1856
Clamp
2
21.
3*1156
Clutch Lever
1
51.
1-1885
Bearing 1
76. 3-1016
Wheel Arm, Front, L. H.
1
22.
1-1886 Pin 1
52. 1-1078 5/16-18 Shoulder Screw 4
77.
3-1123 Clamp 2
23.
3-1019
Wheel Arm Rear, L. H.
1
53. 9-0324 3/8-16 x 1 HWST 2
78. 5-0678 Interlock Assembly 1
24. 9-0399
10*24 Hex Nut
1 54.
9-0240 516-24 x 1-1/4 HHCS
1
79. 3-1842
Brocket
1
25.
1-8088
Throttle Control, 3 /z H.P. 1
55.
9-0359
5/16-24 x 1-5/8 HHCS, Gr. 5
80. 1-2049
Contact
1
26. 1*2073
Lower Pull Rod
1
(Manual Start)
1
81. 9-0385
Tab Washer
1
27.
1*2074
Upper Speed Lever
55.
9*0324 3/8-16 x 1 HWST
82.
1-2048
Insulator
1
28. 1-0098
Clip 2
(Electric Start)
1
83.
9-0379
8-18 x 3/4 Sheet Metol Screw 1
29.
1-1878 Hook Spring 1
84.
9-0383
5/16-18 x 1 Carriage Bolt 1
85.
3-7311
Deck
1
MANUAL #06061
