Machine Preparation
Section
2.1
2-1A38E Work Platform
2.1 Preparation for use
Read, understand and follow all operating
instructions before attempting to operate the
machine.
2.2 Preparation for Shipment
1. Lubricate machine per lubrication instructions in
Section 4.4, Maintenance.
2. Fully lower the platform and make sure the
machine is stowed securely.
3. Check that the hydraulic oil level is adequate
and that it is not over filled.
Check that the batteries are charged and disconnect
the batteries usin
g the Battery Disconnect Plug.
This prevents excessive power drain prior to next
using the machine.
2.3 Forklifting the Work Platform
The A38E is not designed to be consistently
forklifted. This operation can be used for very
short distances only.
Forklift from the side by lifting under the chassis
modules as per Figure 2-1. When lifting the A38E
with a forklift, great care should be taken not to
damage the right or left hand modules as these
contain sensitive equipment.
2.4 Lifting the Work Platform
See specifications (Section 1.2) for the
weight of the work platform and be certain
tha
t lifting apparatus is of adequate capacity
to lift the platform.
The A38E may be lifted by an overhead hoist/crane in
the following manner:
Four lifting straps capable of safely supporting the
total weight of the A38E ( (3,770 Kg /7,430 lbs CE
Version & 4,010 Kg /8,840 lbs ANSI Version) and at
least 250 cm (8 ft.) long are required. This minimum
length is important to ensure the correct lifting an
gle.
The straps should be positioned at the Lifting/Tie
Down Lugs as shown in Figure 2-1. Great care must
be taken to avoid damage to any of the components
of the machine.
2.5 Transport by Truck
The A38E is normally carried upon a suitably rated
transportation vehicle. Because of the high
gradeability of the A38E it will be capable of driving
directly on to most vehicles. If however the loading
slope is greater than the gradeability or the batteries
have been depleted sufficiently a winch sho
uld be
used. The procedure when using a winch is to
disengage the gearbox from the drive wheels using
the Allen key release, and then winch the machine on
to the vehicle in its freewheel state.
Refer to Section 2.6 which follows.

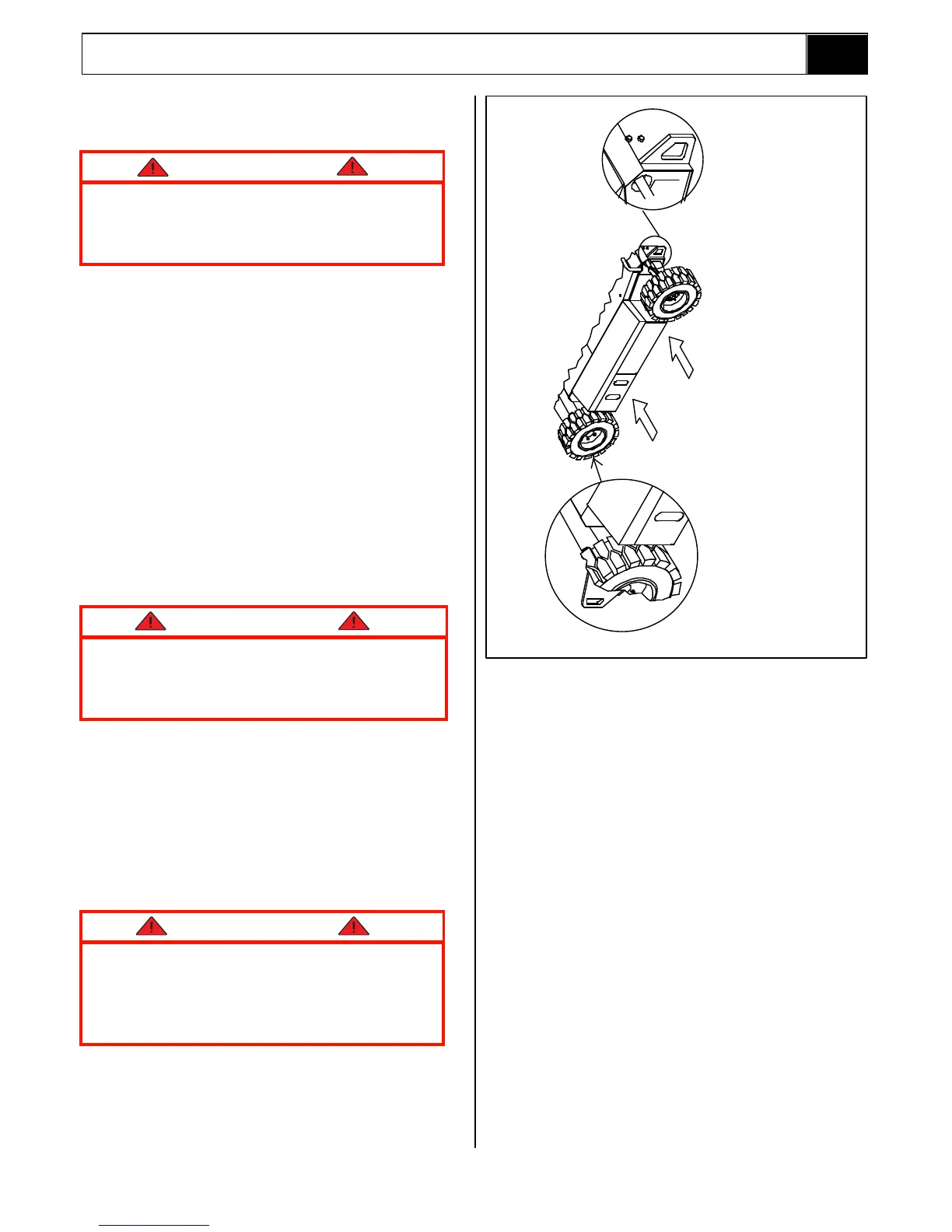

Figure 2-1: Forklifting & Lifting the A38E
Front Lifting /
Tie-down Lug
Rear Lifting /
Tie-down Lug
FORKLIFT
HERE
CAUTION
CAUTION
CAUTION
