Snorkel A38E - Page 43

Maintenance
Section
4-11A38E Work Platform

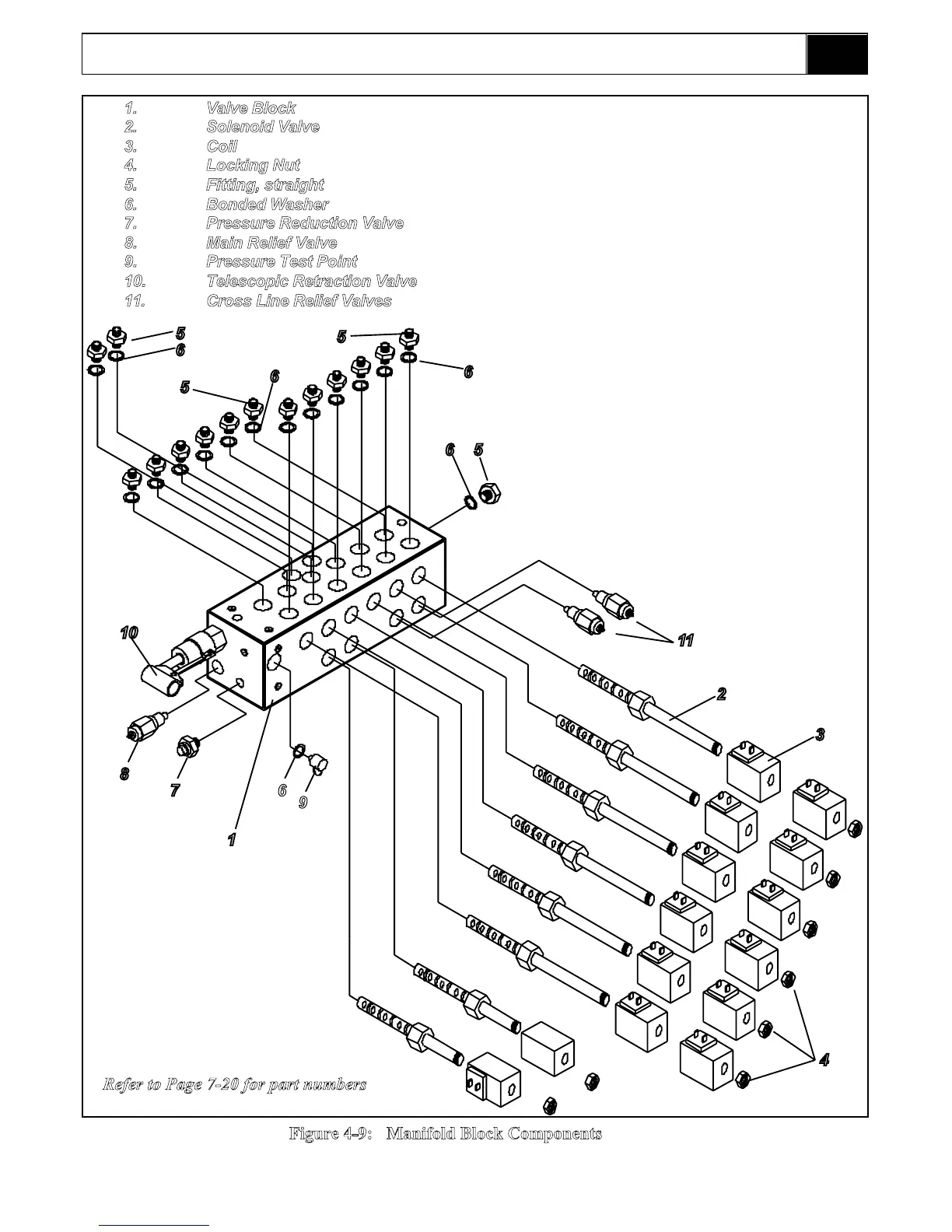

Figure 4-9: Manifold Block Components
1. Valve Block
2. Solenoid Valve
3. Coil
4. Locking Nut
5. Fitting, straight
6. Bonded Washer
7. Pressure Reduction Valve
8. Main Relief Valve
9. Pressure Test Point
10. Telescopic Retraction Valve
11. Cross Line Relief Valves
4.8
Refer to Page 7-20 for part numbers
1
2
3
4
5
6
6
5
5
6
56
9
67
8
10
11
