Snorkel SL26-01 Series Parts And Service Manual

Page 6 - 35SL26/30SL
ILLUSTRATED PARTS LIST
STEER, AXLE FLOAT & TILT CYLINDER
ITEM PART DESCRIPTION QTY
1 063905-010 Seal kit - steer cylinder 1
2 064345-010 Seal kit - tilt cylinder 1
3 064346-010 Seal kit - axle oat cylinder 1
ITEM PART DESCRIPTION
1 063905-101 Steer cylinder
2 064345-100 Tilt cylinder
3 064346-100 Axle oat cylinder
Table 6-24: SL26/30SL - Seal kit for steer, tilt & axle oat cylinder respectively
Table 6-25: SL26/30SL - Steer, tilt & axle oat cylinder identication number
1
2
3

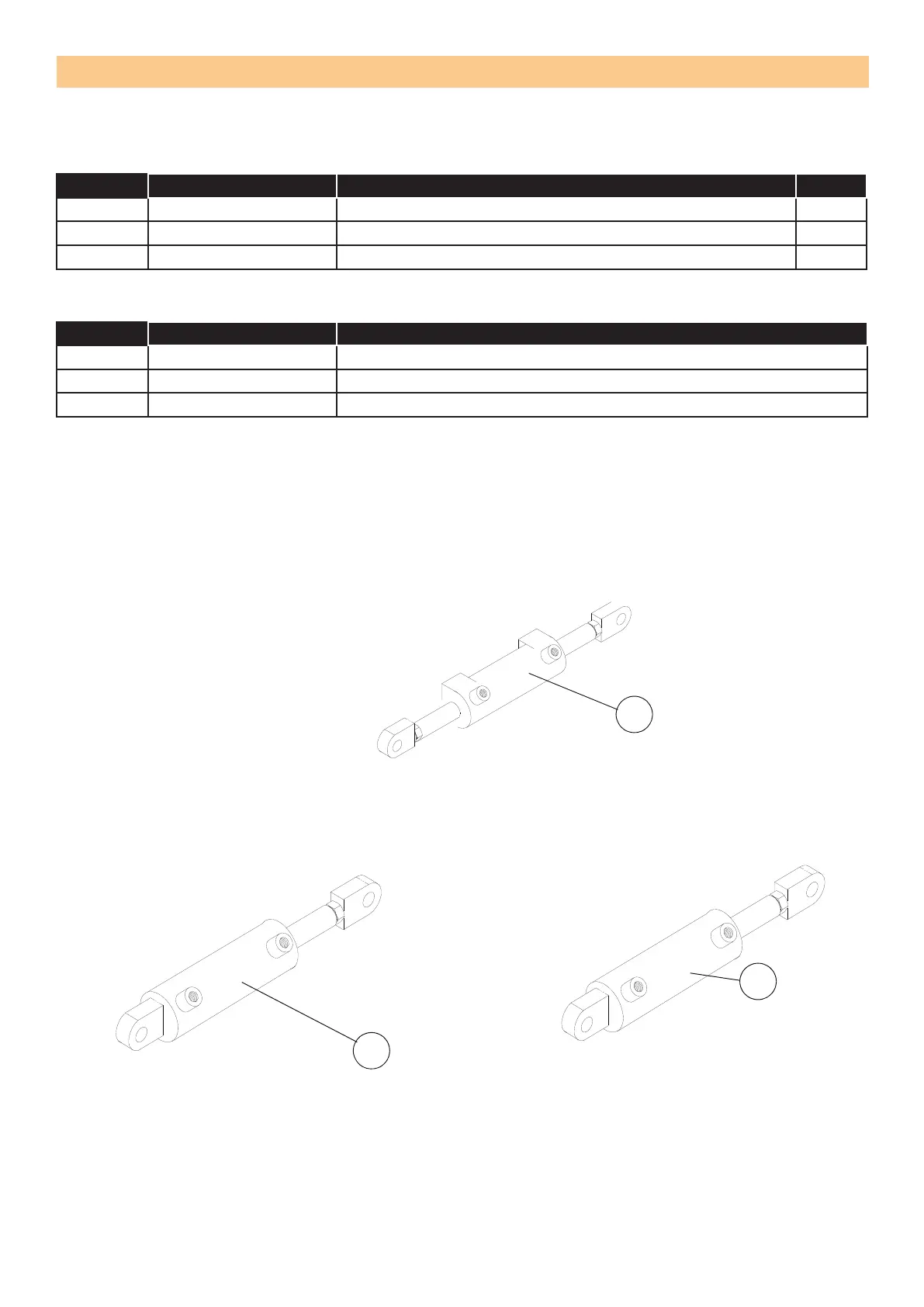

Figure 6-21: Hydraulic cylinder components of SL26/30SL
