SnowEx Bulk-Pro 1875 - Page 25

SPREADER ASSEMBLY (575 Shown)
© Trynex International 2009 L1040
7 — 25
Adjustable Deector Installation Instructions
Model #ADF-020 For SP-575 and SP-1075
INSTALLATION

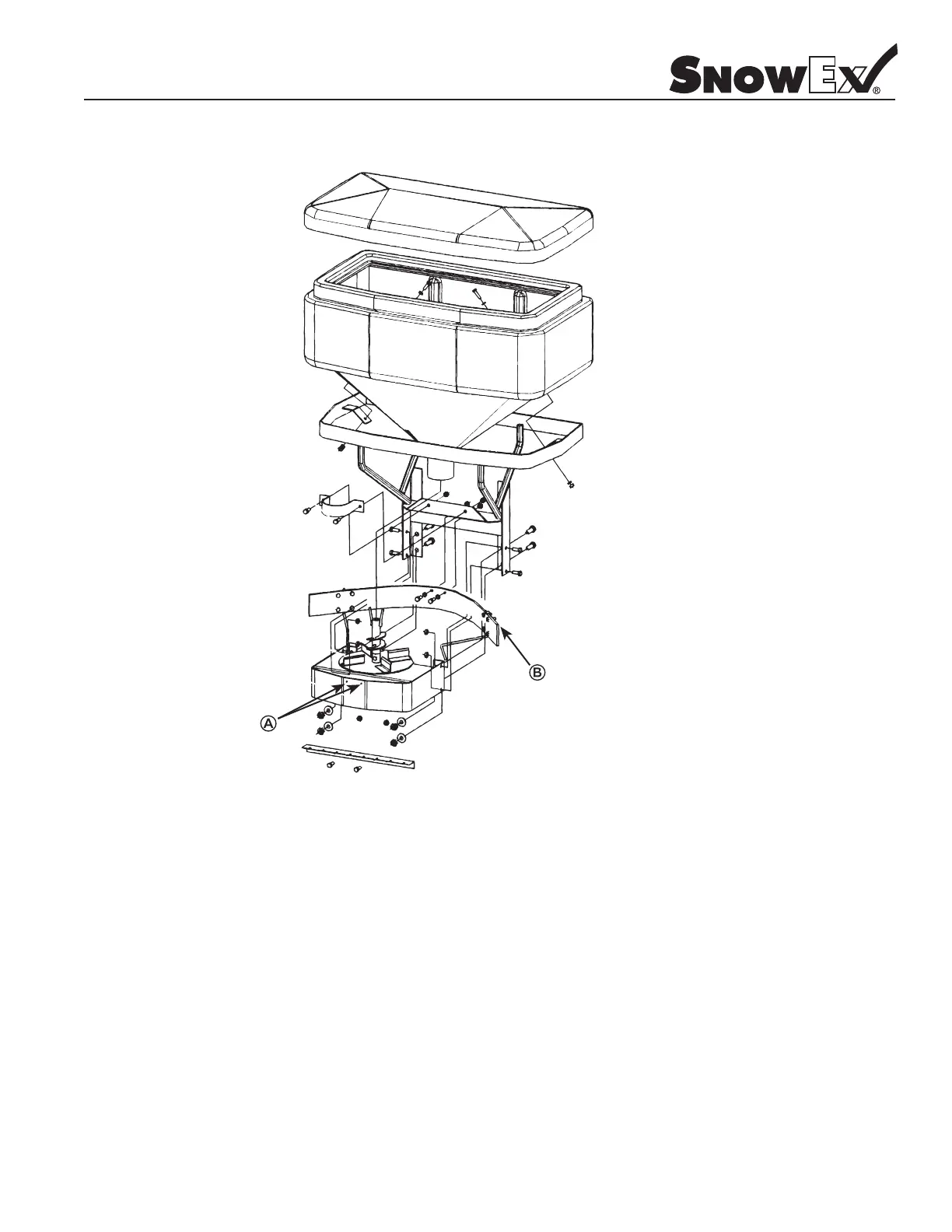

Step 1: Install deector adjustment bar as seen in Figure A. If needed, drill two 3/8” holes in front apron of drive enclosure.
Bolt bracket to drive enclosure.
Step 2: Remove original deector.
Step 3: Mount adjustment bar and mounting bracket on back side of 36” deector. See Figure B.
Step 4: Install 36” deector assembly.
OPERATION
Step A: To adjust deector position, simply insert adjustment bars into holes on deector adjustment bracket until desired
spread pattern is achieved.
Rev. 05
