Trailer Mount Parts Breakdown
Model #TLR-175
.ytQ noitpircseD .oN traP yeK
D 4116 1/2'' - 13 x 1-1/2'' Hex bolt 2
2 stunkcoL - ''2/1 0214 D
3 pilc nip riaH 5314 D
D 4136 5/8'' x 5 -1/2'' Hitch pin 1
1 eugnot reliarT 8346 D
1 emarf ”A“ reliarT 9346 D
D 6440 Receiver tube mount 1
2 erit reliarT 1446 D
D 6442 5/8'' - 13 x 7'' Hex bolt special 2
D 6443 5/8'' Flat washers 4
UM O D O O C D 2 S G O

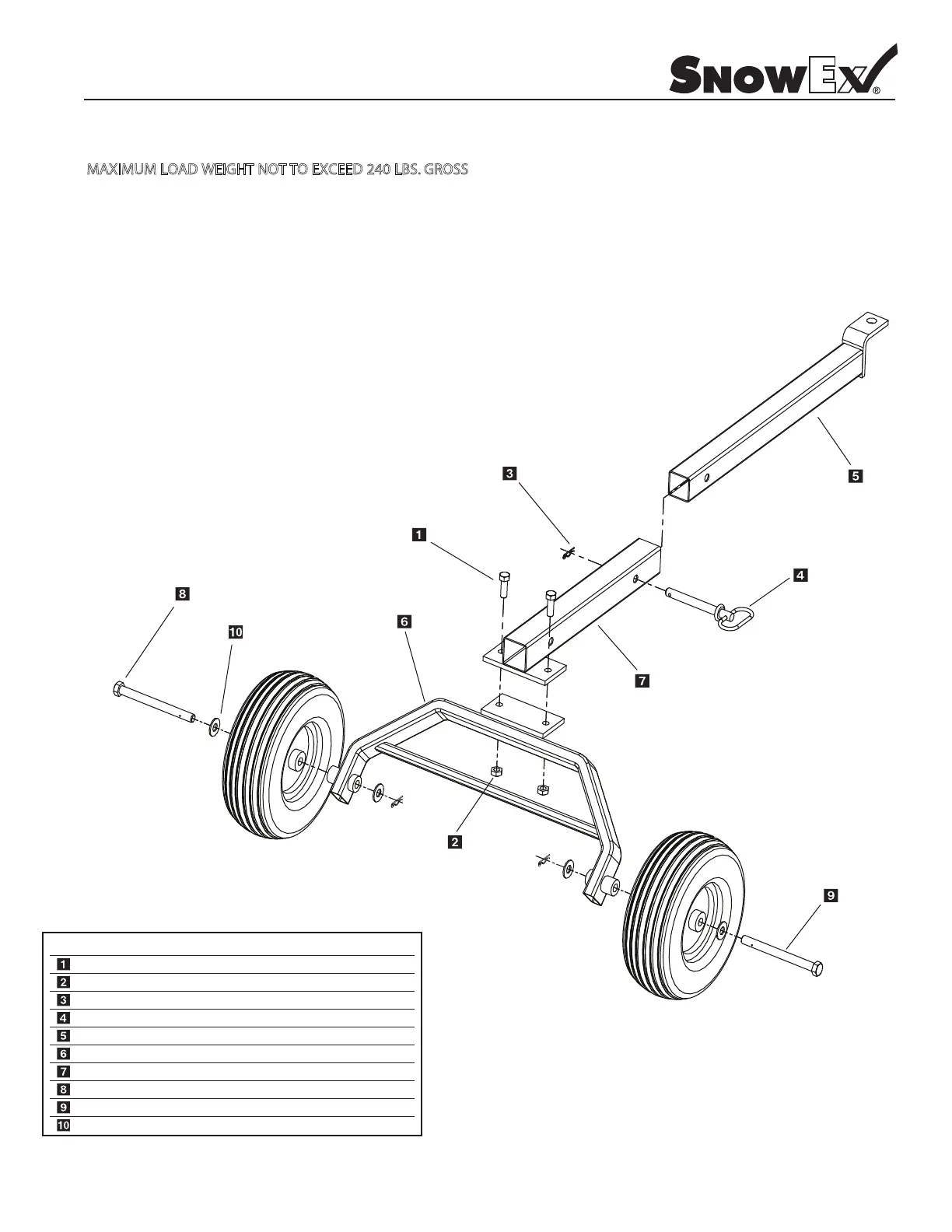

TRAILER MOUNT ASSEMBLY INSTRUCTIONS
Step 1: Insert axle through wheel and axle weldment.
Step 2: Put washer on, then install hair pin clip to secure axle. Repeat Steps 1 and 2 for other side.
Step 3: Bolt tube support on axle weldment.
Step 4: Insert trailer tongue per drawing and pin into position.
Step 5: Insert spreader mount into opposite side of trailer tongue and pin into position.
