BUMPER PLATE SPACER FOR BUMPER OBSTRUCTION
ON CHEVROLET VEHICLES
.ytQ noitpircseD
.oN traP
yeK
.ytQ noitpircseD
.oN traP
yeK
D 4116 1/2-13 x 1-1/2” Hex Bolt
1/2” Flat Washer
1/2” Lock Nut
3/8-16 x 1” Hex Bolt
3/8-16 x 1-1/2” Hex Bolt
3/8 Lock Nut
3/8 Flat Washer
5/16 Lock Nut
5/16-18 x 2” Hex Bolt
1/2” Toggle
1/2-13 x 3” Hex Bolt Full Thread
Bed Rail Bracket Right
Bed Rail Bracket Left
Pivot Tube Assembly
Angle Top
Pivot Bumper Bracket
Latch Bumper Bracket
Pivot Channel Assembly
Latch Channel Assembly
Rubber Tip Protector
2
7
5
16
13
29
9
1
1
2
4
1
1
1
1
1
1
2
2
4
D 4119
D 4120
D 4121
D 4122
D 4124
D 4125
D 6138
D 6139
D 6141
D 6144
D 6200
D 6201
D 6202
D 6203
D 6204
D 6205
D 6206
D 6207
D 6208
1/2-13 x 4” Hex Bolt Full Thread
1/8” x 2-1/16” Hair Pin Clip
2 2
D 6142
D 6222
1/2-13 x 1-1/4” Hex Bolt
Latch Bar
3 1
D 6143
D 6223
N
When installing the Pivot Mount, if any movement is
noted with Rail Brackets due to weakened or altered
conditions of pick-up bed, drill and bolt through
pre-punched Rail Brackets to assure rm mounting.

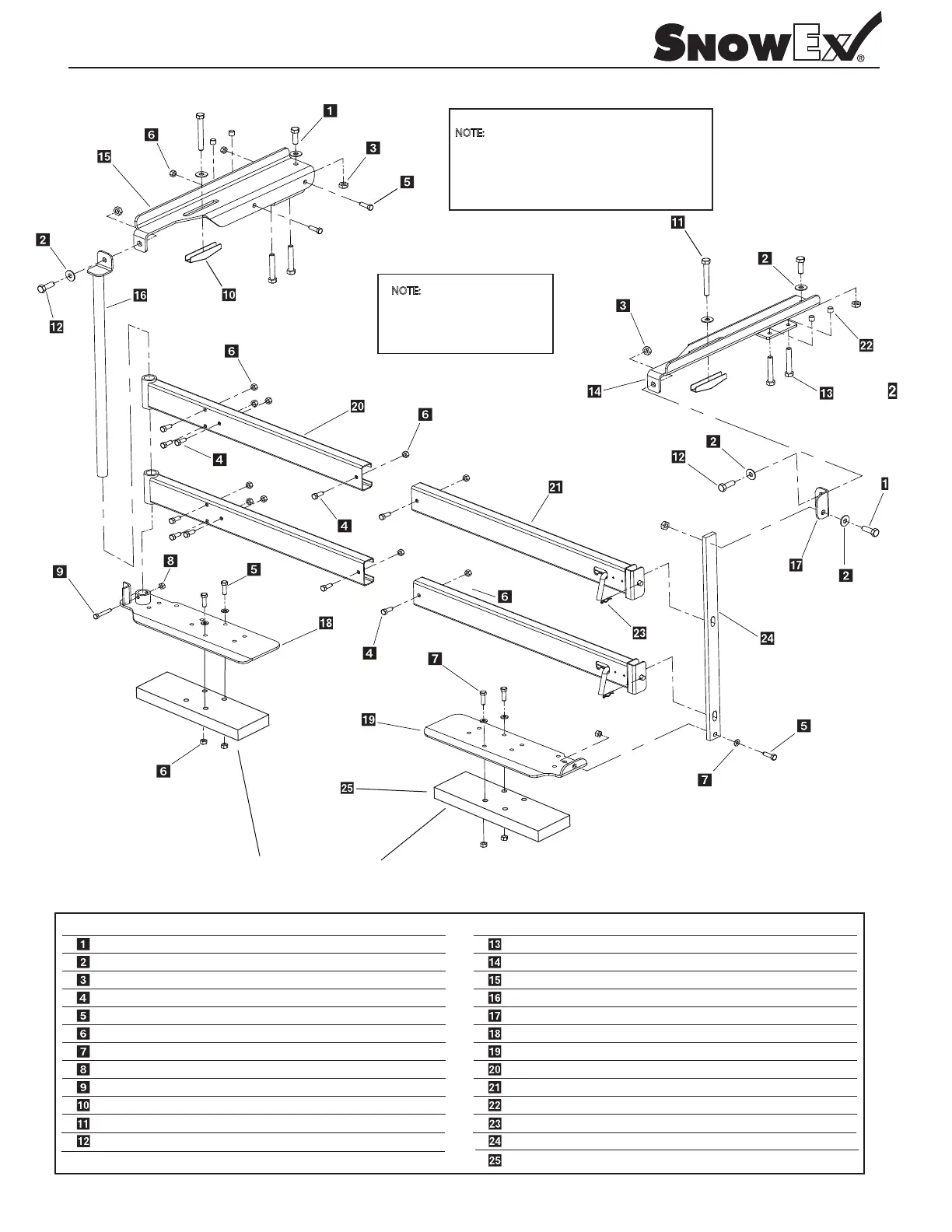

Pivot Mount Parts Breakdown
Model #PMT-175-C (For GM and Chevrolet 2007 Models and Newer 2500 HD and Larger)
Chevolet Plastic Spacer Block
2D 6739
NOTE
PMT-175-C kit is the same as
the PMT-175 kit except for item
# 25 spacer.
NOTE: Pay special attention when drilling or
clamping dissimilar metals to aluminum bodies.
Galvanic corrosion can occur if not handled
properly. Contact vehicle manufacturer for
recommended attachment practices.
To Next Page
