Key Part No. Description Qty.
D 6452 3/8-16x1” Ser Flg Bolt 2
D 4122 3/8-16x1-1/2” Hex Bolt 4
D 4124 3/8-16 Lock Nut 8
D 6132 1/4-20 x 3/4 Ser Flg SS 8
D 6105 Flexible Draw Latch 2
D 6877 #8 x 3/4 Driller 2
D 6130 3/16'' Aluminum Rivit 12
D 6133 5/16-18 x 1/2’’ Hex Bolt 1
D 6334 Top Screen 1
D 6135 10/32 x 5/8’’ Cap Screw 4
D 6137 5/16-18 x 1’’ PH SS Bolt 6
D 6140 5/16-18 x 3/8’’ Set Screw 1
Key Part No. Description Qty.
D 6356 Bearing Access Cover 1
D 6394 5/16-18 KEPS Nut 8
D 6169 3/8’’ SS Flat Washer 10
D 6174 DC-80 Vibrator 1
D 6198 Latch Keeper 2
D 6225 12’’ Steel Spinner 1
D 6232 Motor Trans Coupler 2
D 6313 1875 Hopper 1
D 6314 1875 Lid 1
D 6315 Auger 1
D 6317 Spinner Transmission 1
D 6501 Auger Transmission 1
D 6106 Spinner Motor 1
D 6320 Auger Motor 1
Key Part No. Description Qty.
D 6323 1875 Frame 1
D 6324 Trim Ring 1
D 6325 Auger Mtr Motor Cover 1
D 6326 Spinner Mtr Cover 1
D 6327 Plastic Deector 1
D 6328 Inverted V-Support 1
D 6330 Material Bae 1
D 6331 Chute 1
D 6332 Auger Shaft Bearing 1
D 6333 3/16’’ Rivet, Long 2
D 6337 Inverted V-Mtg Brkt 1

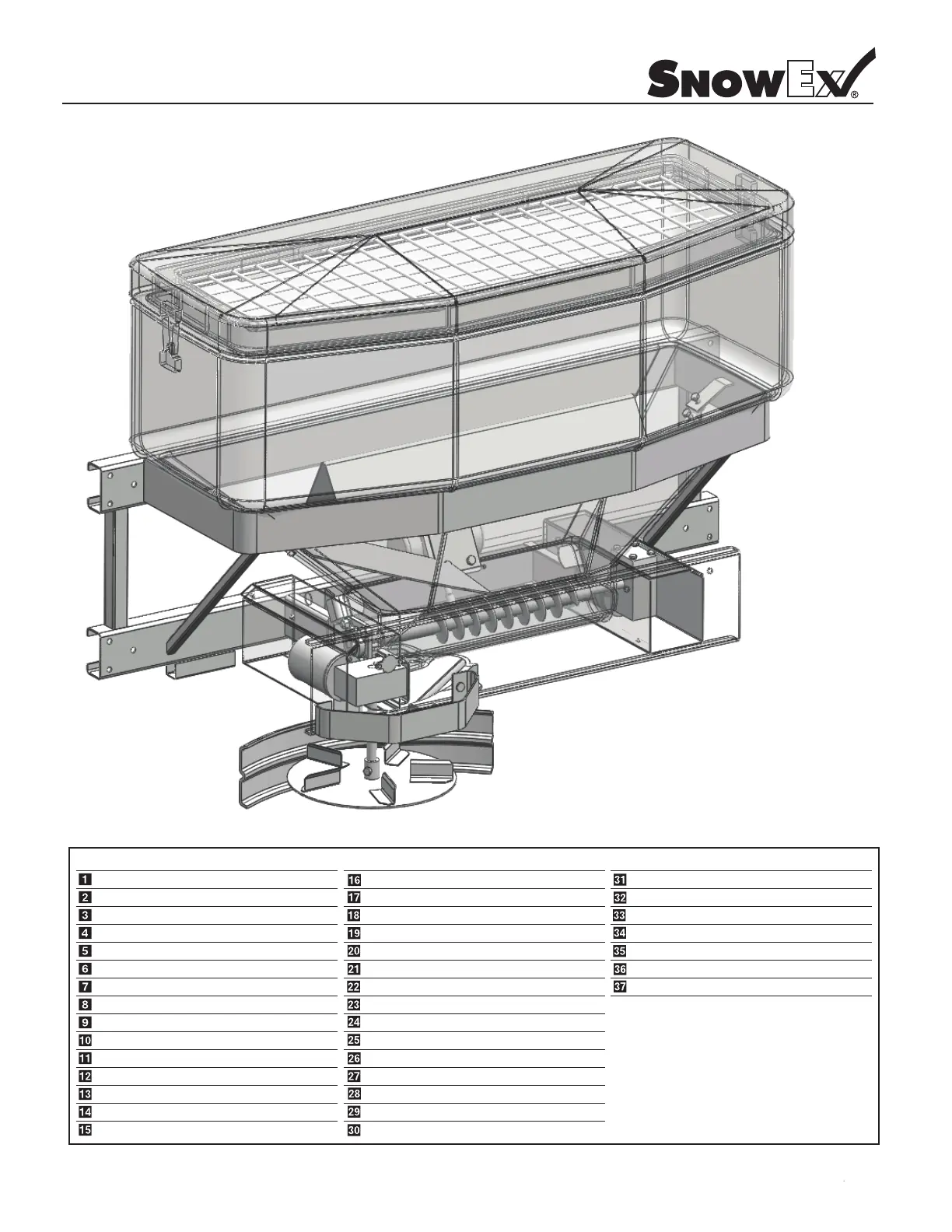

Parts Breakdown
Model #SP-1875
