APPENDIX D: DECODE ZONE 97
APPENDIX D
D
ECODE ZONE

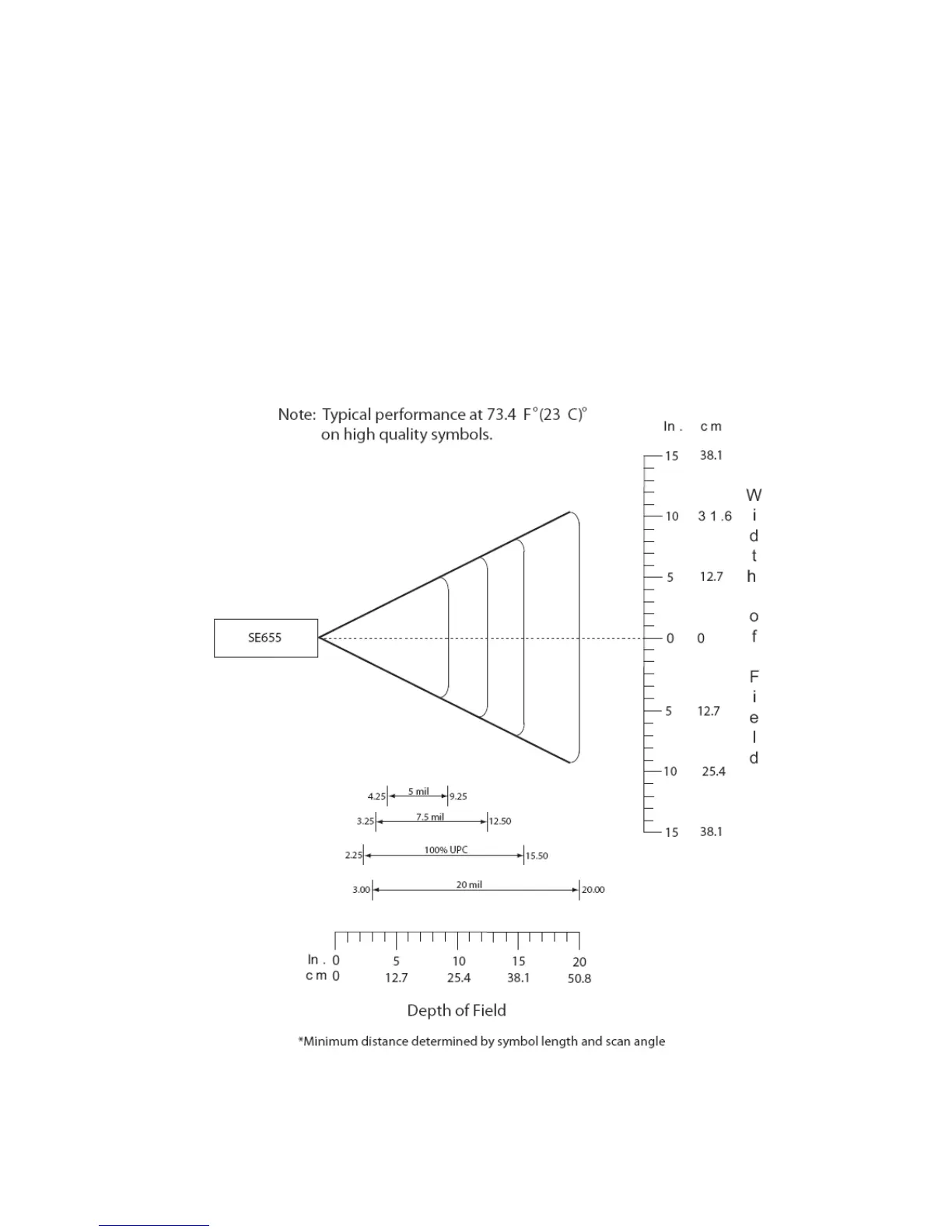

The decode zones for 1D models of the Socket Bluetooth Cordless Hand Scanner (v3) are shown below.
The minimum element width (“X Dimension” or barcode “size”) is the width in thousandths of an inch
(mils) of the narrowest element (bar or space) in the symbol. The figures shown are the typical scanning
distances (depths of field) for selected barcode sizes. The maximum usable length of a barcode symbol
(Width of Field) at any given range is also shown.
CHS 7C/7Ci
