Socket S700 - Code 39 Length and Check Digit Settings; Code 39 Length Configuration; Code 39 Check Digit Verification; Transmit Code 39 Check Digit

Socket User Manual (V 1.2) 2017/11/06
27

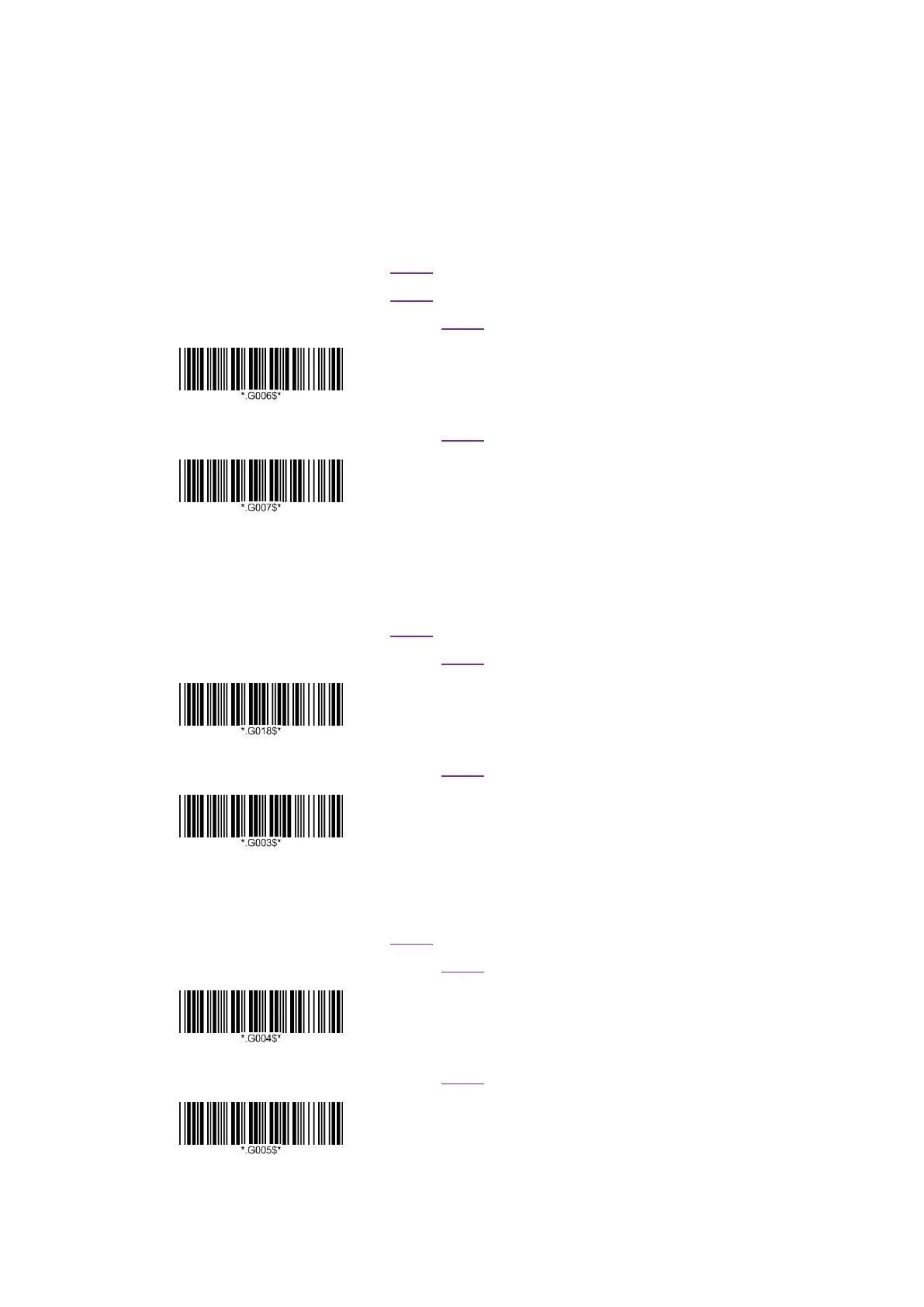

 Set Lengths for Code 39 (12h & 13h)
One Discrete Length : Length 1 = value , Length 2 = 0.
Two Discrete Lengths : Length 1 > Length 2.
Length Within Range : Length 2 > Length 1.
Any Length : Length 1 = 0, Length 2 = 0.
R : 00 00 05 C7 04 00 12 S1 S2
R : 00 00 05 C7 04 00 13 S1 S2
W : 00 00 07 C6 04 00 FF 12 02 S1 S2
Length 1
W : 00 00 07 C6 04 00 FF 13 37 S1 S2
Length 2
Triple Setting , input 2 digits , Range : 00~55.
 Code 39 Check Digit Verification (30h)
R : 00 00 05 C7 04 00 30 S1 S2
W : 00 00 07 C6 04 00 FF 30 01 S1 S2
Verify Code 39 Check Digit
W : 00 00 07 C6 04 00 FF 30 00 S1 S2
*Do Not Verify Code 39 Check Digit
 Transmit Code 39 Check Digit (2Bh)
R : 00 00 05 C7 04 00 2B S1 S2
W : 00 00 07 C6 04 00 FF 2B 01 S1 S2
Transmit Code 39 Check Digit (Enable)
W : 00 00 07 C6 04 00 FF 2B 00 S1 S2
*Do Not Transmit Code 39 Check Digit (Disable)
