Socket User Manual (V 1.2) 2017/11/06
29

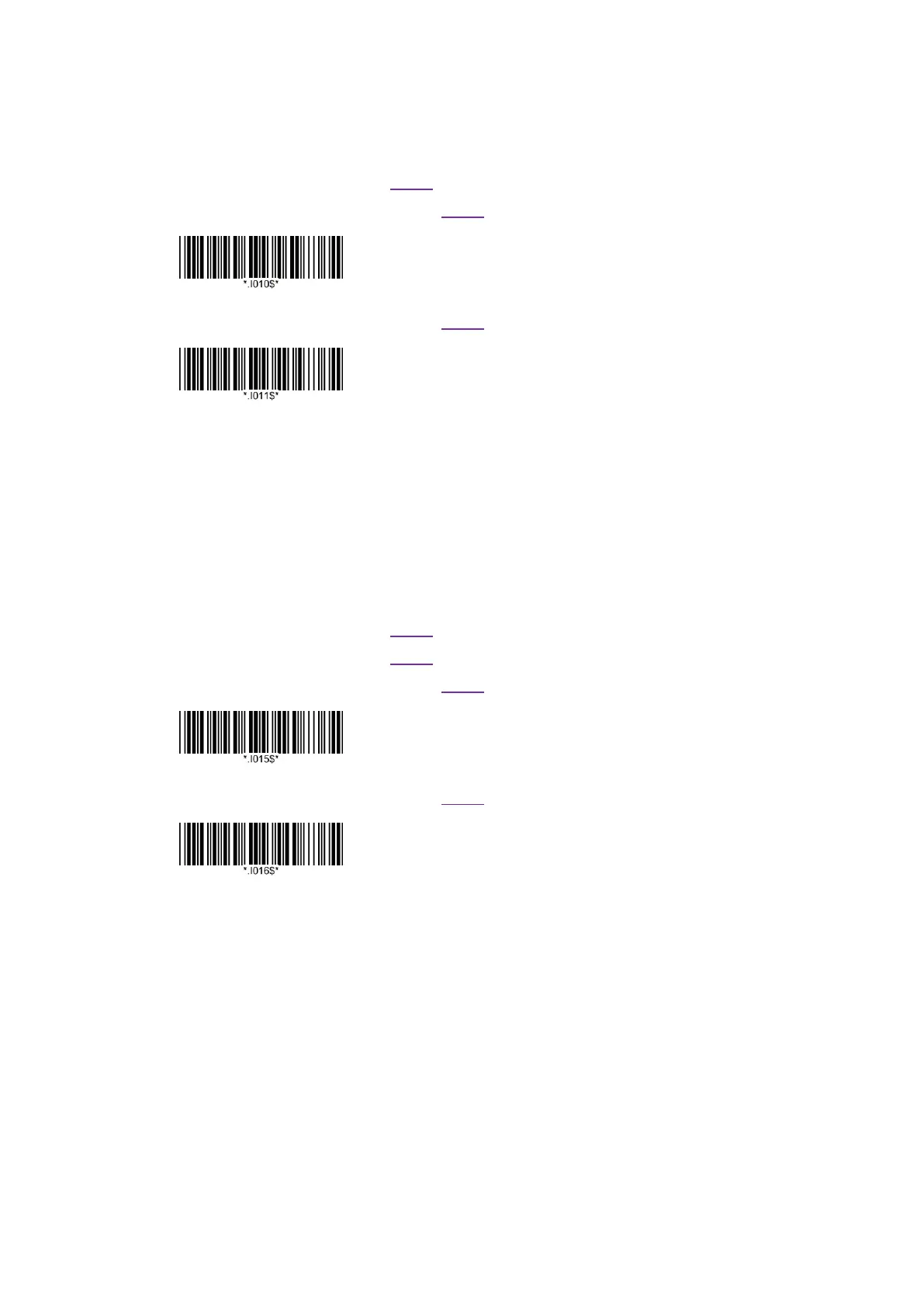

Code 11
 Enable/Disable Code 11 (0Ah)
R : 00 00 05 C7 04 00 0A S1 S2
W : 00 00 07 C6 04 00 FF 0A 01 S1 S2
Enable Code 11
W : 00 00 07 C6 04 00 FF 0A 00 S1 S2
*Disable Code 11
 Set Lengths for Code 11 (1Ch & 1Dh)
One Discrete Length : Length 1 = value , Length 2 = 0.
Two Discrete Lengths : Length 1 > Length 2.
Length Within Range : Length 2 > Length 1.
Any Length : Length 1 = 0, Length 2 = 0.
R : 00 00 05 C7 04 00 1C S1 S2
R : 00 00 05 C7 04 00 1D S1 S2
W : 00 00 07 C6 04 00 FF 1C 04 S1 S2
Length 1
W : 00 00 07 C6 04 00 FF 1D 37 S1 S2
Length 2
Triple Setting , input 2 digits , Range : 00~55.
