Socket S700 - Interleaved 2 of 5 Length and Check Digit Settings; Interleaved 2 of 5 Length Configuration; 12 of 5 Check Digit Verification

Socket User Manual (V 1.2) 2017/11/06
31

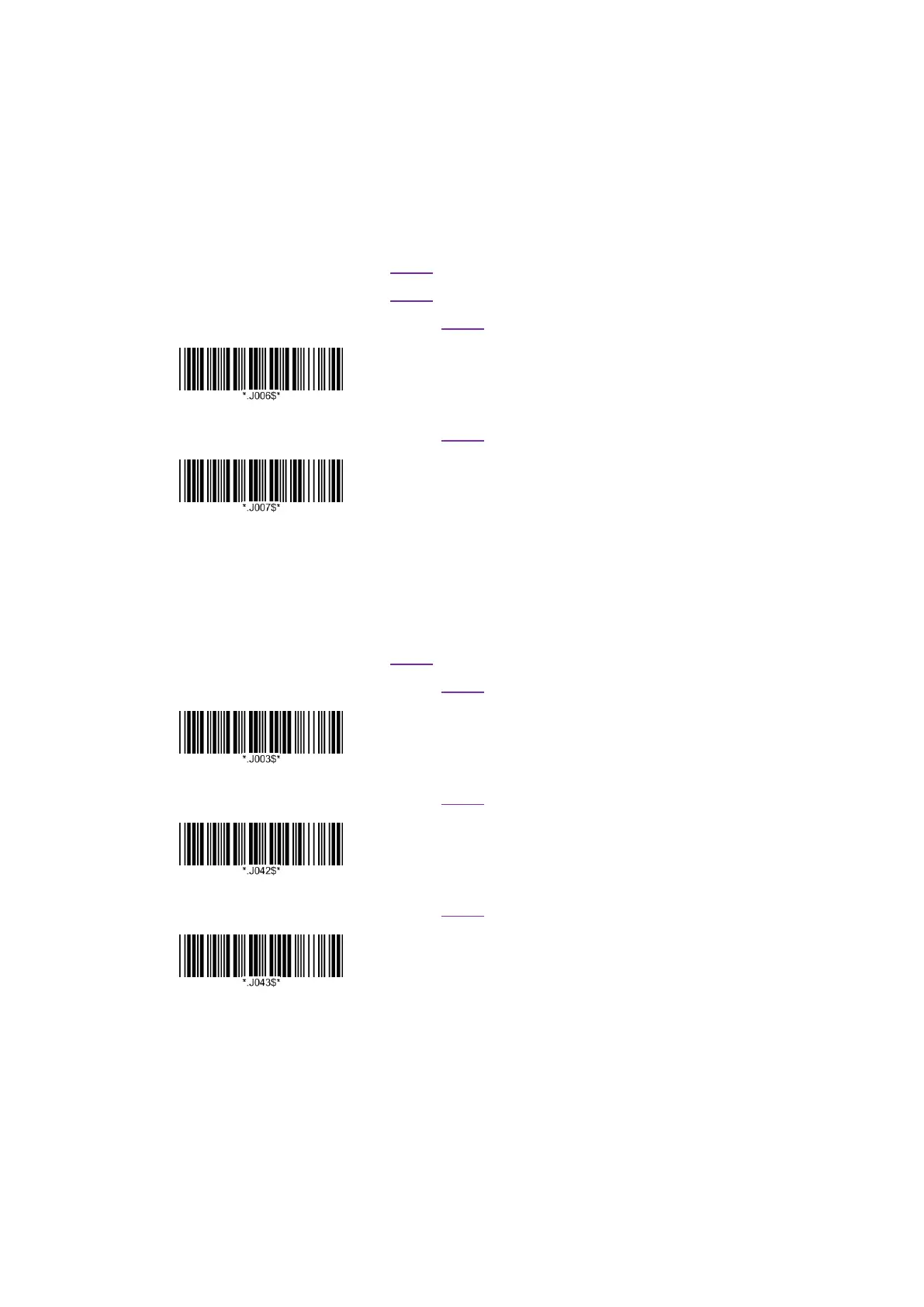

 Set Lengths for Interleaved 2 of 5 (16h & 17h)
One Discrete Length : Length 1 = value , Length 2 = 0.
Two Discrete Lengths : Length 1 > Length 2.
Length Within Range : Length 2 > Length 1.
Any Length : Length 1 = 0, Length 2 = 0.
R : 00 00 05 C7 04 00 16 S1 S2
R : 00 00 05 C7 04 00 17 S1 S2
W : 00 00 07 C6 04 00 FF 16 0E S1 S2
Length 1
W : 00 00 07 C6 04 00 FF 17 00 S1 S2
Length 2
Triple Setting , input 2 digits , Range : 00~55.
 I 2 of 5 Check Digit Verification (31h)
R : 00 00 05 C7 04 00 31 S1 S2
W : 00 00 07 C6 04 00 FF 31 00 S1 S2
*Disable
W : 00 00 07 C6 04 00 FF 31 01 S1 S2
USS Check Digit
W : 00 00 07 C6 04 00 FF 31 02 S1 S2
OPCC Check Digit
