Socket S700 - Host Communication Time-out Settings; Host Serial Response Time-out; Host Character Time-out; Event Reporting Configuration

Socket User Manual (V 1.2) 2017/11/06
43

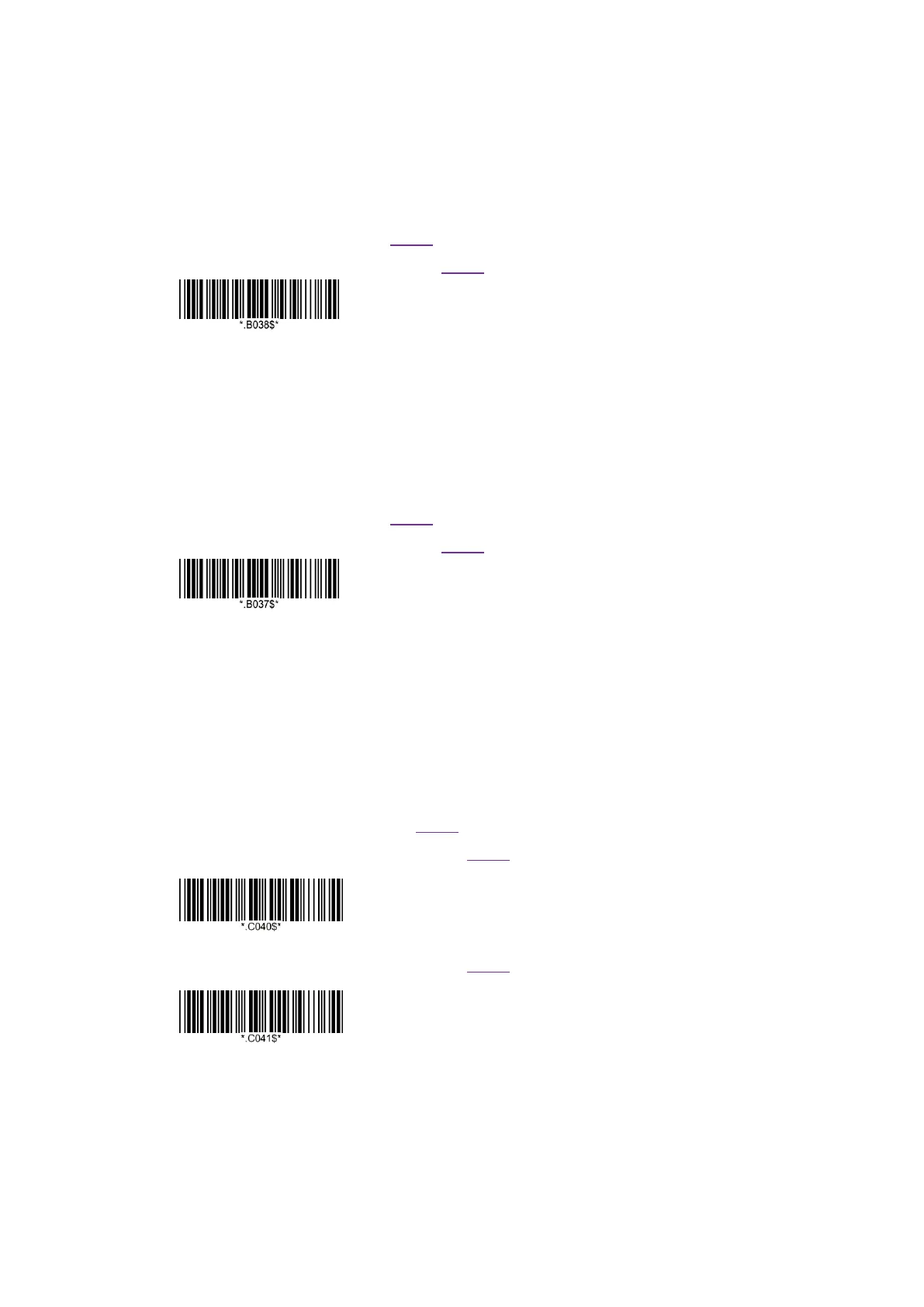

Host Serial Response Time-out (9Bh)
This parameter specifies how long the decoder waits for an ACK or NAK before resending. Also, if the
decoder wants to send, and the host has already been granted permission to send, the decoder waits for
the designated time-out before declaring an error.
R : 00 00 05 C7 04 00 9B S1 S2
W : 00 00 07 C6 04 00 FF 9B 14 S1 S2
Host Serial Response Time-out = 20 (Default : 2.0 sec)
Triple Setting , input 2 digits , Range : 01~99 (0.1 sec ~ 9.9 sec).
Host Character Time-out (EFh)
This parameter determines the maximum time the decoder waits between characters transmitted by the
host before discarding the received data and declaring an error.
R : 00 00 05 C7 04 00 EF S1 S2
W : 00 00 07 C6 04 00 FF EF 32 S1 S2
Host Character Time-out = 05 (Default : 50 ms)
Triple Setting , input 2 digits , Range : 01~99 (0.01 sec ~ 0.99 sec).
Event Reporting
 Boot Up Event (F0h 02h)
When enabled, the decoder sends a message to the host whenever power is applied. When disabled, no
message is sent.
R : 00 00 06 C7 04 00 F0 02 S1 S2
W : 00 00 08 C6 04 00 FF F0 02 01 S1 S2
Enable
W : 00 00 08 C6 04 00 FF F0 02 00 S1 S2
*Disable
