5-4 Bending Anglea Adjustment
(1) (2)

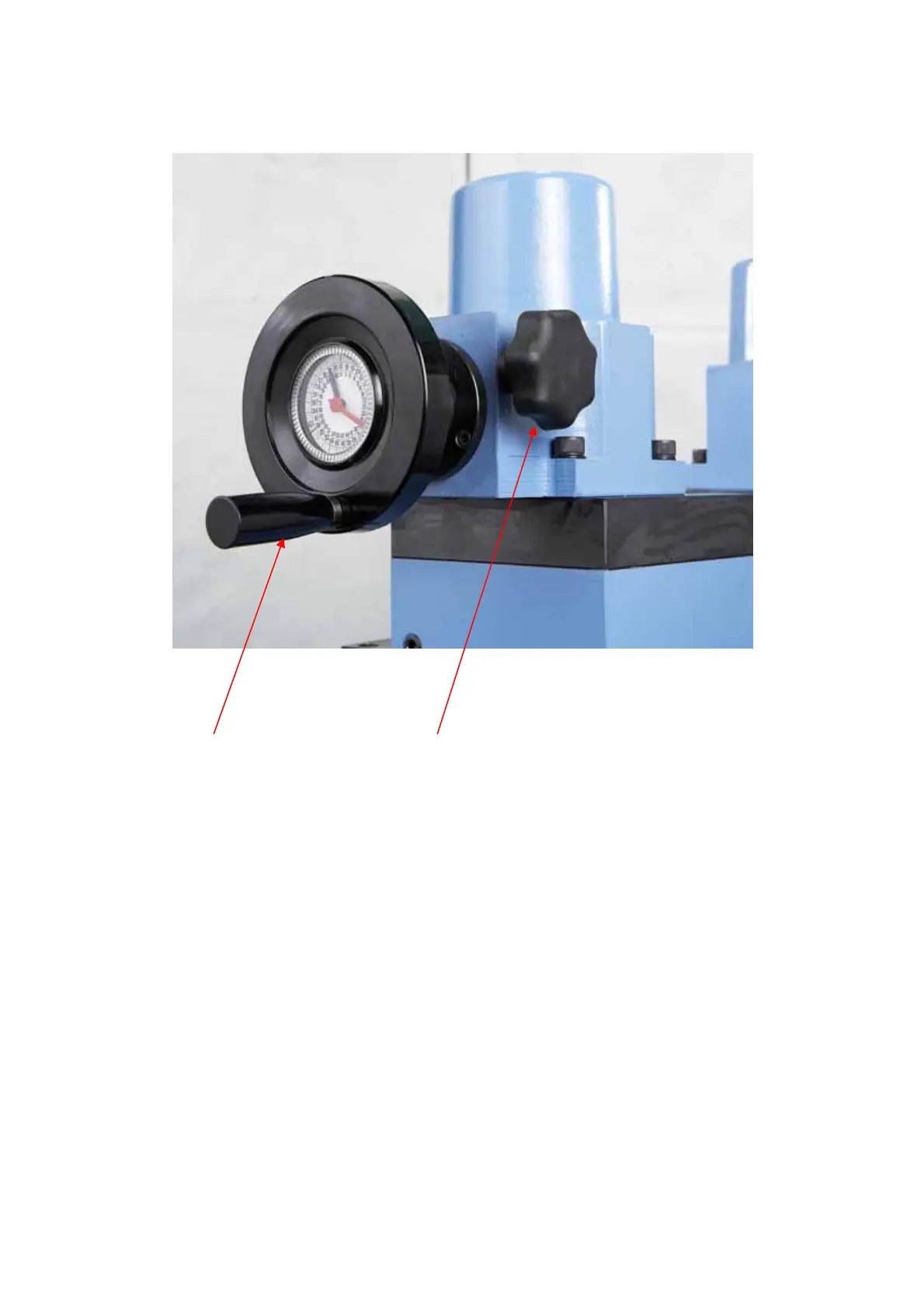

The angle of bend control is located on the top of each bending module and is easily identified by
the hand wheel (1) on the side. At the center of the hand wheel is a counter that reads the required
angle. To adjust the bend angle loosen the knob (2) at the front of bend angle control assembly and
turn the hand wheel either clockwise or anti clockwise to set the counter to the required bend angle,
then tighten the knob. Final adjustments may be required after bending tube due to different
material strengths.
