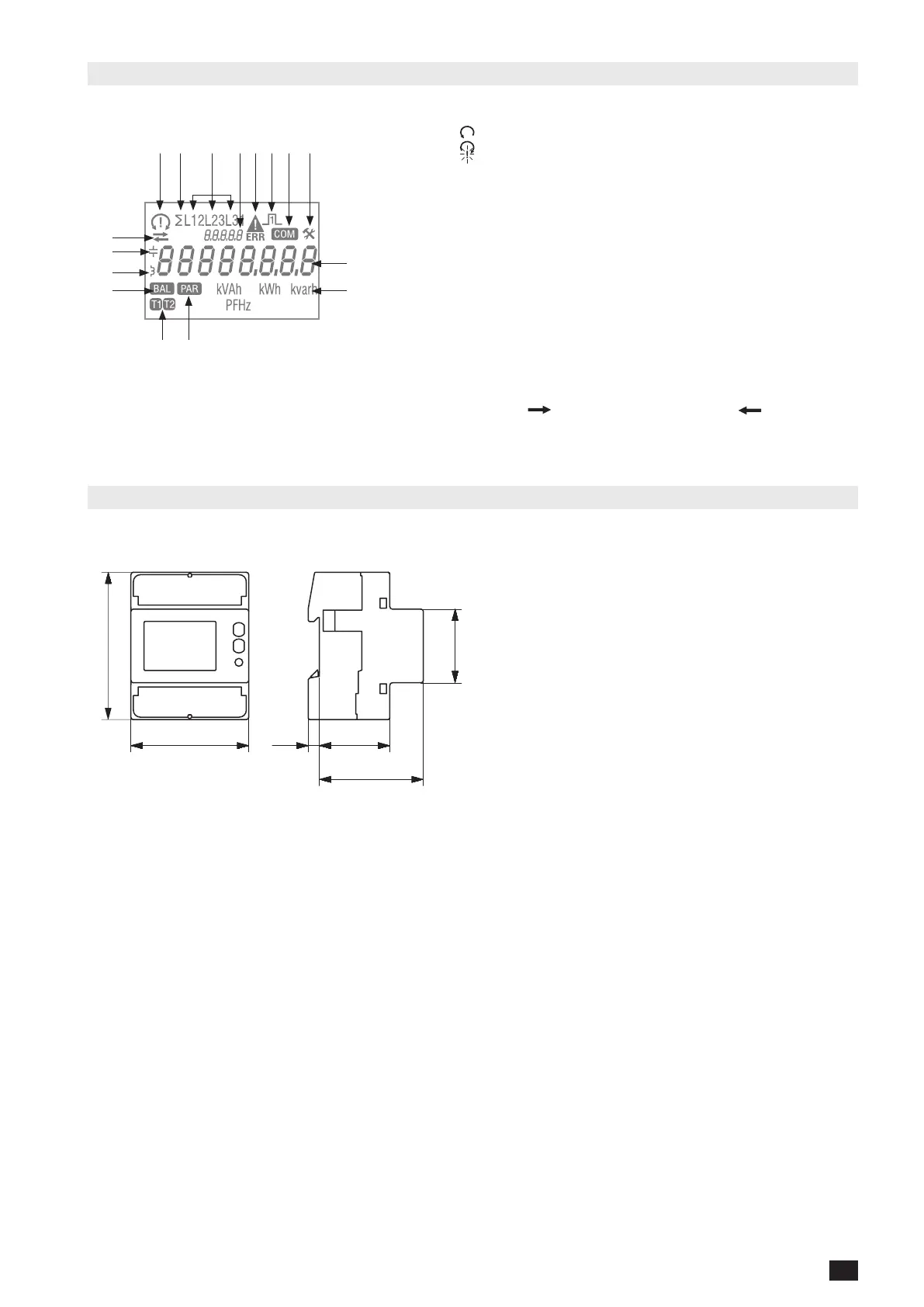

4.4. LCD display
1
9
10
13
14
15
16
2
1112
4 5 6 7 83
1. Phase sequences:
132
123
one or multiple phases are not detected
2. System value
3. Value by phase
4. Identification of current menu
5. Device malfunction. Replace the device
6. Active pulse output
7. Active communication
8. Setup menu
9. Main zone
10. Measurement Unit
11. Partials meters. Flashing = partial meter has stopped
12. Tariff display
13. Energy balance
14. Inductive value
15. Capacitive value
16. Imported (
) or exported energy or power ( )
4.5. Dimensions
2.83
72
0.24
6
1.73
44
2.52
64
3.54
90
1.77
45
2.83
72
0.24
6
1.73
44
2.52
64
3.54
90
1.77
45
Dimensions: in/mm
