COUNTIS E41/E42 - 547979A - SOCOMEC

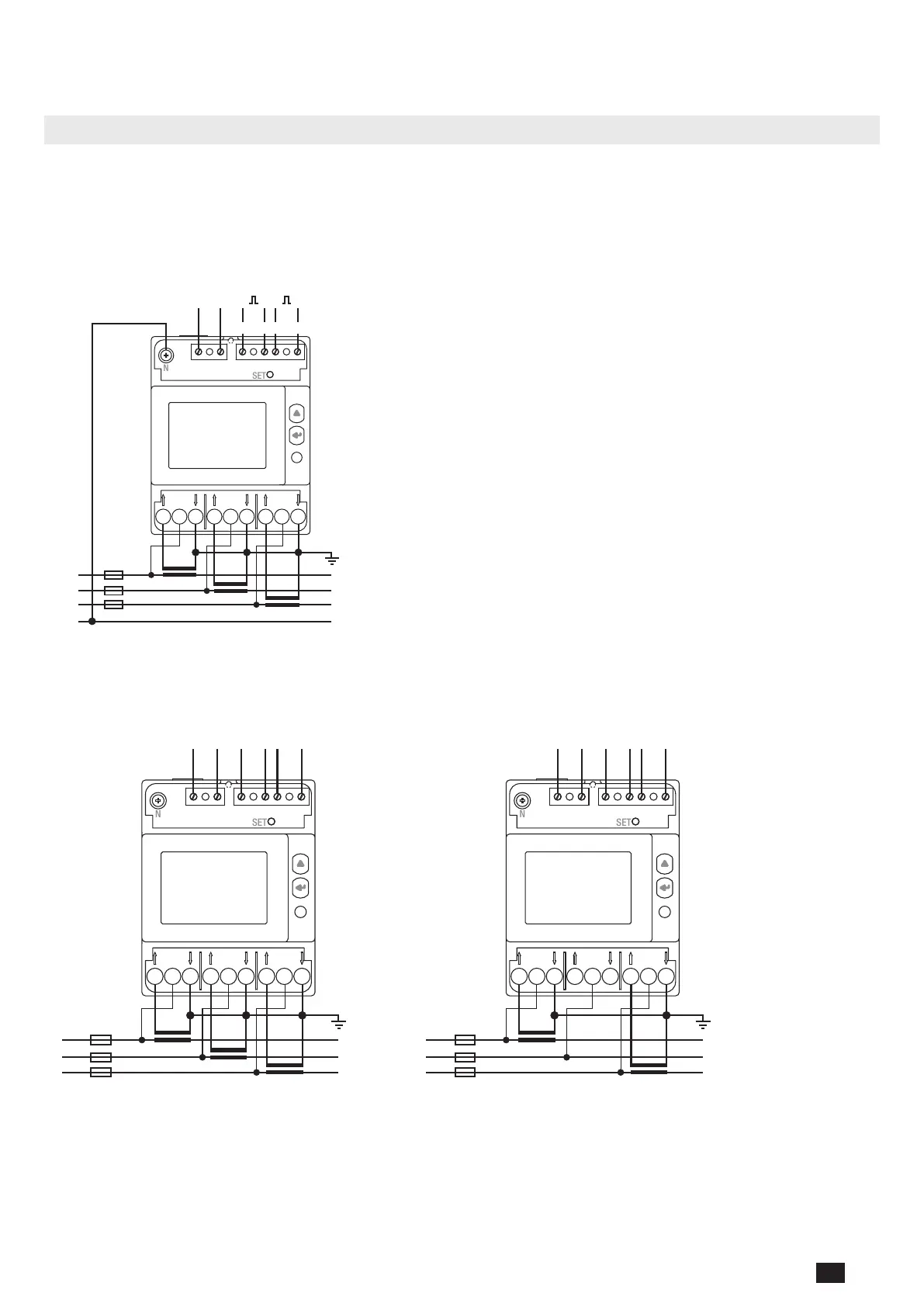

6.2. Connection to the electrical network and to the loads
The COUNTIS E41/E42 are intended for three-phase networks with or without neutral.
3 phases, 4 wires, 3CT
SET
N
L1
L2
L3
N
3 x 0.5A
230/400 VAC 50/60 Hz
1 2 3 4 5 6
L1
A V A A V A A V A
L2 L3
T1/2
- + - +
01 02
Double tariff
1-2: Switch tariffs:
0 VAC/DC -> Tariff 1
80-276 VAC/DC -> Tariff 2
Pulse output 1
3-4: Ea+
Pulse output 2
5-6: Er+
Optocoupler pulse output 250VAC/DC (100mA)
Mains
L1 A: Current input/output
L1 V: Voltage input
L2 A: Current input/output
L2 V: Voltage input
L3 A: Current input/output
L3 V: Voltage input
N: Neutral connection
3 phases, 3 wires, 3CT 3 phases, 3 wires, 2CT
SET
N
L1
L2
L3
3 x 0.5A
1 2 3 4 5 6
L1
A V A A V A A V A
L2 L3
T1/2
0201
SET
N
L1
L2
L3
3 x 0.5A
1 2 3 4 5 6
L1
A V A A V A A V A
L2 L3
T1/2
0201
