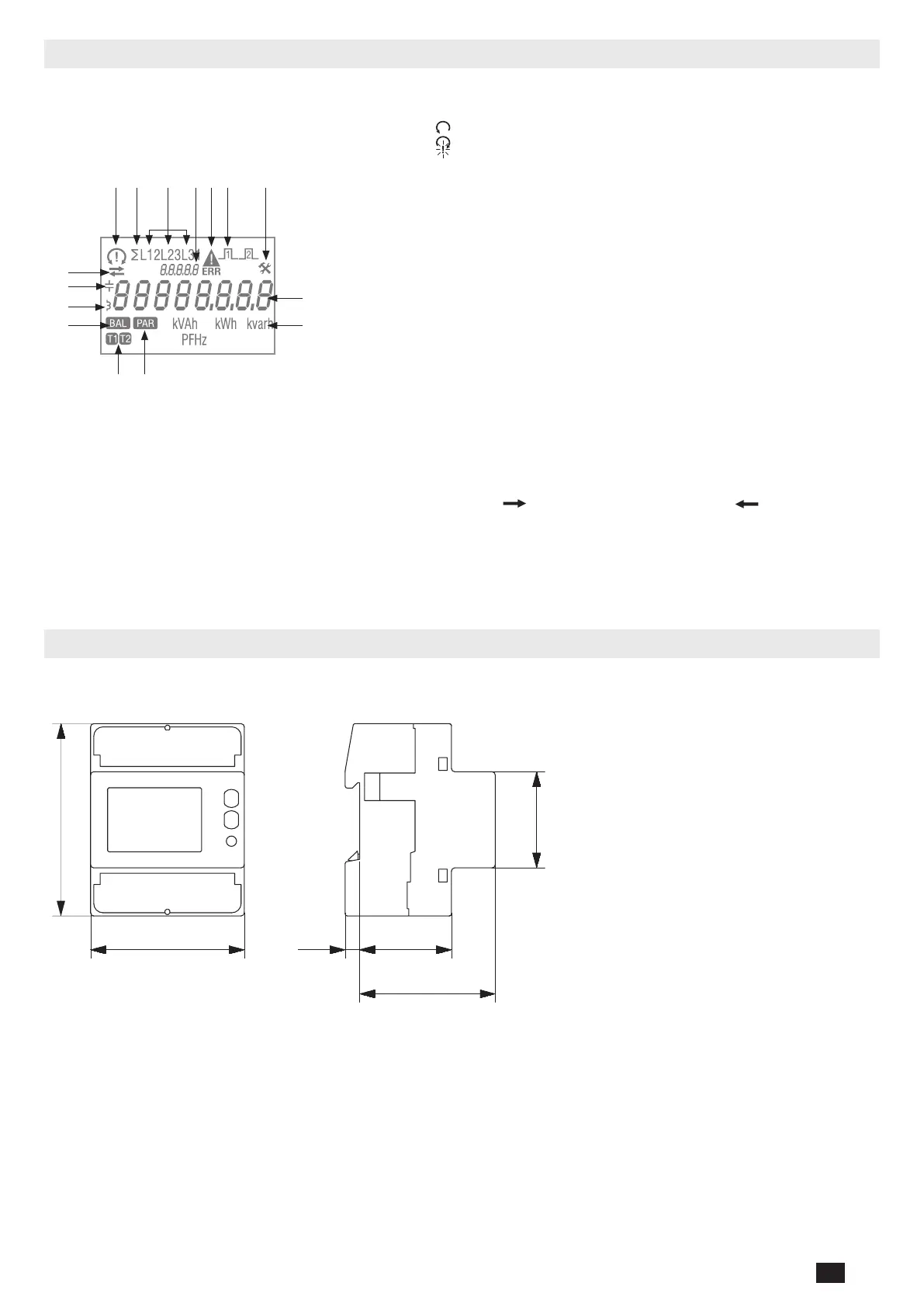

4.4. LCD display
1
8
9
12
13
14
15
2
1011
4 5 6 73
1. Phase sequences:
132
123
one or multiple phases are not detected
2. System value
3. Value by phase
4. Different meanings according to the shown item:
- CT XXXX: CT ratio value
- SEC: secondary value shown in the main area
- SEtUP: Setup page
- InFO: Info page
5. Device malfunction. Replace the device
6. Active pulse output
7. Setup menu
8. Main zone
9. Measurement Unit
10. Partials meters. Flashing = partial meter has stop-
ped
11. Tariff display
12. Energy balance
13. Inductive value
14. Capacitive value
15. Imported (
) or exported energy or power ( )
4.5. Dimensions
Dimensions: in/mm
2.83
72
0.24
6
1.73
44
2.52
64
3.54
90
1.77
45
