SodaStream JUMBO 13 - JUMBO 13 Wiring Diagram

mod. JUMBO 13 - man. rev. 00
page 21 of 24
Manual of SODASTREAM Professional SRL Unipersonale. No reproduction allowed without previous authorization by the
owner.

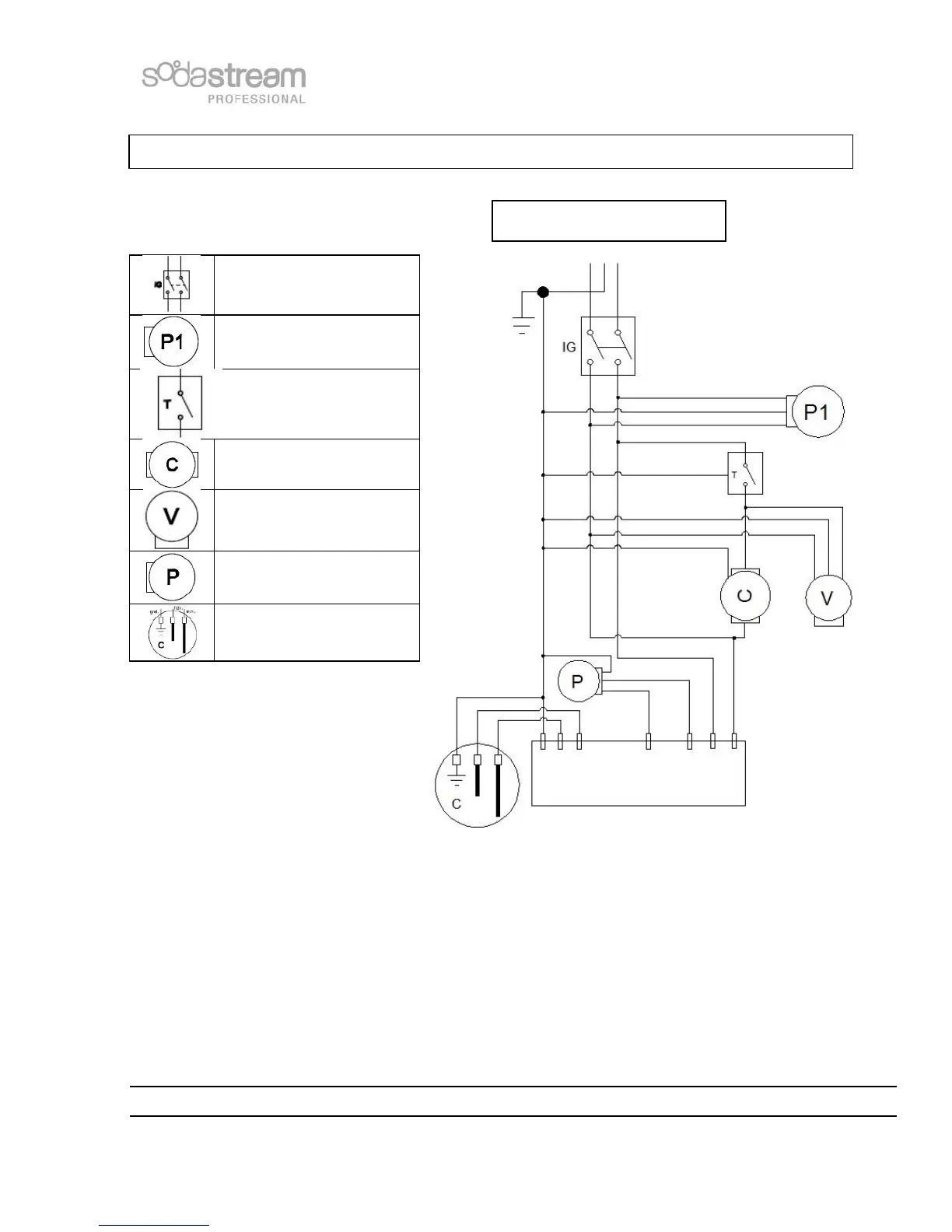

JUMBO 13 wiring diagram
MAIN SWITCH
IMMERSION PUMP
TANK AGITATOR
TEMPERATURE-
REGULATING
THERMOSTAT
COMPRESSOR
MOTOR FAN
CARBONATION PUMP
CARBONATOR
LEVEL PROBES
POWER CABLE
LEVEL CONTROL BOX
