SOFAR 7.5KTLM User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd

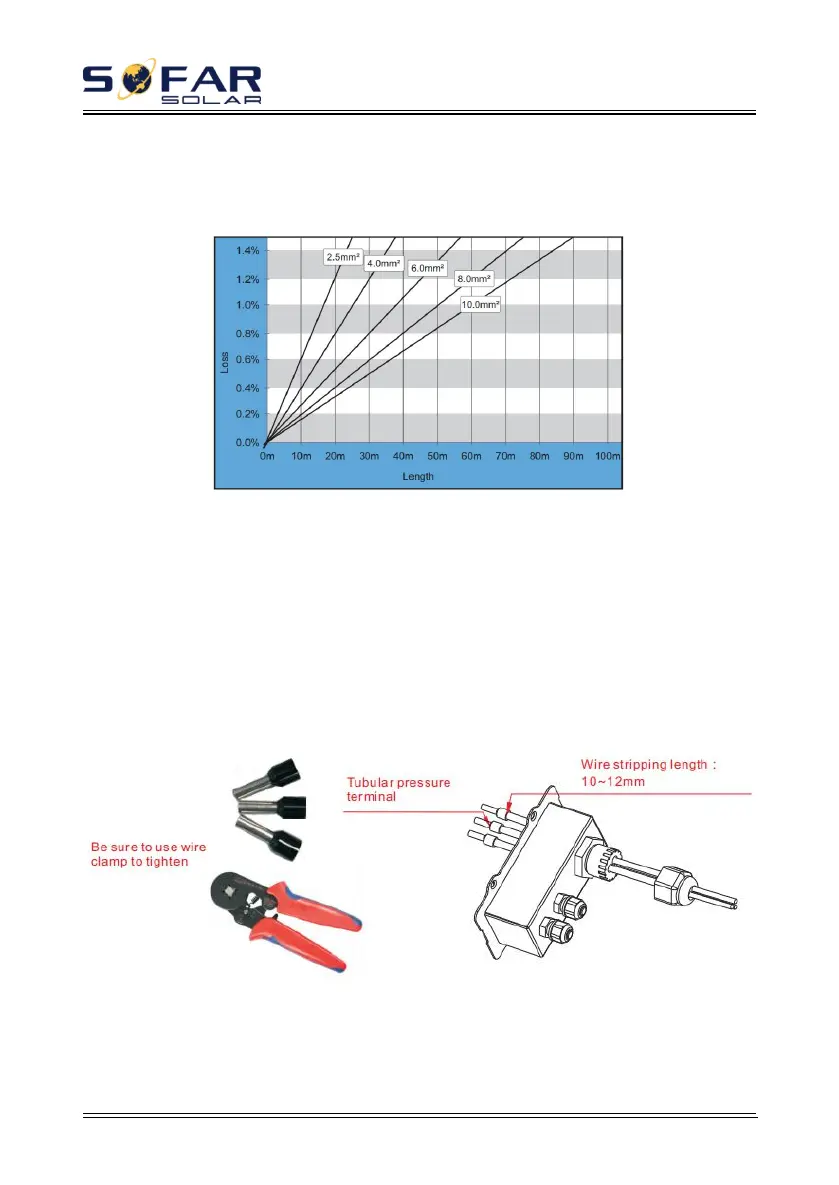

electrical grid. The relationship between power loss in AC cable and wire length,
wire cross sectional area is shown in the following figure：
Figure 4-10 wire length, wire cross sectional area and wire power loss
Customer need to make AC output cable connections by himself, and the
appearance of the AC connector is shown below:
AC wire connections procedure:
Step 1 As shown in figure 4-11,To make the output line, the wire ends need to
use tube-type terminals. It is recommended to use tube-type terminals KST model:
E6012 (10AWG)
Figure 4-11
Step 2
As shown in figure 4-12,Remove the waterproof cover with the cross
screwdriver.
