Sofar 7.5KTLM - 4.7. Communication method

SOFAR 7.5KTLM User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 35 -

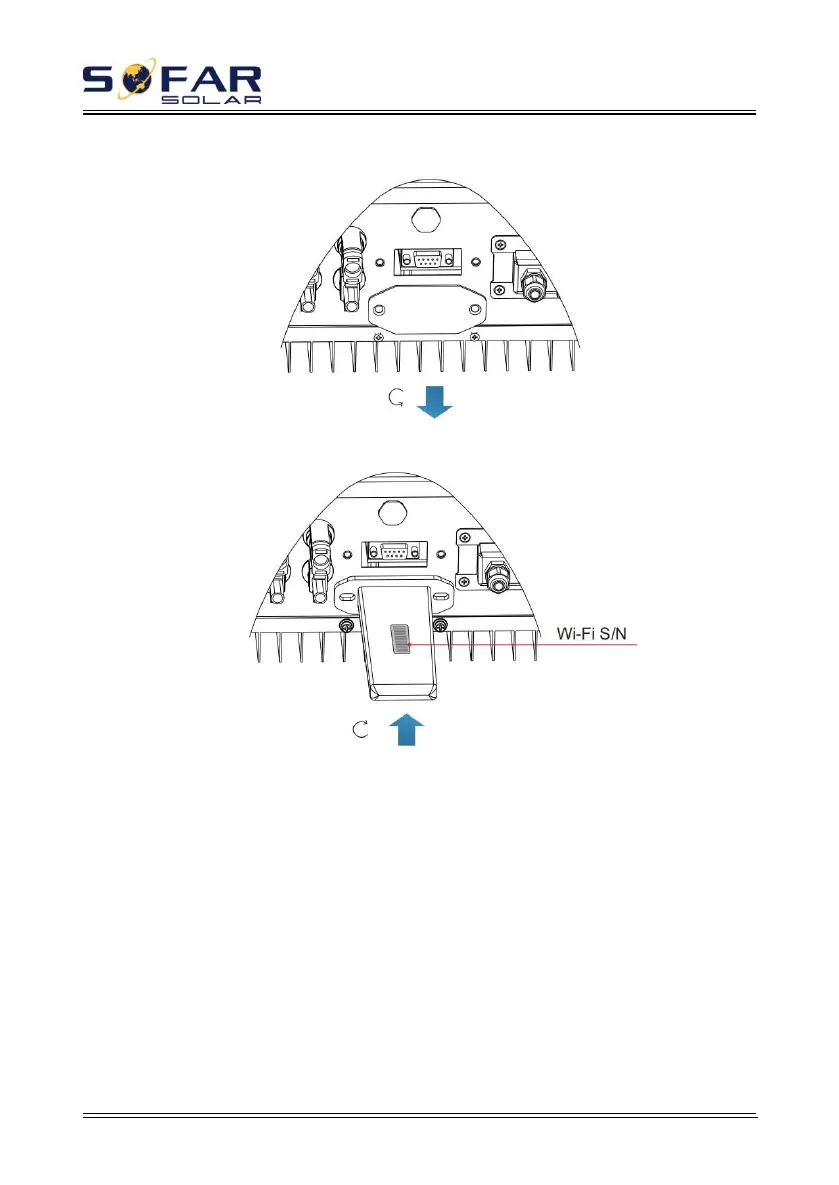

Figure 4-25
4.7. Communication method
SOFAR 7.5KTLM gird-connected inverters offer RS485 (standard) and Wi-Fi
(optional) communication modes:
A. Communication between one inverter and one PC:
1. RS485
Refer to the figure shown below, connect the TX+ and TX- of the inverter to
the TX+ and TX- of the RS485→ USB adapter, and connect the USB port of the
