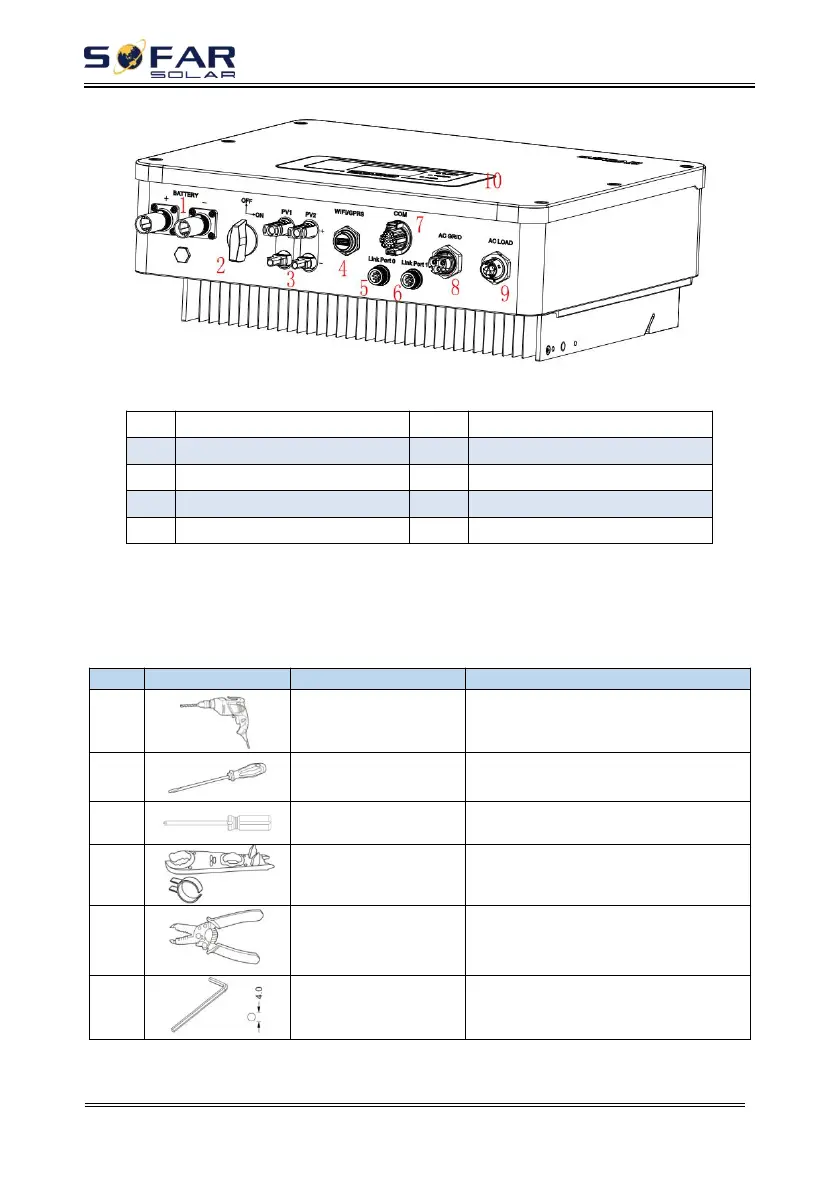

Table 3-2 HYD 3K~6K-EP inverter overview
1
Battery input terminals
6
Link Port 1
2
DC switch
7
COM
3
PV input terminals
8
Grid connection port
4
USB/WiFi
9
Load connection port
5
Link Port 0
10
LCD
3.3. Tools
Prepare tools required for installation and electrical connections.
Table 3-3 Tools required for installation and electrical connections.
NO.
Tool
Model
Function
1
Hammer drill
Recommend drill
dia. 6mm
Used to drill holes on the wall.
2
Screwdriver
Wiring
3
Cross screwdriver
Remove and install AC terminal
screws
4
Removal tool
Remove PV terminal
5
Wire stripper
Strip wire
6
4mm Allen
Wrench
Turn the screw to connect rear panel
with inverter.
