- 13 -

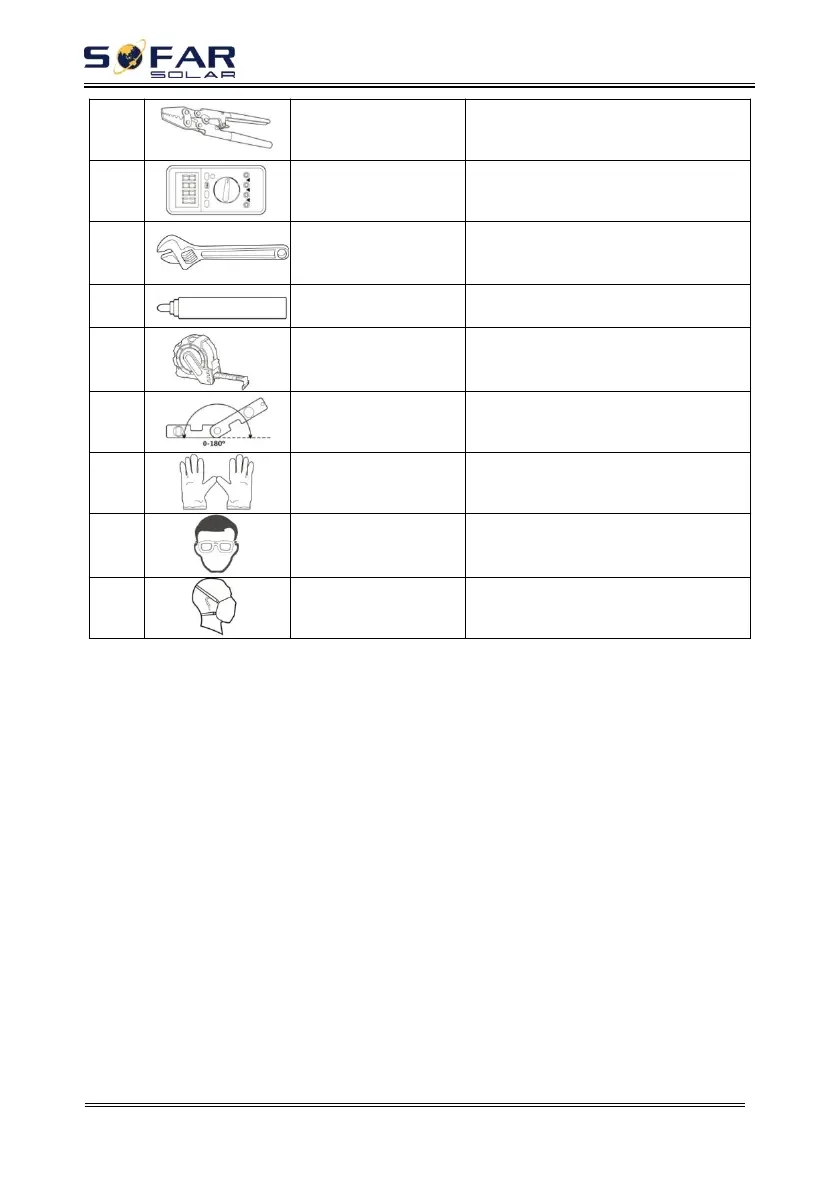

7
Crimping tool
Used to crimp power cables
8
Multi-meter
Used to check grounding
9
With an open end of
larger than or greater
than 32 mm
Used to tighten expansion bolts
10
Marker
Used to mark signs
11
Measuring tape
Used to measure distances
12
Level
Used to ensure that the rear panel is
properly installed
13
ESD gloves
Operators wear
14
Safety goggles
Operators wear
15
Anti-dust respirator
Operators wear
3.4. Installation Environment
a. Choose a dry, clean, and tidy place, convenient for installation.
b. Ambient temperature range: -25℃ ~ 60℃.
c. Relative humidity: 0 ~ 100% (non-condensed).
d. HYD 3K~6K-EP inverter shall be installed in a well-ventilated place.
e. No flammable or explosive materials close to HYD 3K~6K-EP inverter.
f. The AC overvoltage category of HYD 3K~6K-EP inverter is category III.
g. Maximum altitude: 4000m.
3.5. Determining the Installation Position
Determine an appropriate position for installing the HYD 3K~6K-EP inverter.
Comply with the following requirements when determining the installation
position.
Fig. 3-3 Installation Position of HYD 3K~6K-EP inverter
