and tighten it with the hexagon socket wrench, as shown in Fig.③④.
Step 4 Push the terminal forward until the sound of "click" is heard, as shown
in Fig.⑥
.
Step 5 Connect the connected load terminal to the inverter load port, and push
the terminal forward until the sound of "click" is heard, and the terminal connection
is completed，as shown in Fig.⑦⑧.
If you need to remove the terminals from the machine, use the tool to press on
the direction indicated by the big arrow and pull the terminals out.
Need to dismantle the end connection, to use the tool, as shown in figure attending
⑩⑪
。

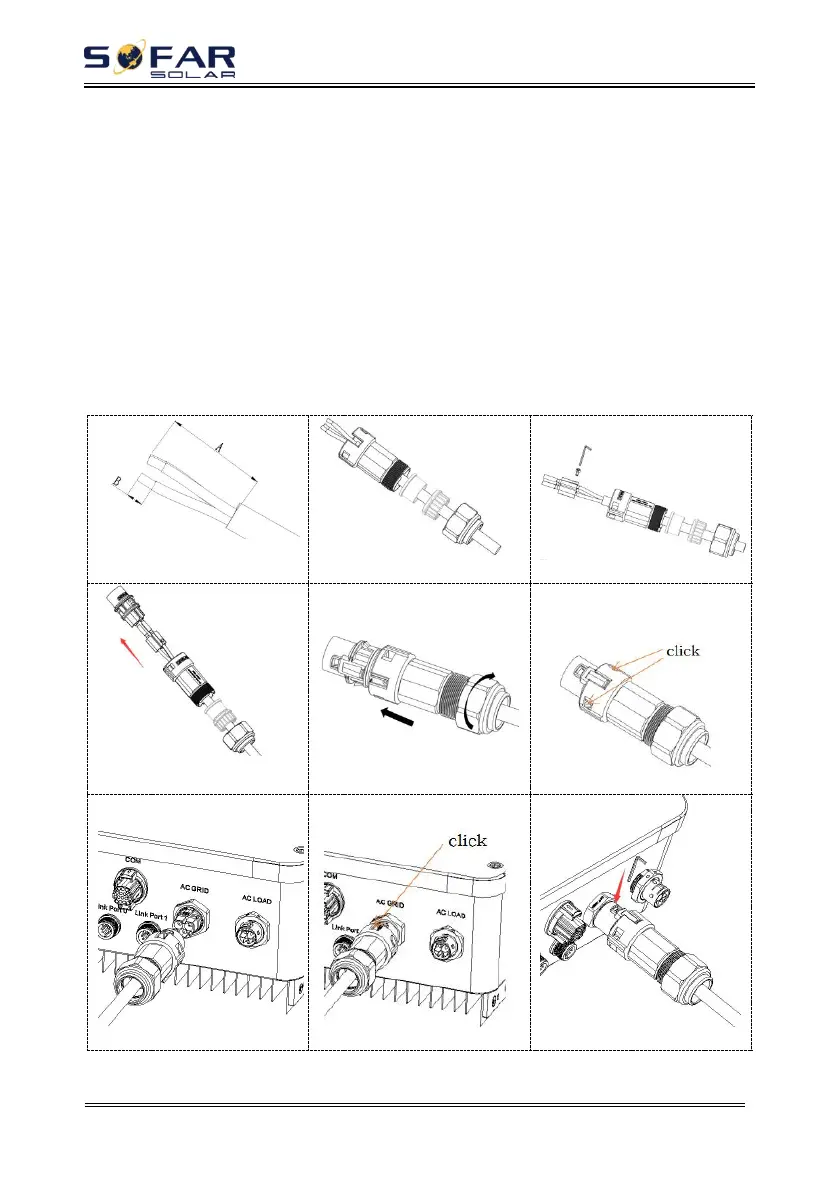

Fig.4-5 Load connection
