After unpacking the SOFAR 10-20KTL, check whether deliverables are intact and complete. If
any damage is found or any component is missed, contact the dealer.
3.1 Installation Process

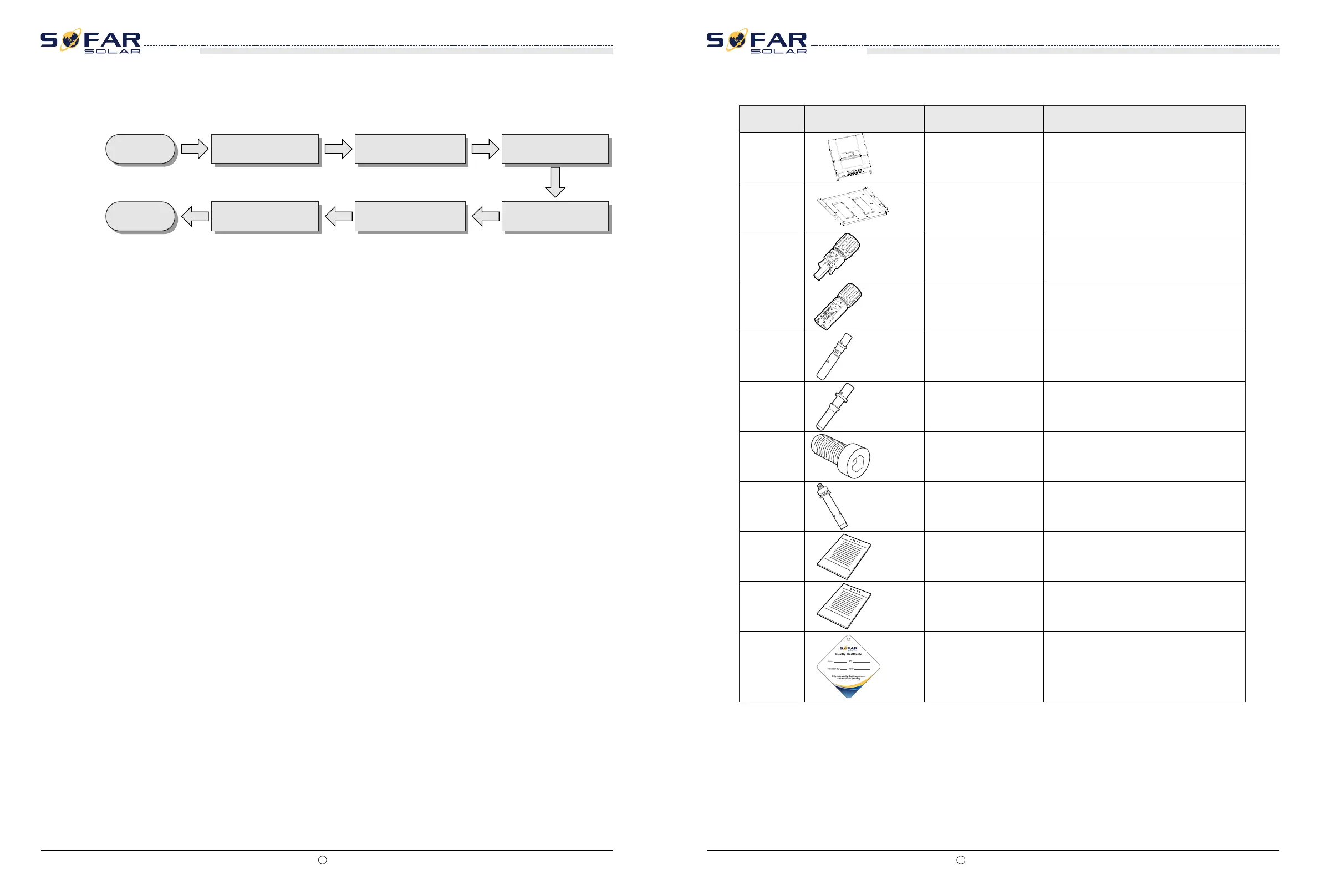

Figure3-1 Installation flowchart
Start
Check before
installation
Prepare installation
tools
Determine the
installation position
Moving the SOFAR
10-20KTL
Installation the rear
panel
Installation the
SOFAR 10-20KTL
End
3.2 Checking Before Installation
Checking Outer Packing Materials
Checking Deliverables
Packing materials and components may be damaged during transportation. Therefore, check
the outer packing materials before installing the SOFAR 10-20KTL. Checking the surface of
packing materials for damage, such as holes and cracks. If any damage is found, do not
unpack the SOFAR 10-20KTL and contact the dealer as soon as possible. You are advised to
remove the packing materials within 24 hours before installing the SOFAR 10-20KTL.
All rights reserved Shenzhen SOFARSOLAR Co ., Ltd.
C
15
All rights reserved Shenzhen SOFARSOLAR Co ., Ltd.
C
16
No.
1
Pictures
2
3
4
5
6
7
8
9
10
11
1PCS
1PCS
4PCS
SOFAR 10-20KTL
Rear panel
DC+ input terminal
DC- input terminal
Metal terminals secured to DC+ input
power cables
M6 Hexagon screws
M8*80 Expansion bolts used to secure the
rear panel to the wall
Manual
The warranty card
Certificate
Table3-1 shows the components and mechanical parts that should be delivered
Quantity Description
4PCS
4PCS
4PCS
1PCS
6PCS
1PCS
1PCS
1PCS
Metal terminals secured to DC- input
power cables
SOFAR 10K~20KTL
User manual
SOFAR 10K~20KTL
User manual
