Sofarsolar SOFAR 10K - Determining the Installation Position; Moving the SOFAR 10-20 KTL

80
cm
50 cm 50 cm
50
cm
OK OK NO OK
OK OK NO
NO
NO
Minimum installation distance for single SOFAR 10-20KTL
Determine an appropriate position for installing the SOFAR 10-20KTL.
Comply with the following requirements when determining the installation position:
3.4 Determining the Installation Position

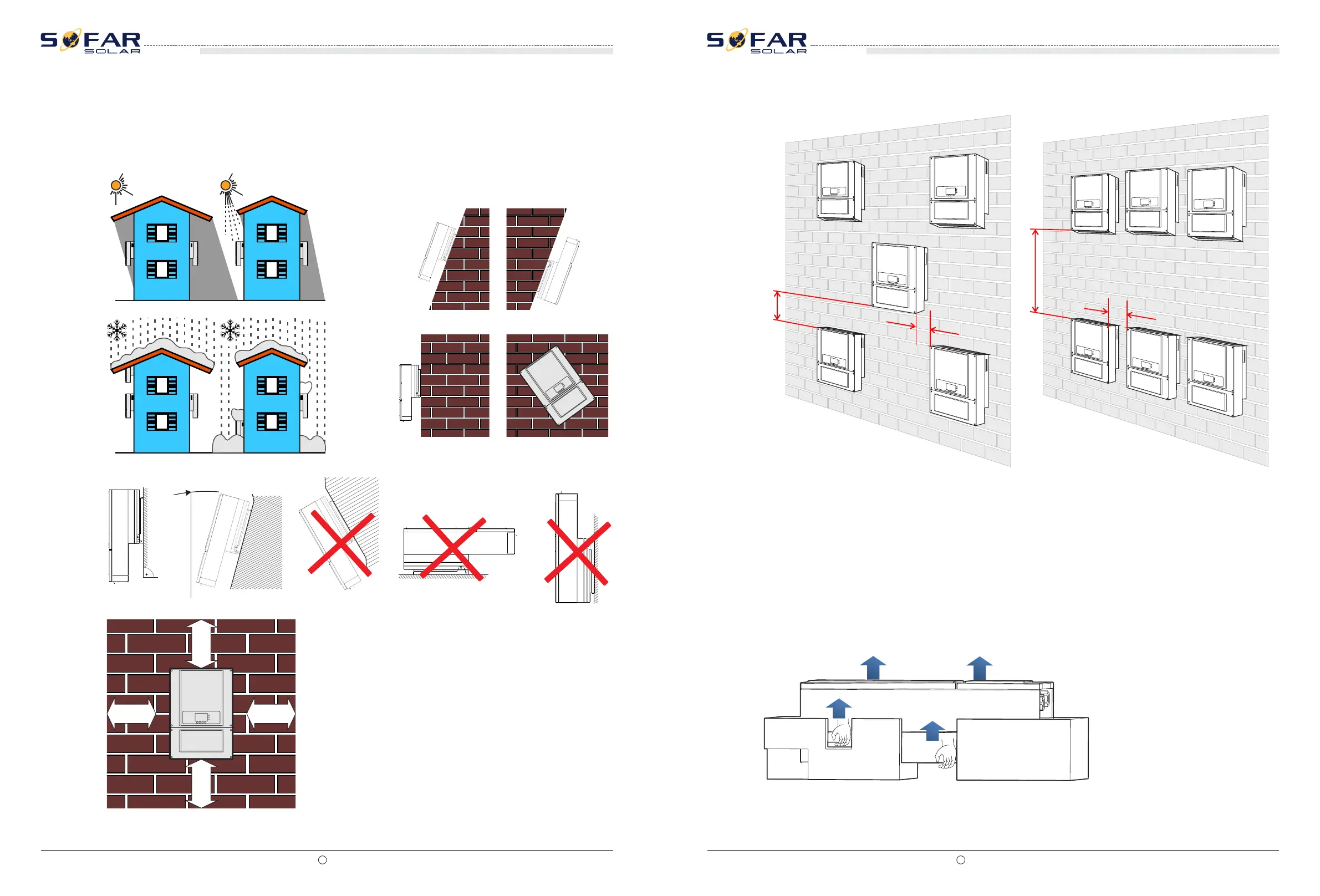

Figure 3-2 Installation position requirements
All rights reserved Shenzhen SOFARSOLAR Co ., Ltd.
C
19
All rights reserved Shenzhen SOFARSOLAR Co ., Ltd.
C
20
max 15º
OK NO
NO NO
Many SOFAR 10-20KTL installation
300mm
100mm
1000mm
200mm
This topic describes how to move the SOFAR 10-20KTL to the installation position
horizontally
Step 1 Opening the packing, insert hands into the slots on both sides of the SOFAR 10-20KTL
and hold the handles, as shown in Figure 3-3 and Figure 3-4. Two persons are required to
move the SOFAR 10-20KTL.
Figure 3-3 Moving the SOFAR 10-20KTL (1)
3.5 Moving the SOFAR 10-20KTL
Procedure
SOFAR 10K~20KTL
User manual
SOFAR 10K~20KTL
User manual
