ELECTRICAL CONNECTIONS
SOFAR 3 ... 6KTLM-G3 39

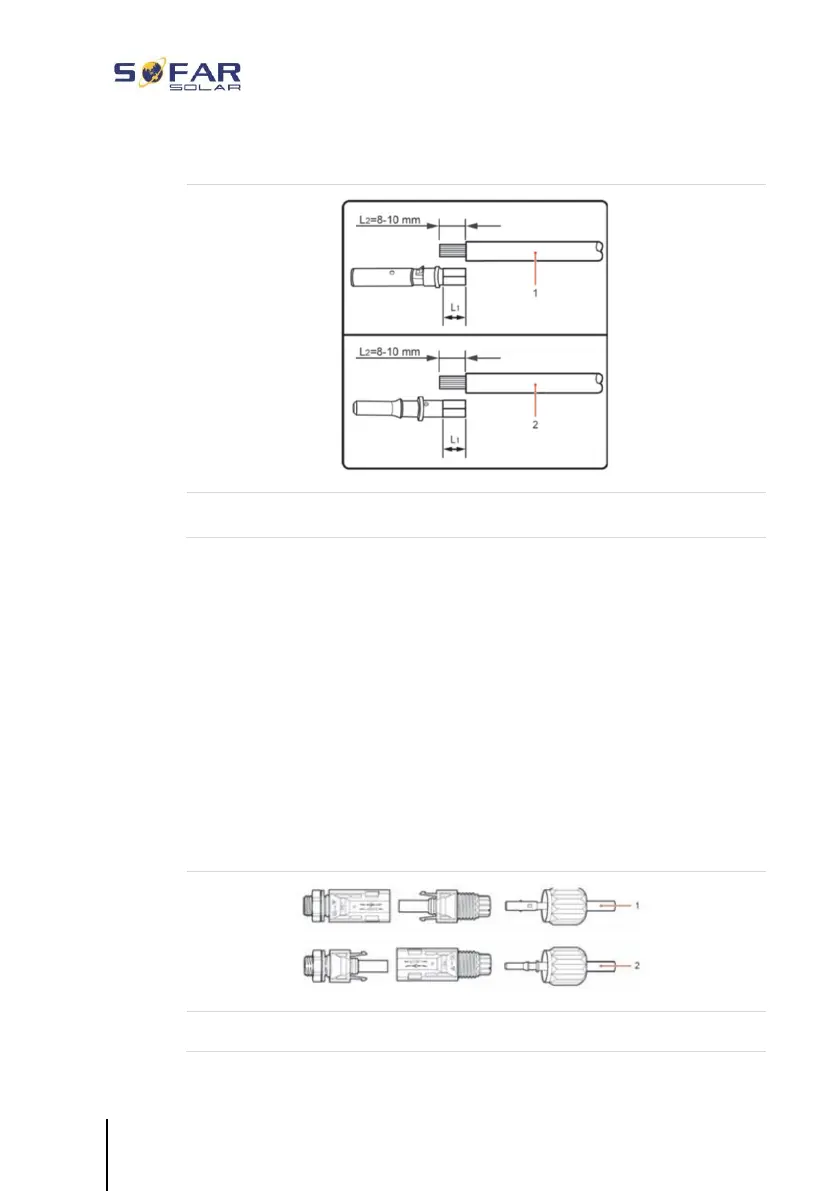

2. Remove the insulation of the cables:
①
Positive DC cable
②
Negative DC cable
Note: L2 is 2 to 3 mm longer than L1
3. Insert the positive and negative DC cables into the corresponding
cable glands.
4. Crimp the DC cables. The crimped cable must be able to withstand
a tractive force of 400 Nm.
①
Positive power cable
②
Negative power cable
