ELECTRICAL CONNECTIONS
42 SOFAR 3 ... 6KTLM-G3

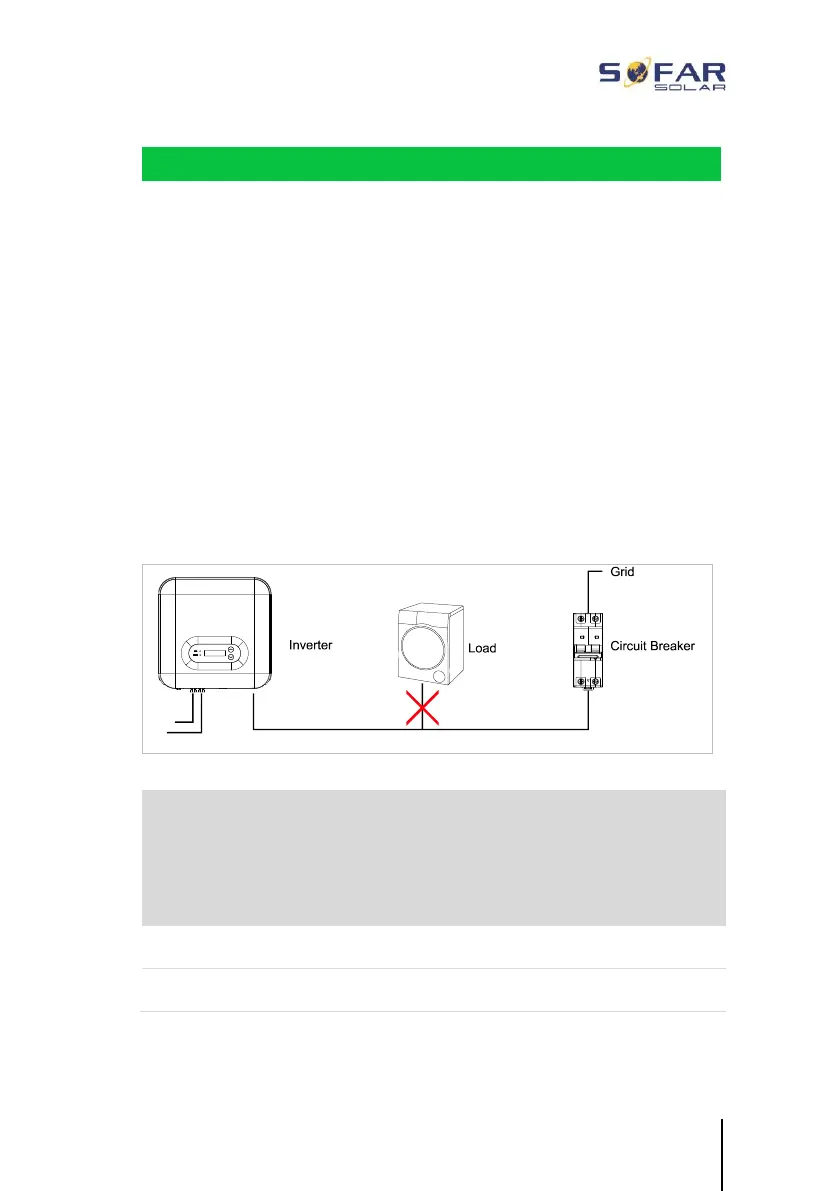

NOTE
• The inverter SOFAR 3 ... 6KTLM-G3 has a built-in AFI
(univ. sensitive residual current protection). If an external
AFI is required, we recommend an AFI type A featuring a
residual current of 100 mA or higher.
• Please follow the national rules and regulations for the
installation of external relais or circuit breakers!
Dimensioning
The AC output cables are three-wire cables for outdoor areas. To
simplify the installation process, use flexible cables. The
recommended cable specifications are listed in the following table.
Model
3KTLM
-G3
3.6KTLM
-G3
4KTLM
-G3
4.6KTLM
-G3
5KTLM
-G3
5KTLM
-G3-A
6KTLM
-G3
Cable (copper) (mm²)
≧6
≧6
≧6
≧10
≧10
≧10
≧10
AC disconnector (A)
20
25
25
32
32
32
32
