ELECTRICAL CONNECTIONS
58 SOFAR 3 ... 6KTLM-G3

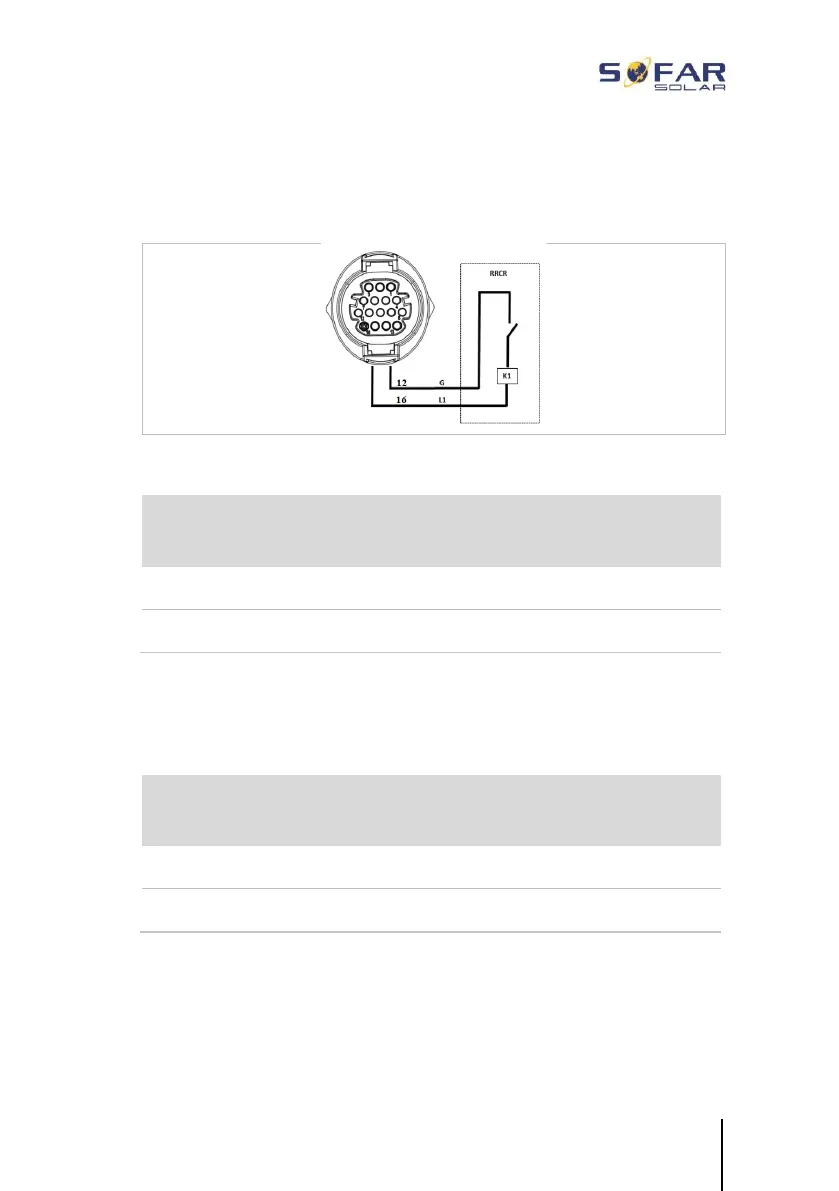

Logic interface for EN50549-1:2019
The active power output can be ended within five seconds following a
command to the input interface.
Functional description of the terminal
Pin
Name
Inverter
Radio ripple control
receiver
16
L1
Relay 1 input
K1 - output relay 1
12
G
Earth
Relay, earth
The inverter is preconfigured on the following power levels.
Relay status: Closing is 1, opening is 0
L1
Active
power
Power drop rate
Cos (φ)
1
0%
< 5 seconds
1
0
100%
/
1
