Technical Manual 9200
REF: 380/5 6
2. Processor technical characteristics
2.1 Electronic device size
The electronic box has the purpose to be fitted in a panel, close to the process line. The collar is the
only visible part, composed of a face plate and a LCD screen. It is continuously displaying the
viscosity value and, in the case there is a Pt100 probe, the temperature value.
The ID label is stick on the bottom of the box. Main information is written down. There is also another
sticker on the back panel to remind how to connect the sensor, the outputs and the power
supply (see §2.3).
It has an IP20 rating. Its weight is about 240 g.

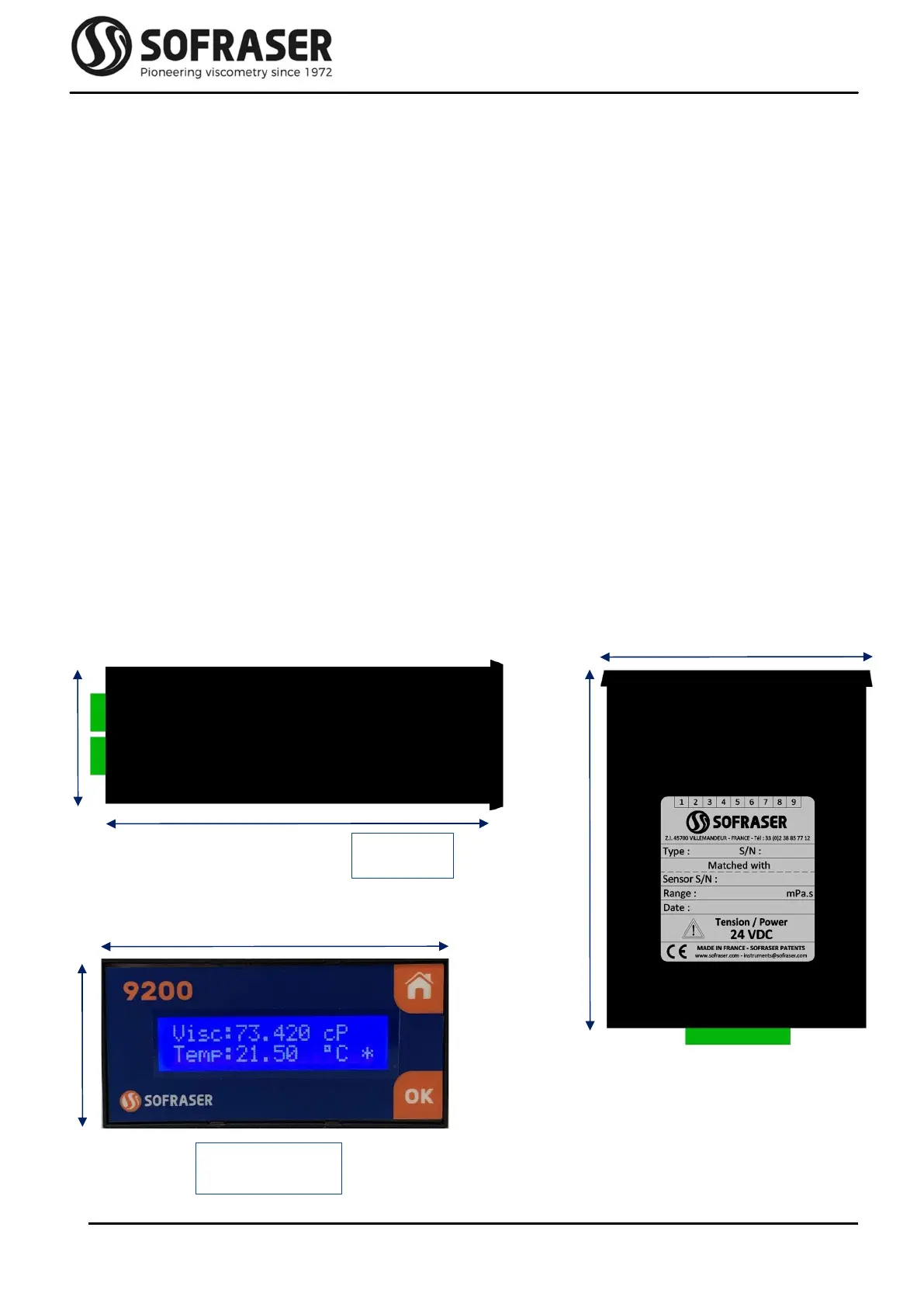

Hereunder are the different views and the associated dimensions (in mm) of the device.
Collar (visible part): 48 * 96 * 10
Fitted part: 43 * 90 * 115
Panel cut out: 44 * 91
43 mm
115 mm
96 mm
Left side
96 mm
48 mm
124 mm
Front panel
