MIVI Technical Manual
REF: 379/4 16
Same precaution must be followed when removing the MIVI sensor from its mounting accessory.
As soon as the sensor is removed, screw immediately its flow damper tube in order the se-
cure the rod.
In any case when moving or shipping don’t forget to install back the flow damper on the head of
the MIVI sensor in order to secure the rod.

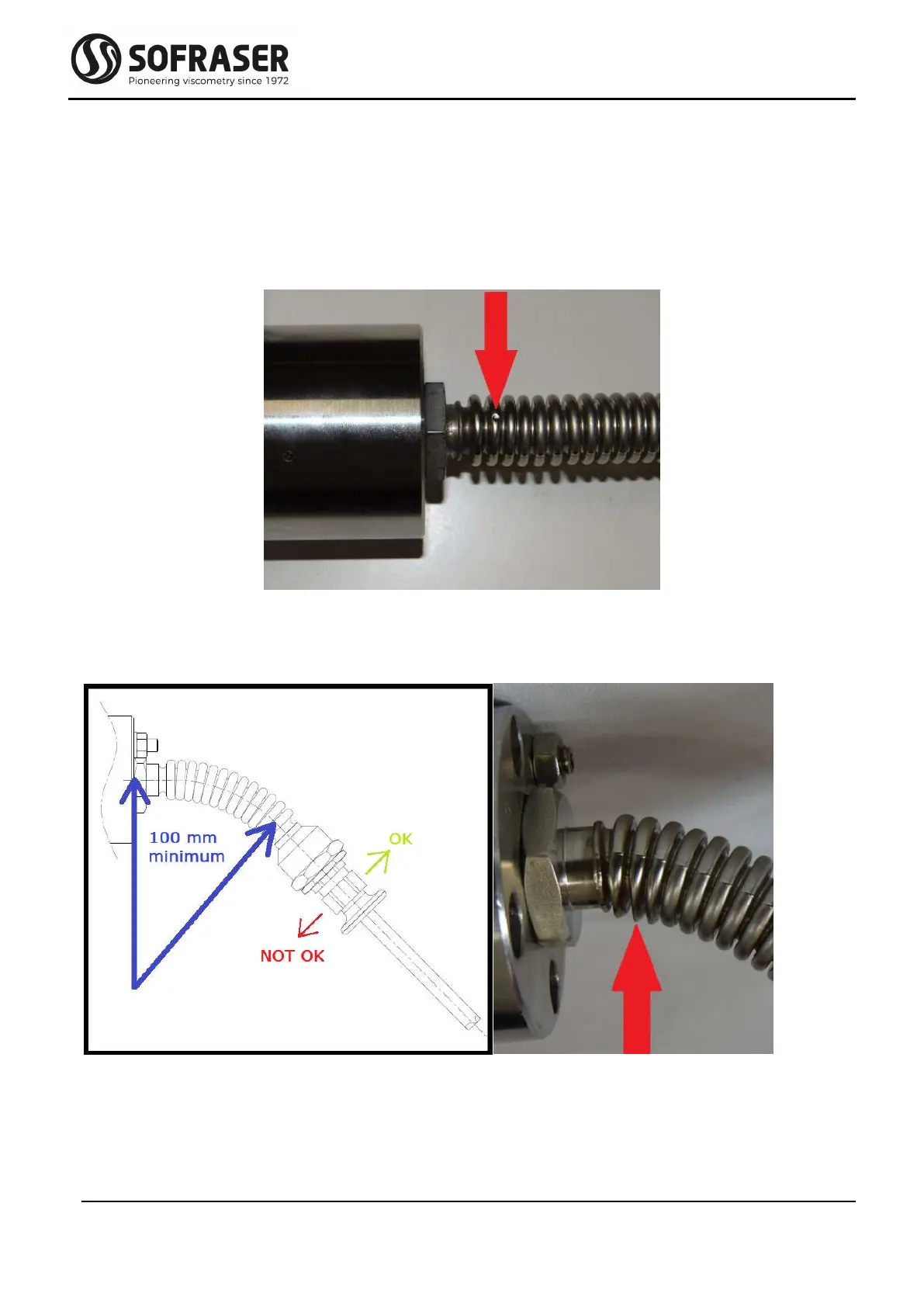

Don’t knock the flexible pipe or the cable gland; the knocking the flexible pipe or the cable gland
can create damages and leaks.
The minimal bending radius at the flexible pipe (electric outlet) is of 100 mm.
A shorter radius can crush the turns, initiate cracks, generate leakage inside of the MIVI, then fail-
ure.
Don’t knock, pinch, crush, twist or bend the cable. Its minimum bending radius is 100 mm.
Don’t modify the length of the cable; modification may impact the response of the viscome-
ter. The length of the cable of ATEX Ex-proof MIVI sensor must not be reduced and must
remain at least equal to 3 meters.
