Appendix A: SPECIFIC CONDITIONS OF USE FOR ATEX
MIVI-ADF
Ambient temperature for gas atmosphere:
Ambient temperature depending of the different parts of this apparatus
Temperature class
Main body and sensor part
(without pipe)
Entry of enclosure (without
pipe)
Entry of enclosure (with pipe)
T1 -20°C ≤ Tamb ≤ +300°C N/A
-20°C ≤ Tamb ≤ +190°C
T2 -20°C ≤ Tamb ≤ +285°C N/A
T3 -20°C ≤ Tamb ≤ +190°C -20°C ≤ Tamb ≤ +190°C
T4 -20°C ≤ Tamb ≤ +125°C -20°C ≤ Tamb ≤ +125°C -20°C ≤ Tamb ≤ +125°C
T5 -20°C ≤ Tamb ≤ +90°C -20°C ≤ Tamb ≤ +90°C -20°C ≤ Tamb ≤ +90°C
T6 -20°C ≤ Tamb ≤ +75°C -20°C ≤ Tamb ≤ +75°C -20°C ≤ Tamb ≤ +75°C
Ambient temperature for gas and dust atmosphere:
Temperature class
Ambient temperature depending of the different parts of this apparatus
Gas Dust
Main body and sensor part
(without pipe)
Entry of enclosure
(without pipe)
Entry of enclosure
(with pipe)
T1/T2/T3 T180 -17°C ≤ Tamb ≤ +180°C -17°C ≤ Tamb ≤ +180°C -17°C ≤ Tamb ≤ +180°C
T4 T125 -17°C ≤ Tamb ≤ +125°C -17°C ≤ Tamb ≤ +125°C -17°C ≤ Tamb ≤ +125°C
T5 T90 -17°C ≤ Tamb ≤ +90°C -17°C ≤ Tamb ≤ +90°C -17°C ≤ Tamb ≤ +90°C
T6 T75 -17°C ≤ Tamb ≤ +75°C -17°C ≤ Tamb ≤ +75°C -17°C ≤ Tamb ≤ +75°C
Other specific conditions:
The cable and the cable entry used shall have an operating temperature equal at the maximum ambient temperature at
the entry of enclosure.
The entry of this apparatus is equipped with cable gland certified with a protection mode compatible for the intended use.

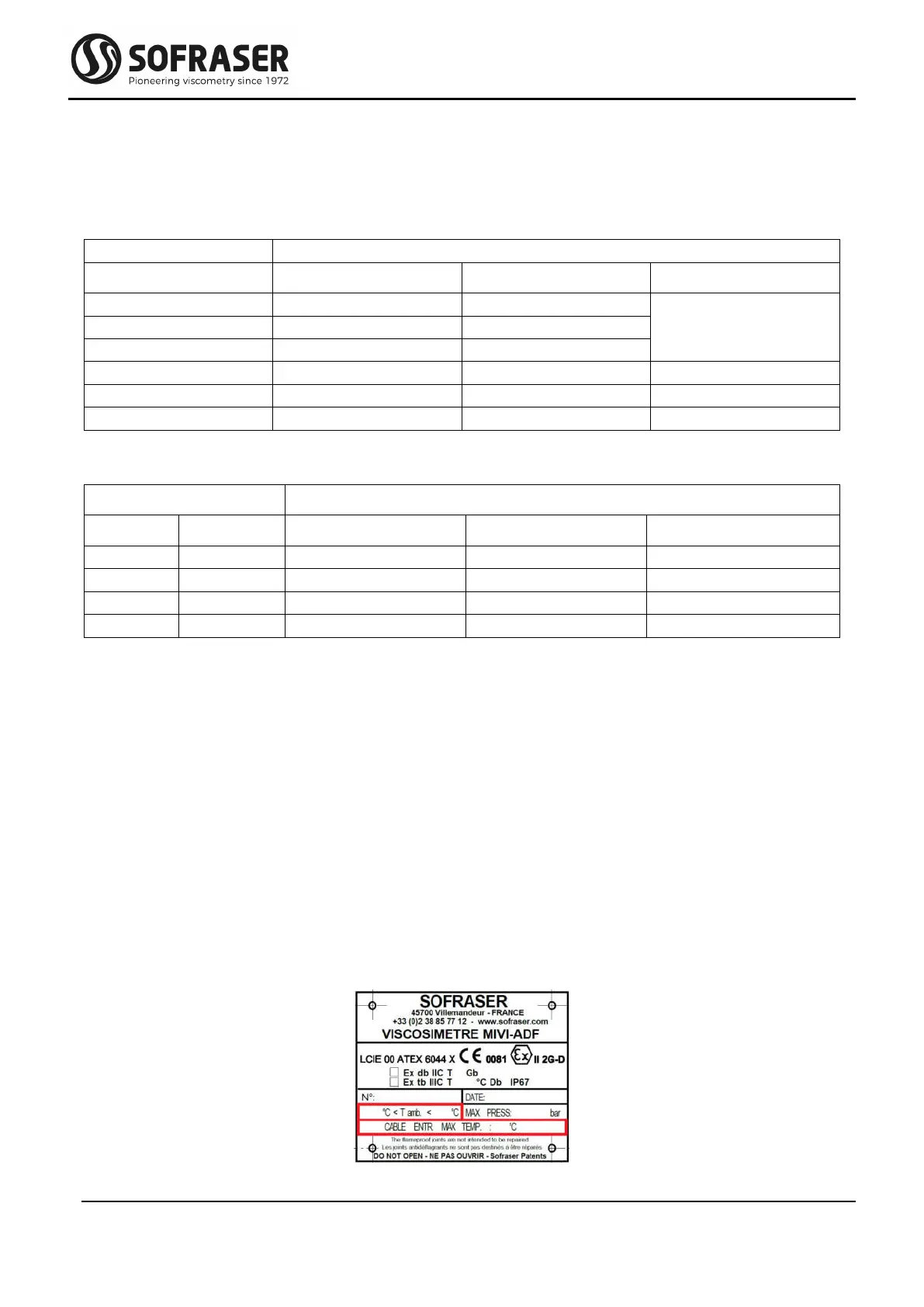

EXAMPLE of link with marking plate specific information, and wording
Example for a standard temperature MIVI sensor Ex db IIC T3 Gb
Sensor part = vibrating rod (ambient temperature must remain within the range “0 °C < T amb. > 190 °C”
Main body = body of the MIVI sensor (ambient temperature must within the range “0 °C < T amb. > 190 °C”
Enclosure = MIVI sensor from vibrating rod to entry of the cable gland
Pipe = flexible tube or rigid tube
Entry of enclosure = entry of cable gland (ambient temperature must remain below “CABLE ENTR MAX TEMP.: 100 °C”
