Sojet ELFIN ID - Page 19

for

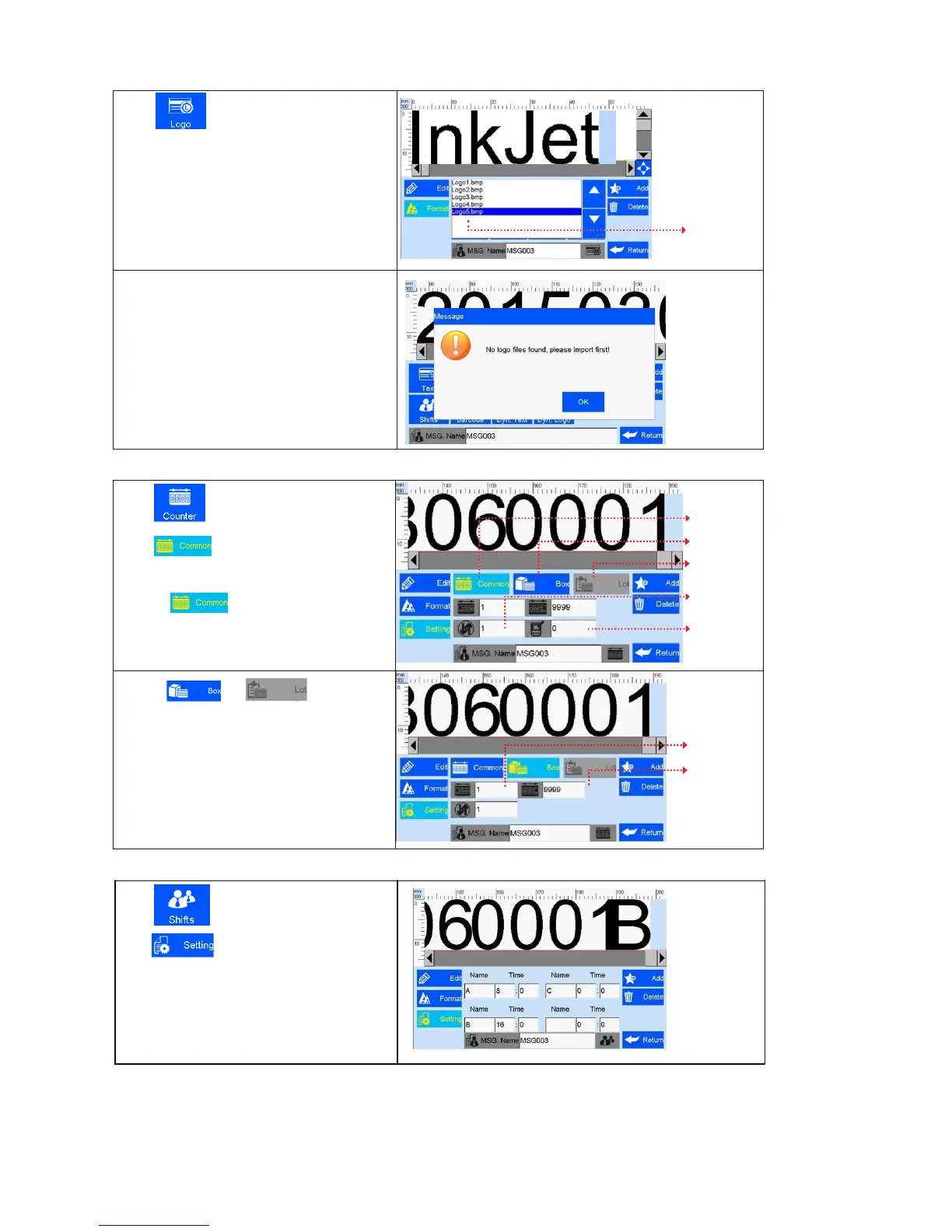

5.3.5 Add Image Logo
Click to add object
image Logo.
Select a logo on file list by page up
and down (see Figure 13).
file list
(Figure 13)
Note: When there is no image file found,
a message box appears to prompt image
import (see Figure 14).
See Section 5.5.1 Image Management
for image logo import.
(Figure 14)
5.3.6 Add Counter
Click to add object counter.
Click to for option of common
counter, box number, lot number.
A. Click for common counter setting:
minimum value, maximum value, stepping
value, repetition number.
Commo
n
counter
Box No.
Lot No.
Stepping
value
Repetition
number
B. Click and option of box
number and lot number setting: minimum
value, maximum value, stepping value for box
number and lot number (see Figure 16).
Note: There is no repetition number for box
number or lot number.
Minimum
value
Maximum
value
(Figure 16)
5.3.7 Add Shift Code
Click
to add object “shift code”.
Click to enter setting
(see Figure 17).
Shift code: shift name and time for setting.
Shift name: maximum five characters.
Shift time: four different times for setting. Shift
code varies according to different time periods.
(Figure 17)
