Solar MPPT-10 - 4.3 Installation Process; Operation and Troubleshooting; 5.1 Button Functions

12
Mounting hole pitch: 60mm*178mm
Mounting hole diameter: Ф5mm
Height*Width*Thickness: 92.5mm*188mm*55.3mm
Connecting terminals: Maximum 6mm²
4.2 Connecting Diagram
Fuse
①
②
③
Temperature Sensor

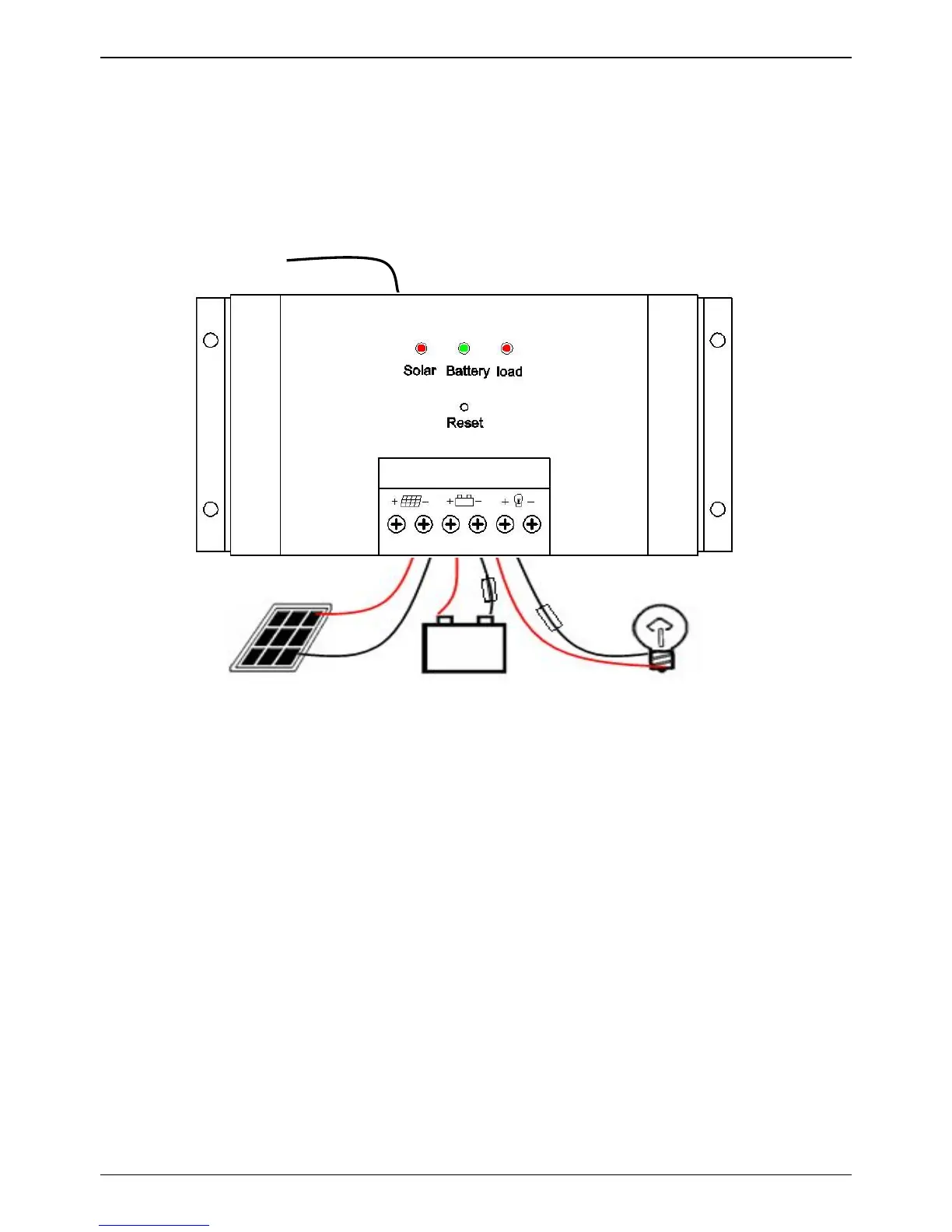

Figure 4-2: Connecting Diagram
4.3 Wiring
A、Choose the appropriate cables requested as Chapter 3. Prepare 4 sets
of M5 screws (used to fix the controller on the wall or other vertical
plane).
B、Prepare cutting pliers, cross screwdriver and multi-meter, etc.
