LEDs: three LEDs indicate, by color and state (on/ off/ blinking
(1)
/ flickering
(2)
/alternating
(3)
), different system information, such as errors or performance
indications.
Generally, the main LED indications are:
Blue ON - the inverter is communicating with the monitoring platform
Green ON - the system is producing
Green blinking - AC is connected but the system is not producing
Red ON - system error

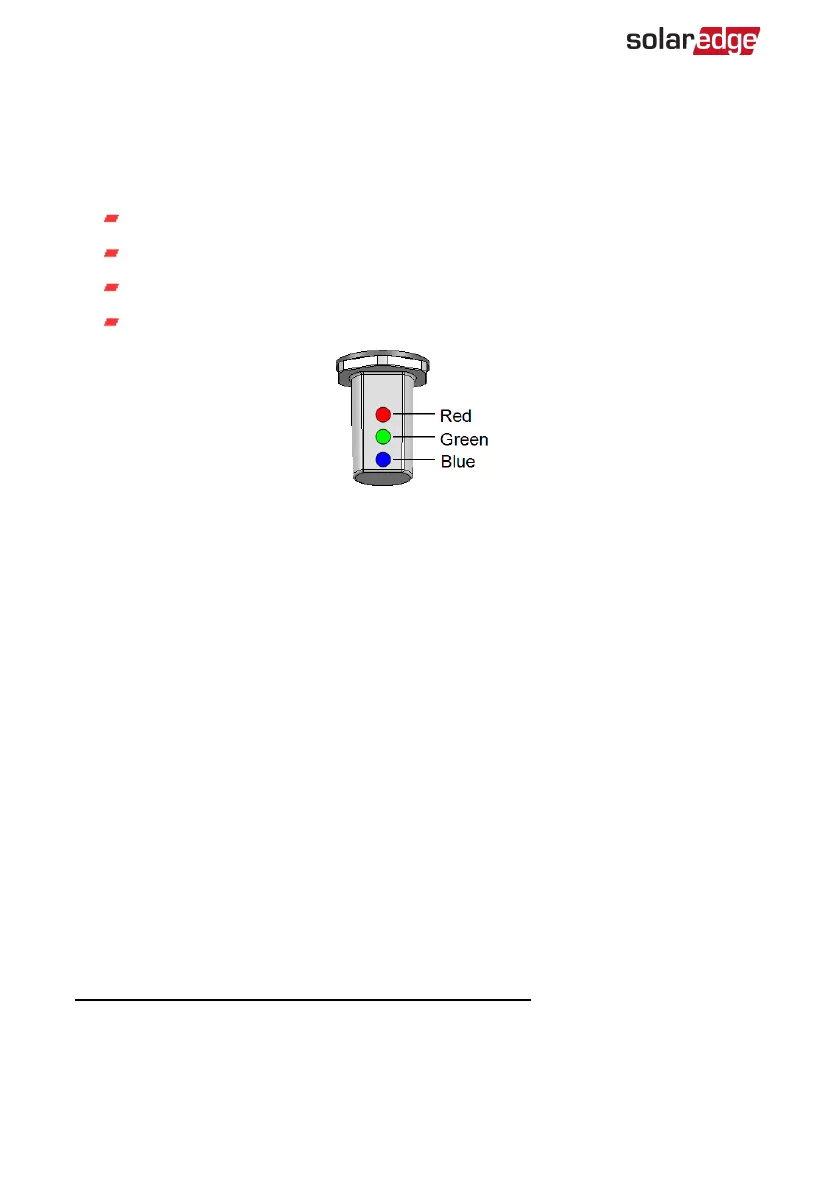

Figure 8: LEDs
(1)
Blinking = Turns ON and OFF for the same duration
(2)
Flickering = Turns ON for 100 mS and turns OFF for 5 seconds
(3)
Alternating = Alternate LEDs flash
-Three Phase Inverter with Synergy Technology Installation MAN-01-00402-1.2
24 Primary Unit Interface
