CAUTION!
When removing the cover, make sure not to damage internal components.
SolarEdge will not be held responsible for any components damaged as a
result of incautious cover removal.
Creating an Ethernet (LAN) Connection
This communication option enables using an Ethernet connection to connect the
inverter to the monitoring platform through a LAN.
Ethernet cable specifications:
Cable type – a shielded Ethernet cable (Cat5/5E STP) may be used
Maximum distance between the inverter and the router – 100 m/ 330 ft.
NOTE
If using a cable longer than 10 m / 33 ft in areas where there
is a risk of induced voltage surges by lightning, it is
recommend to use external surge protection devices. For
details refer to: http://www.solaredge.com/files/pdfs/lightning_surge_
protection.pdf

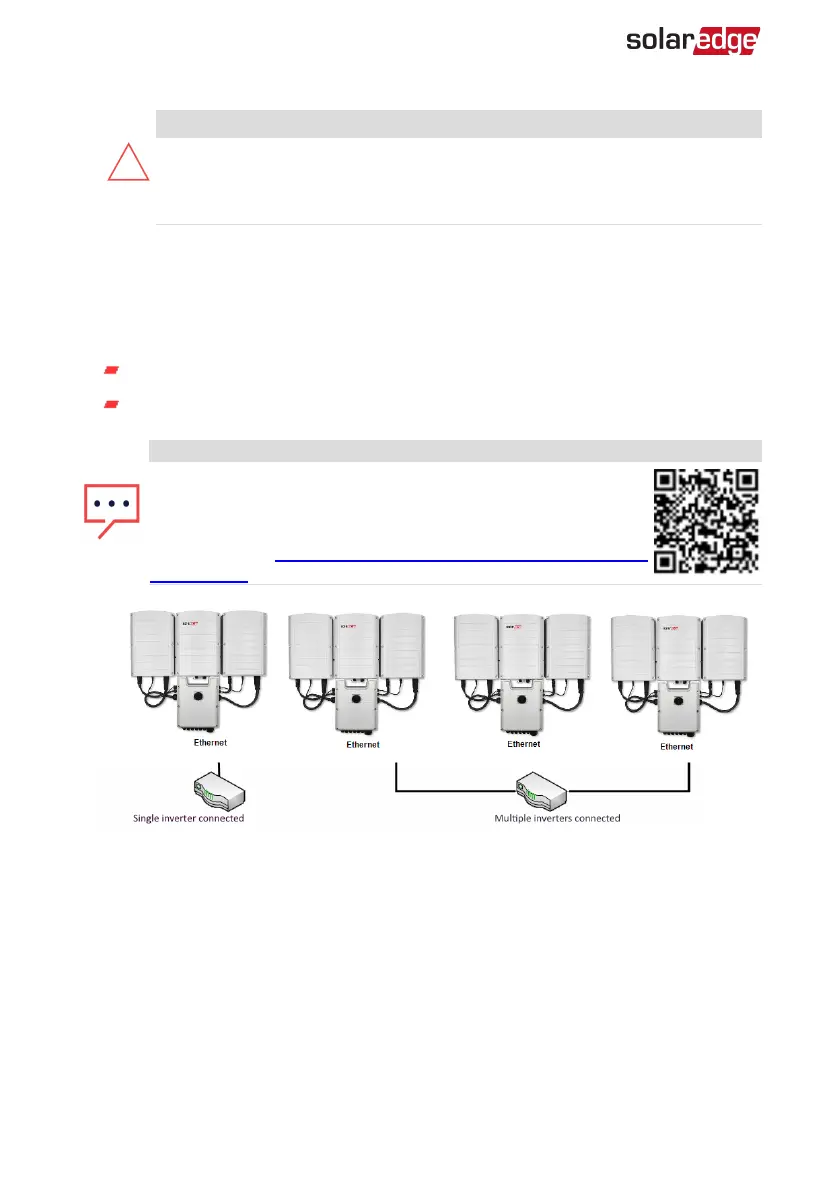

Figure 32: Example of Ethernet connection
-Three Phase Inverter with Synergy Technology Installation MAN-01-00402-1.2
66 Creating an Ethernet (LAN) Connection
