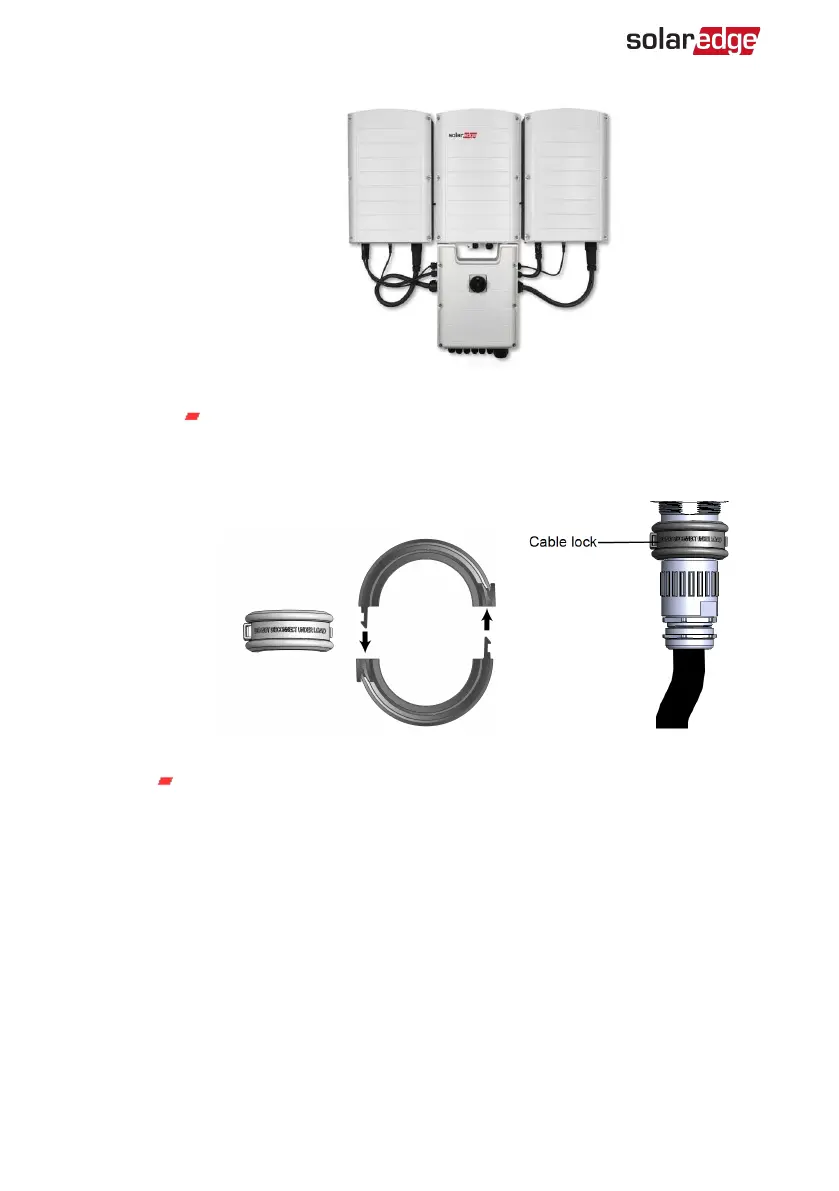

Figure 19: Connecting the Connection Unit to the Secondary Unit
Assemble the two parts of the cable lock (supplied with the inverter)
around the cable connector, making sure that the orientation of the
printed text on the lock is correct. Push the parts together until they
click to lock. To open the lock use a flat-bladed screwdriver.
Figure 20: Cable lock
DC cables to DC+ and DC- connectors
-Three Phase Inverter with Synergy Technology Installation MAN-01-00402-1.2
34 Mounting and Connecting the Primary and Secondary Unit(s)
