Single Inverter, Wireless Connection
The inverter is wirelessly connected to the monitoring platform
via the Wi-Fi Gateway. The Wi-Fi Gateway is connected to the
home router via Ethernet. One or two optional repeaters
extend the Wi-Fi range.

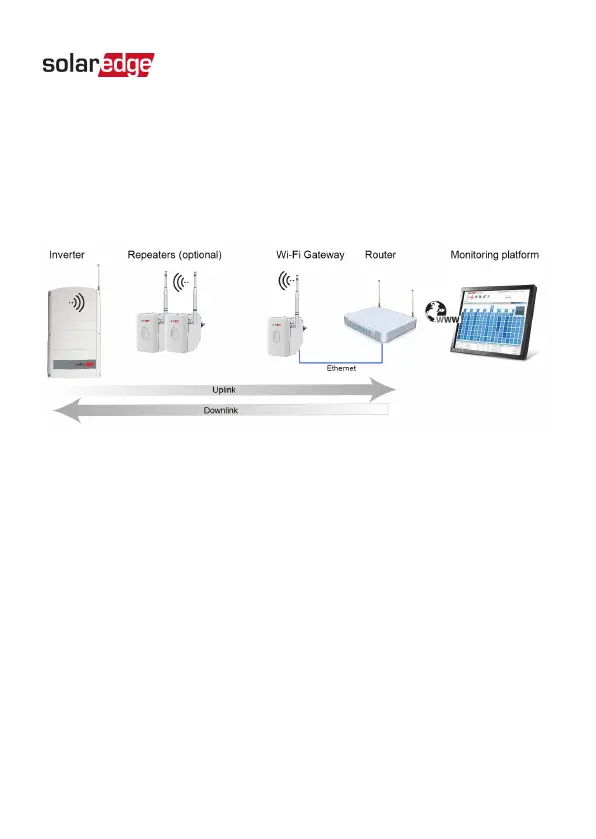

Figure 2: Single inverter, wireless connection
Multiple Inverters
Multiple devices, RS485 Master/ Slaves
Multiple inverters are connected in an RS485 bus. The master is
connected wirelessly to the Wi-Fi Gateway. The Wi-Fi Gateway
is connected to the home router via Ethernet. One or two
optional repeaters extend the Wi-Fi range.
Wi-Fi Gateway and Repeater Installation Guide MAN-01-00559-1.1
Chapter 1: Overview 11
