Solartech PD600 User Manual

PD series of solar DC pumping controller operation manual Products Introduction
3
version and hardware version that will provide important basis for product
application, maintenance and after service.

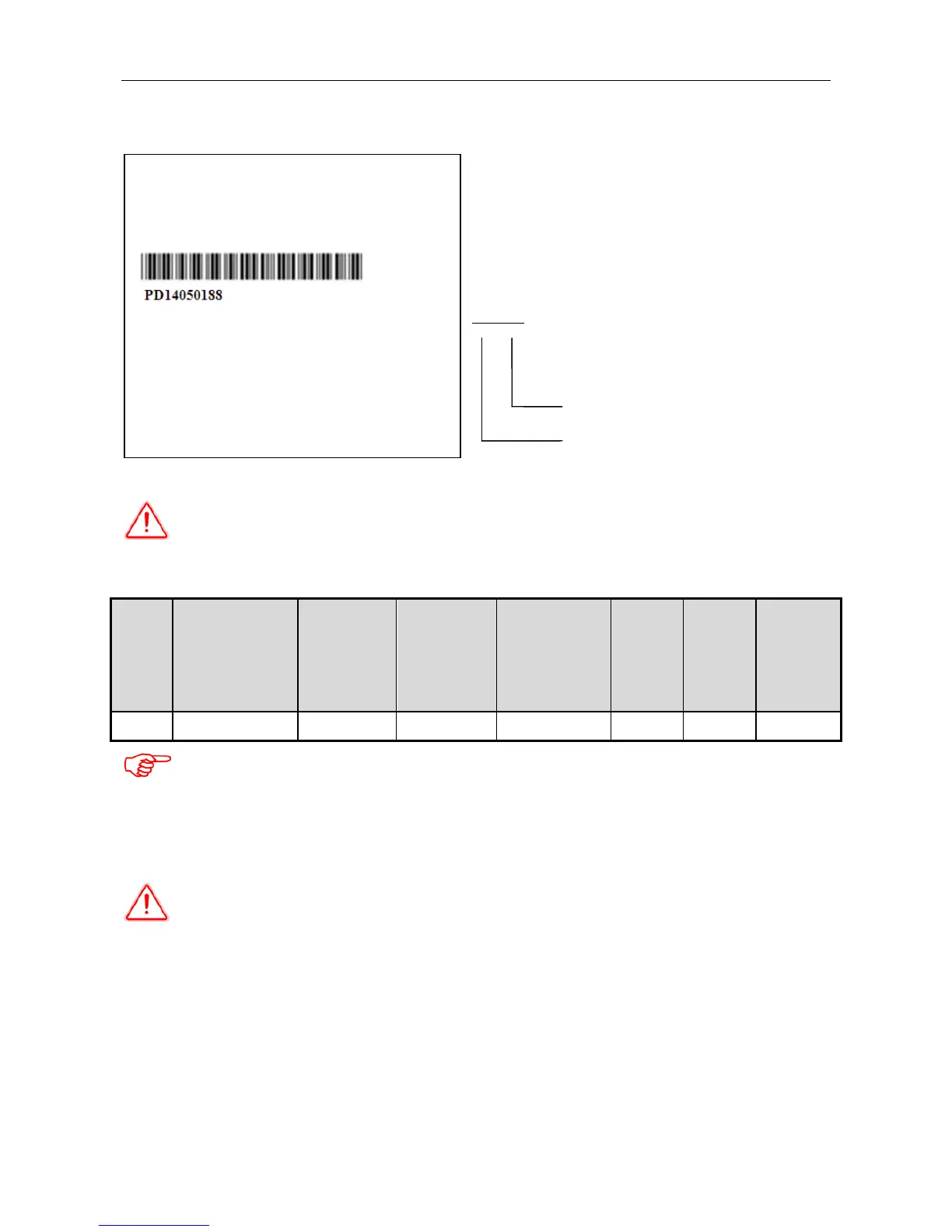

Fig. 1-3 Product nameplate and type description
Warning
:
Do not tear off the product's nameplate label.

Product specification and technical index
Model
Rated voltage of
adapting motor
Max. DC
input power
Max. open
circuit
voltage
Recommended
MPP voltage
Rated
output
power
Rated
output
current
Output
frequency
PD600 48V 1000W 150VDC 60-120VDC 600W 13A 0 ~ 110Hz
Note
:
Maximum output frequency of the controller is limited by DC input
voltage. When DC input voltage is low(e.g.60V), the controller may not output its
maximum output frequency.
Warning
:
Please be sure to select the appropriate model according to the solar
array and motor load.
PD600
Rated Output Power (W)
Product series
Product name: Solar DC Pumping Controller
Model: PD600
Series no.:
DC input voltage: Vmpp > 60VDC, Voc < 150VDC
Rated power: 600W
Max efficiency: 98%
Ambient temperature: -20~+60℃
Protection class: IP52

Solartech PD600 Specifications

General

Brand	Solartech
Model	PD600
Category	Controller
Language	English
