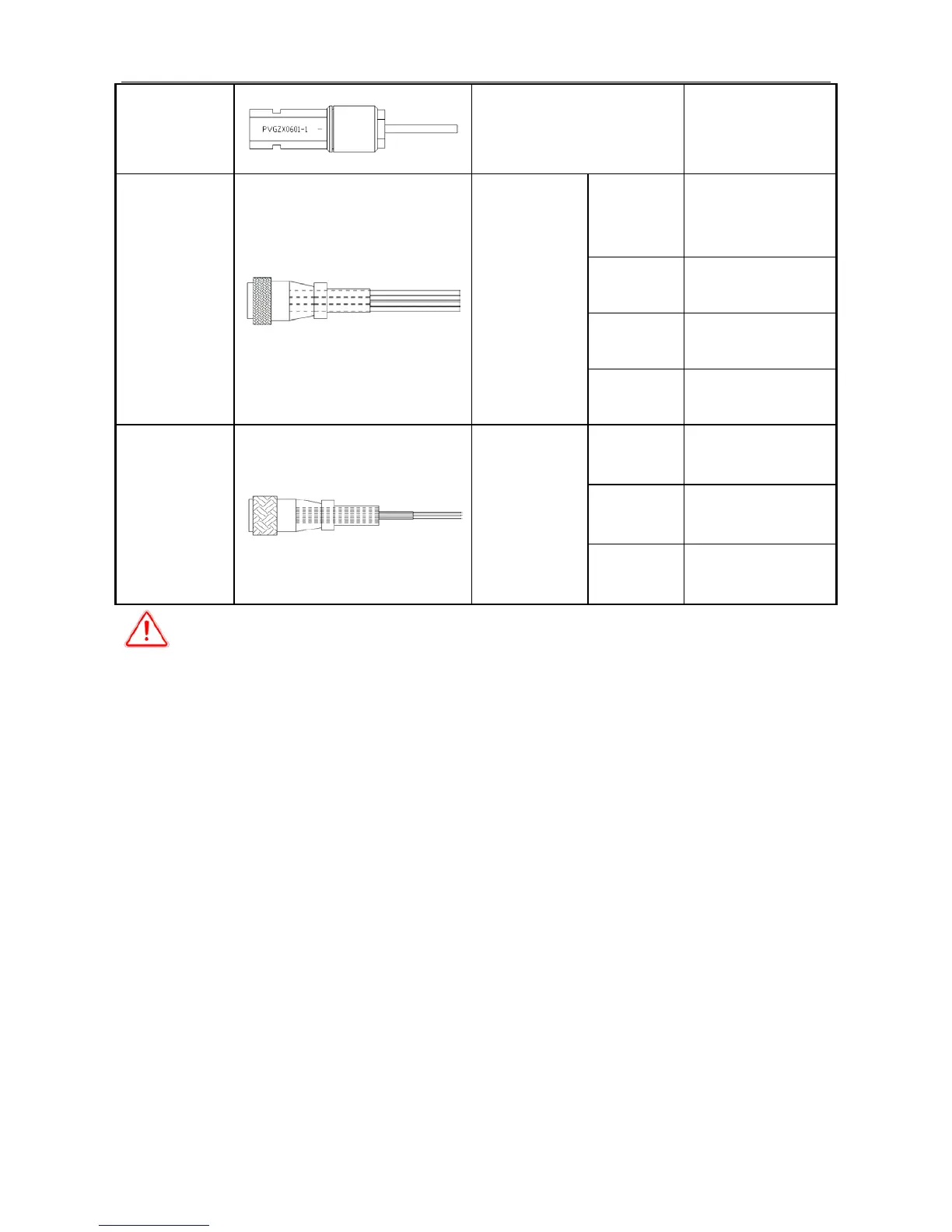

N
One-strand, black
Connect to negative
side of solar array
M Four-core wire
Yellow
green wire
Connect to protective
ground wire (yellow
green)
Red wire
Connect to U phase
of motor (black)
Yellow wire
Connect to V phase
of motor (brown)
Blue wire
Connect to W phase
of motor (blue)
S
White
three-core wire
Black wire
Connect to ground
signal wire
Red wire
Connect to well
signal wire
Yellow wire
Connect to tank
signal wire
Warning:
Please connect the wires according to the instruction, incorrect
connection may lead to abnormal operation of system.
Instruction of Water Level Float
PD series of solar DC pumping controller can work with water level floats for well
and tank. Water level float for well is used for warning of low water level of well,
water level float for tank is used for warning of full water tank.
Water level float has Normally-Open type and Normally-Close type. The difference is
as the picture showed below. Whether water level float is for well or for tank,
we
recommend the Normally-Open type of water level float
, which will contribute to
the fault diagnosis of water level float.
