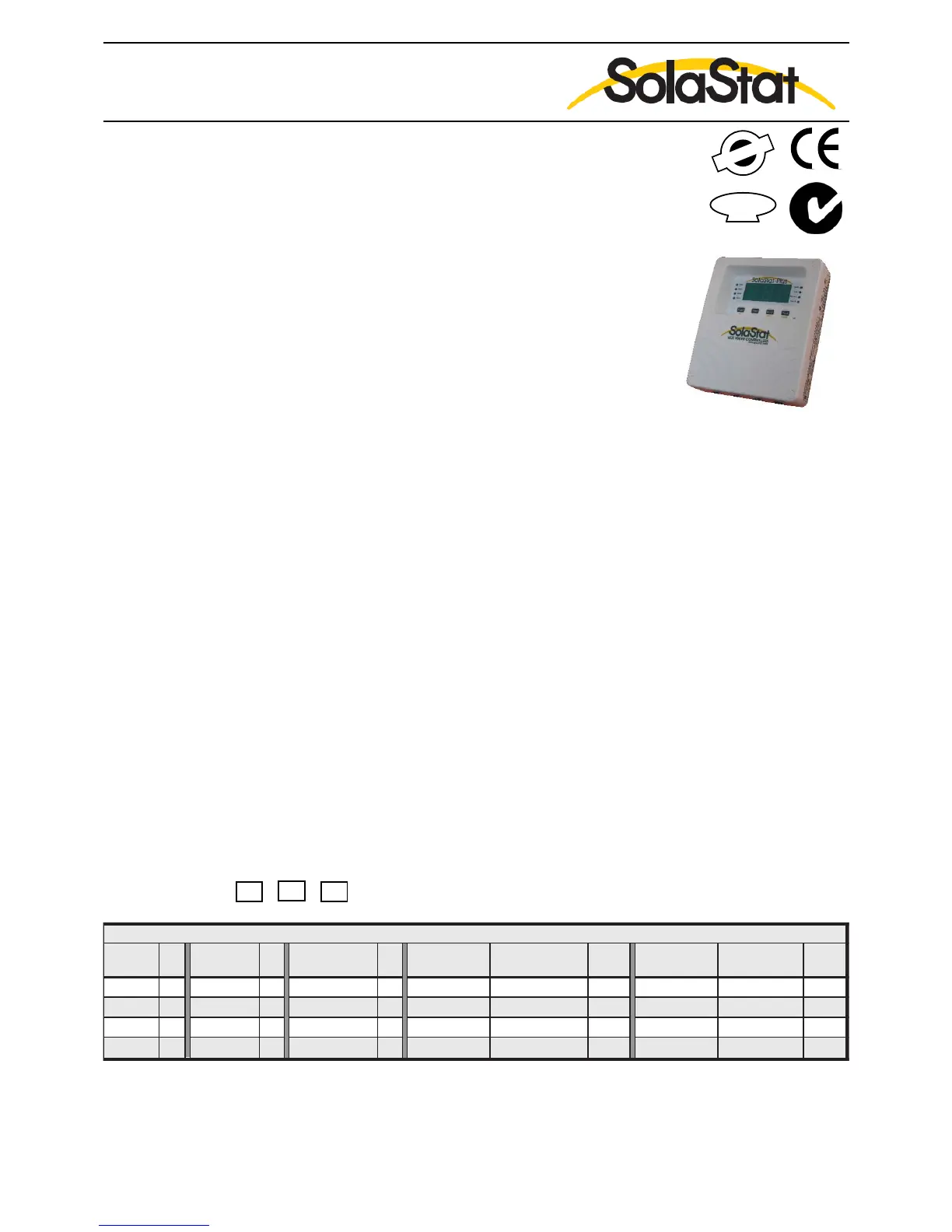

SolaStat-Plus.
Solar Hot Water Controller.
Features.
· Intelligent Heat Extraction From Solar Water Panels.
· Large 20mm Soft Green Digital LED Display c/w 8 Status Lights.
· High Quality, Efficiency, Reliability and +/-1C Accuracy.
· Stainless Steel, Water Resistant Temperature Sensors.
· Pre-wired with Mains Plugs and Sockets, no Electrician Required.
· Pre-Programmed to Customer’s Specification at No Extra Cost.
· All Values and Functions Installer Adjustable.
· Access Code Protected Front Panel Programming.
· Sensor Diagnostics and Smart Shutdown.
· Frost Protection Prevents Panels Freezing.
· Over Temperature Protection (Topout) for Ceramic Tap
and Ceramic Lined Hot Water Cylinders.
· Pump Timer for Pump Cavitation Recovery Option.
· Easy to Install with External Mounting Holes.
· Complies with Safety & EMC standards.
· Enclosure and cables UV resistant.
· Water Resistant and Rear Cable Entry Options.
· 1HP (750W) Relay Std.
Introduction.
SolaStat-Plus is Easy to Use with the advanced generation of smart, microprocessor based Differential
Solar Hot Water Controllers. The SolaStat-Plus is easy to install, easy to use, easy to programme and
visually appealing.
SolaStat-Plus has Advanced Functions and takes the basics of differential control, frost protection, topout
and add to these sensor diagnostics, smart shutdown, comprehensive status displays, digital temperature
display, with the options of pump timer for pump cavitation recovery, digital communications, remote dis-
play units, SolaData PC graphic datalogging and energy calculating software and smart control of the hot
water booster element for dramatically improved energy efficiency.
ICM (Instrumentation Control Manufacturing Ltd) has experience in designing and manufacturing Solar
Hot Water Controllers to Industrial Electronic Standards for over 15 years. This has earned ICM a reputa-
tion for Quality, Accuracy, Efficiency and Reliability.
Ordering Information.
SolaStat-Plus-1 Standard; 1 x 1hp Relay, Pump Timer On, Digital Display, 8 Status Lights,
2m Inlet Sensor, 2m Tank Sensor, 10m Panel Sensor, 2m Mains Cable and Pump Outlet.
SolaStat-Plus-2 Standard; 2 x 1hp Relay, Pump Timer On, Digital Display, 8 Status Lights,
2m Inlet Sensor, 2m Tank Sensor, 10m Panel Sensor, 2m Mains Cable, Pump and HWC Outlets.
SolaStat-Plus - - - - Adjustable Value Specify adjustable values as required.
Rly PT PS
Quality Assurance Programme.
The modern technology and strict procedures of the ISO9001 Quality Assurance Programme applied during
design, development, production and final inspection grant the long term reliability of the instrument.
Z495
ISO9001
E
G
I
S
T
E
R
R
E
D
S
U
P
P
I
R
E
L
TECHNOLOGY
& QUALITY
A
W A R D
19.01-3
* Functional with Dual Relay version only. Set to ‘OFF’ for Single Relay Version.
A dedicated swimming pool controller is available; SolaStat-Pool. It has a 2hp Relay and Pump Timer is Off.
High temperature silicon sensor cable, water resistant enclosure, and rear cable entry options are available.
