2.3 Qualified Installer
Warning!
All operations of T-BAT SYS-HV relating to electrical connection and
installation must be carried out by qualified personnel.
A skilled worker is defined as a trained and qualified electrician or installer who
has all of the following skills and experience:
Ÿ Knowledge of the functional principles and operation of on-grid systems
Ÿ Knowledge of the dangers and risks associated with installing and using
electrical devices and acceptable mitigation methods
Ÿ Knowledge of the installation of electrical devices
Ÿ Knowledge of and adherence to this manual and all safety precautions and
best practices
6
7
3 Product Introduction
3.1 Product Overview
For safety reasons, installers are responsible for familiarizing themselves with the
contents of this manual and all warnings before performing installation.

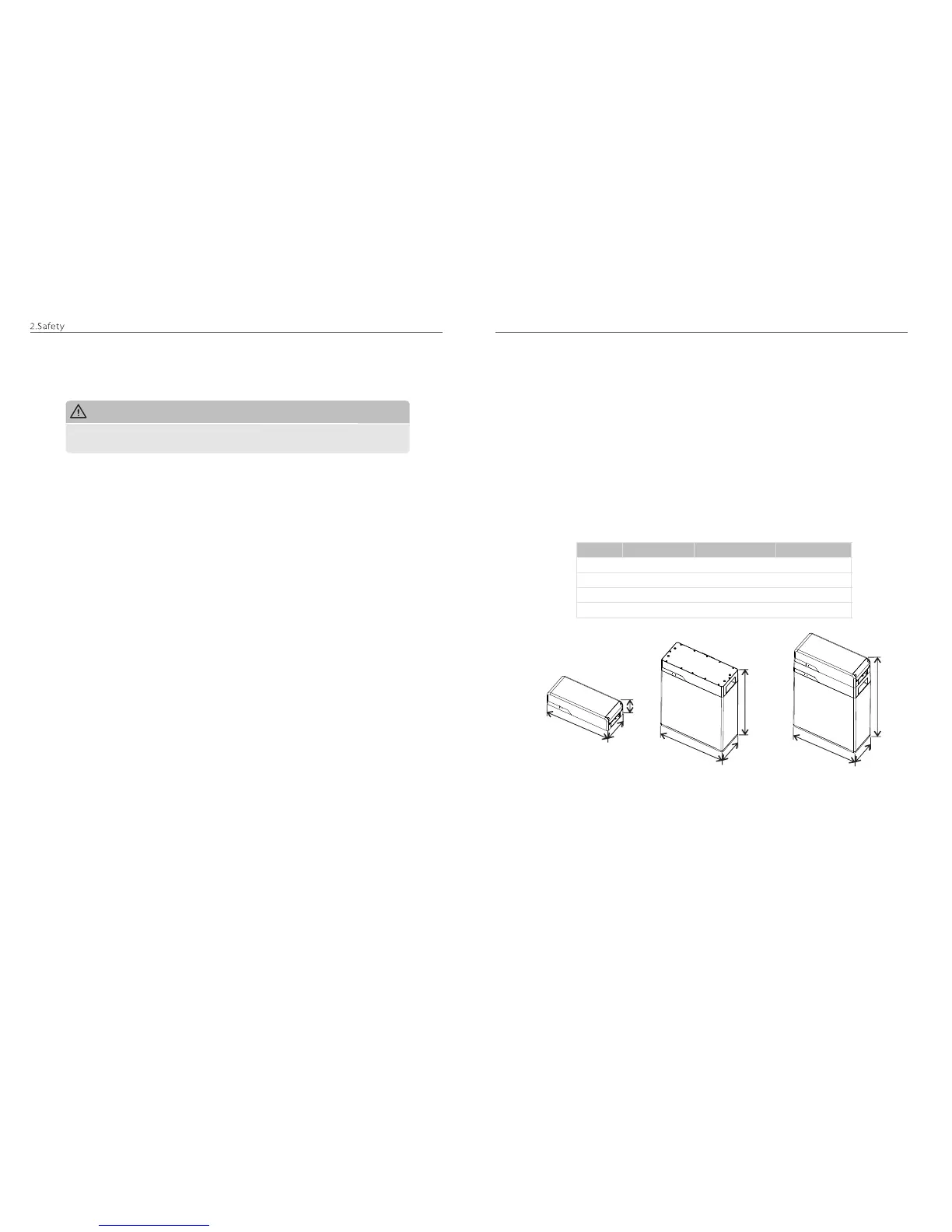

3.1.1 Demension and Weight
A battery management system (BMS) is any electronic system that manages a
rechargeable battery.
Battery module is a type of electrical battery which can be charged, discharged
into a load.
A battery system includes BMS and battery module(s).
461
189
105
464
193
588
464
193
693
BMS
(MC0500)
Battery Module
(HV10045/HV10063)
T-BAT SYS-HV
(BMS+battery module(s))
Length
Width
Height
Weight
MC0500 HV10045 HV10063
461mm
189mm
105mm
5.7kg
464mm
193mm
588mm
56.6kg
464mm
193mm
588mm
67.5kg
