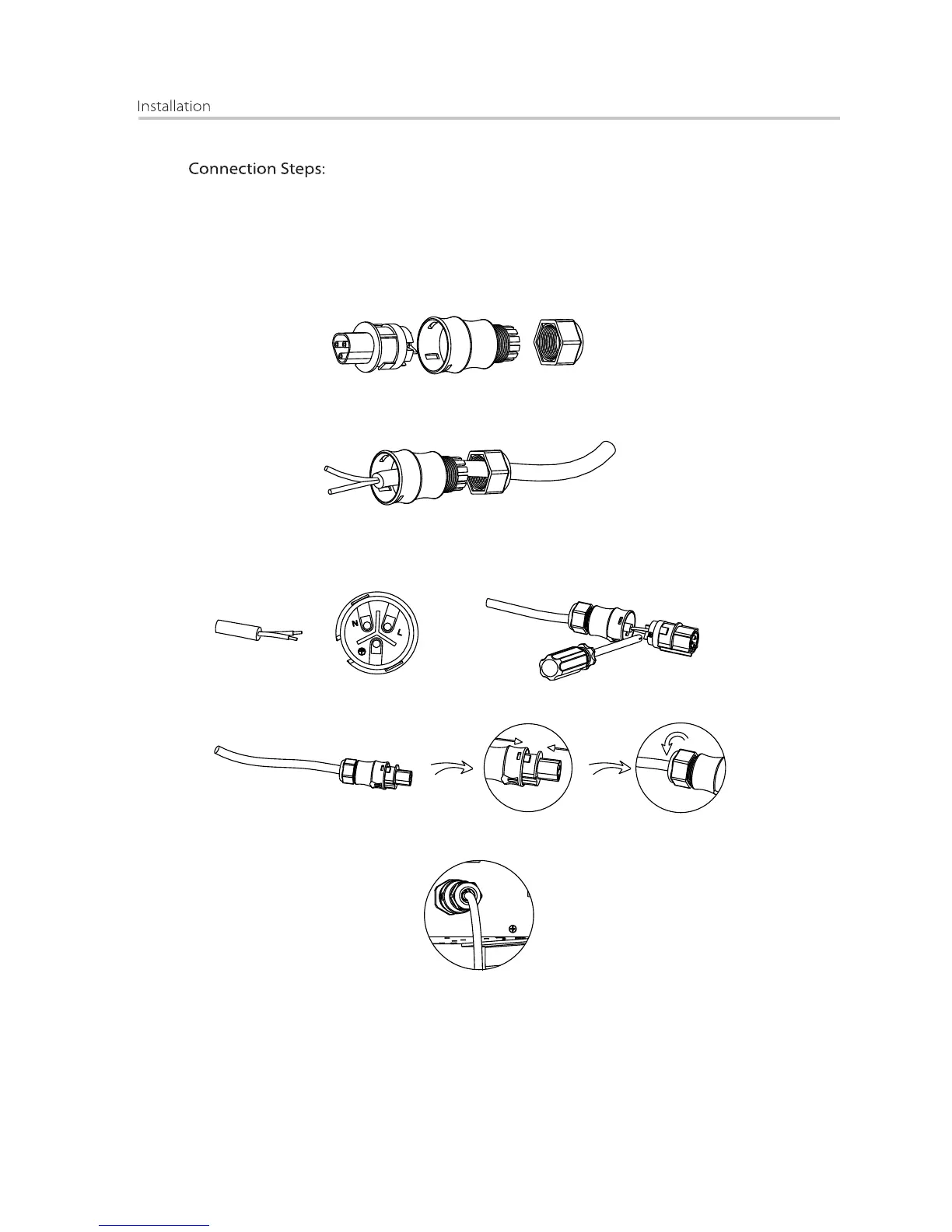

2.Separate the EPS plug into three parts as below.
a: Hold the middle part of the female insert,rotate the back shell to loosen it,
and datach it from female insert.
b:Remove the cable nut(with rubber insert) from the back shell.
3:Slide the cable through back shell and cable nut.(Here only needs two
cables,L and N.)
4: Insert the tripped end of each two wires(L and N) into the appropriate hole in
the female insert,and then tight each screw(to tight each wire in place).
1:For tripping the wires ,please refer to the steps of AC connection.
5.Screw down the threaded sleeve and thepressurescrew.
6.ConnecttheEPSplugtotheinverter.
EPS wiring diagram
32
The below diagram are for reference based on different local wiring rules, please
follow the local rules for the externel wiring to choose suitable wiring mode.
Diagram A : Neutral line of alternative supply must not be isolated or switched.
Diagram B: Neutral line of alternative supply can be isolated or switched.
